Product comparison · 2 network switches

Brainboxes Hard Industrial 16 Port 10/100 & 1SFP Ethernet Switch vs Brainboxes Hard Industrial

30specifications compared
3differ
27identical
2known for one product only

Key differences

Fast Ethernet (copper) ports quantity
- Hard Industrial 16 Port 10/100 & 1SFP Ethernet Switch:16
- Hard Industrial:14
Width
- Hard Industrial 16 Port 10/100 & 1SFP Ethernet Switch:108 mm
- Hard Industrial:180 mm

Side by side

Differences highlightedShow differences only

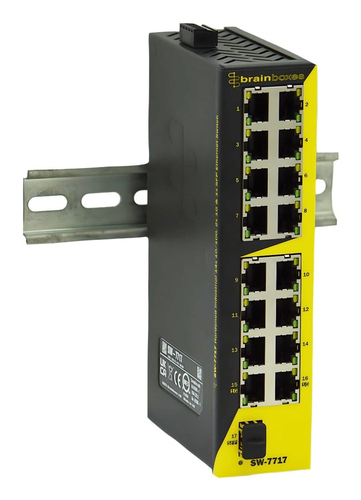

Comparison of SW-7617, SW-7717
32 specifications	A Brainboxes Hard Industrial 16 Port 10/100 & 1SFP Ethernet Switch Model SW-7617 View product	B Brainboxes Hard Industrial Model SW-7717 View product
Management featuresidentical
Switch type	Unmanaged	Unmanaged
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantity	16	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantityDiffers	16	14
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
SFP module slots quantity	1	1
Power connectorKnown for one	DC-in jack	Unknown — not stated by the source
Gigabit Ethernet (copper) ports quantityKnown for one	Unknown — not stated by the source	2
Optical fiberidentical
Fiber ethernet cabling technology	1000BASE-X	1000BASE-X
Designidentical
Form factor	DIN rail	DIN rail
Product colour	Black, Yellow	Black, Yellow
DIN rail mounting	Yes	Yes
Performanceidentical
Export Control Classification Number (ECCN)	5A991.b	5A991.b
Poweridentical
Power source	DC	DC
Redundant power supply (RPS) support	Yes	Yes
DC input voltage	5 - 30 V	5 - 30 V
Power consumption (max)	7.5 W	7.5 W
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)	No	No
Operational conditionsidentical
Operating temperature (T-T)	-40 - 80 °C	-40 - 80 °C
Storage temperature (T-T)	-40 - 80 °C	-40 - 80 °C
Weight & dimensions1 differ
WidthDiffers	108 mm	180 mm
Depth	108 mm	108 mm
Height	43 mm	43 mm
Weight	640 g	640 g
Packaging dataidentical
DIN rail included	Yes	Yes
Package width	140 mm	140 mm
Package depth	200 mm	200 mm
Package height	80 mm	80 mm
Package weight	750 g	750 g
Certificates1 differ
Compliance certificatesDiffers	CE, UKCA, Federal Communications Commission (FCC)	CE, Federal Communications Commission (FCC), UKCA
Logistics dataidentical
Harmonized System (HS) code	851762	851762

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
