Product comparison · 2 network switches

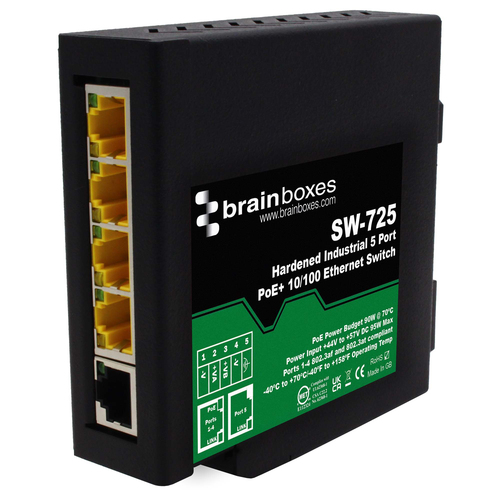

Brainboxes Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch vs Brainboxes Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch

28specifications compared
10differ
18identical
13known for one product only

Key differences

Form factor
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:Embedded
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:DIN rail
Product colour
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:Green
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:Black, Green
Power source
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:DC
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:DC/PoE
Width
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:116 mm
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:115 mm
Height
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:23 mm
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:28 mm
Weight
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:124 g
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:357 g
Package width
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:135 mm
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:160 mm
Package depth
- Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch:160 mm
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch:135 mm

Side by side

Differences highlightedShow differences only

Comparison of SW-125, SW-725
41 specifications	A Brainboxes Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch Model SW-125 View product	B Brainboxes Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch Model SW-725 View product
Management featuresidentical
Switch type	Unmanaged	Unmanaged
Switch layerKnown for one	L2	Unknown — not stated by the source
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity	5	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantityKnown for one	Unknown — not stated by the source	5
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
Networkidentical
Networking standardsKnown for one	Unknown — not stated by the source	IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	No	No
Ethernet LAN data ratesKnown for one	10,100 Mbit/s	Unknown — not stated by the source
Data transmissionidentical
MAC address table	1000 entries	1000 entries
Jumbo frames supportKnown for one	Unknown — not stated by the source	No
Packet buffer memoryKnown for one	Unknown — not stated by the source	0.448 MB
Design2 differ
Form factorDiffers	Embedded	DIN rail
Product colourDiffers	Green	Black, Green
DIN rail mountingKnown for one	Unknown — not stated by the source	Yes
Rack mountingKnown for one	No	Unknown — not stated by the source
Performanceidentical
Export Control Classification Number (ECCN)	5A991.b	5A991.b
Power1 differ
Power sourceDiffers	DC	DC/PoE
Redundant power supply (RPS) supportKnown for one	Unknown — not stated by the source	Yes
DC input voltage	44 - 57 V	44 - 57 V
Power consumption (max)	5.5 W	5.5 W
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet plus (PoE+) ports quantityKnown for one	Unknown — not stated by the source	5
Total Power over Ethernet (PoE) budget	90 W	90 W
Power over Ethernet (PoE) type supportedKnown for one	PoE+	Unknown — not stated by the source
Power over Ethernet (PoE) ports quantityKnown for one	5	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Weight & dimensions3 differ
WidthDiffers	116 mm	115 mm
Depth	99 mm	99 mm
HeightDiffers	23 mm	28 mm
WeightDiffers	124 g	357 g
Packaging data3 differ
Package widthDiffers	135 mm	160 mm
Package depthDiffers	160 mm	135 mm
Package height	49 mm	49 mm
Package weightDiffers	235 g	422 g
Certificates1 differ
Compliance certificatesDiffers	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus	CE, UKCA, RoHS, REACH, WEEE
Logistics dataidentical
Country of originKnown for one	Unknown — not stated by the source	United Kingdom
Harmonized System (HS) code	851762	851762

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
