Product comparison · 2 network switches

Acer QLogic 3810 vs Acer QLogic 5600Q

Add a product
  • 43specifications compared
  • 12differ
  • 31identical
  • 2known for one product only

Key differences

  • 10G support
    • No
    • Yes
  • Supported data transfer rates
    • 2/4 Gbit/s
    • 2 Gbit/s
  • Switching capacity
    • 136 Gbit/s
    • 238 Gbit/s
  • Maximum data transfer rate
    • 8 Gbit/s
    • 4 Gbit/s
  • Stackable
    • No
    • Yes
  • Power consumption (typical)
    • 70 W
    • 100 W
  • Latency
    • 0.2µs
    • 0.4µs
  • Dimensions (WxDxH)
    • 476 x 432 x 43.2 mm
    • 432 x 305 x 43.2 mm

Side by side

Differences highlightedShow differences only
45 specifications
A

Acer

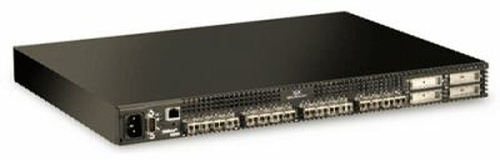

QLogic 3810View product
B

Acer

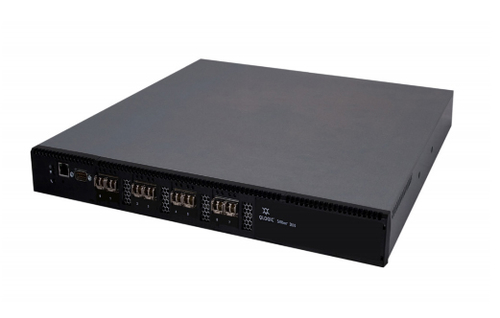

QLogic 5600QView product
Management featuresidentical
Switch typeManagedManaged
Web-based managementYesYes
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity11
Fiber ports quantity88
Fiber optic connectorSFPSFP
Console portRS-232RS-232
Network1 differ
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3zIEEE 802.3, IEEE 802.3u, IEEE 802.3z
10G supportDiffersNoYes
Copper ethernet cabling technology100BASE-T, 100BASE-TX, 10BASE-T100BASE-T, 100BASE-TX, 10BASE-T
Full duplexYesYes
Broadcast storm controlKnown for oneYes
Optical fiberidentical
Transmission distance (max)10 km10 km
Data transmission3 differ
Supported data transfer ratesDiffers2/4 Gbit/s2 Gbit/s
Switching capacityDiffers136 Gbit/s238 Gbit/s
Maximum data transfer rateDiffers8 Gbit/s4 Gbit/s
Securityidentical
SSH/SSL supportYesYes
Security algorithms802.1x RADIUS, SSH, SSL/TLS802.1x RADIUS, SSH, SSL/TLS
Protocolsidentical
Management protocolsSNMP, FDMISNMP, FDMI
Supported network protocolsIPv6, FTP, TFTP, SMI-SIPv6, FTP, TFTP, SMI-S
Design1 differ
Rack mountingYesYes
StackableDiffersNoYes
Form factor1U1U
Product colourBlackBlack
LED indicatorsYesYes
Power1 differ
Number of power supply units11
Input currentKnown for one1 A
Input voltage100 - 240 V100 - 240 V
Power consumption (typical)Differs70 W100 W
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)NoNo
Other features4 differ
LatencyDiffers0.2µs0.4µs
Dimensions (WxDxH)Differs476 x 432 x 43.2 mm432 x 305 x 43.2 mm
Connectivity technologyWiredWired
BandwidthDiffers1.7 Gbit/s0.8 Gbit/s
Input frequency50/60 Hz50/60 Hz
Networking featuresGigabit EthernetGigabit Ethernet
Security featuresDiffersFC-SP DH-CHAP, FC-GS-4 CTFC-SP, DH-CHAP, FC-GS-4 CT
Wi-FiNoNo
Operational conditionsidentical
Operating temperature (T-T)0 - 40 °C0 - 40 °C
Storage temperature (T-T)-40 - 70 °C-40 - 70 °C
Operating relative humidity (H-H)15 - 80%15 - 80%
Storage relative humidity (H-H)5 - 90%5 - 90%
Operating altitude0 - 3000 m0 - 3000 m
Non-operating altitude0 - 15240 m0 - 15240 m
Weight & dimensions1 differ
WeightDiffers6.35 kg4.08 kg
Certificates1 differ
CertificationDiffersRoHS, US, UL/cUL, EN, CE, TUV, GOST, DemkoRoHS, US, UL/cUL, EN, CB, CE, TUV, GOST, S Mark

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
