Product comparison · 2 network switch modules

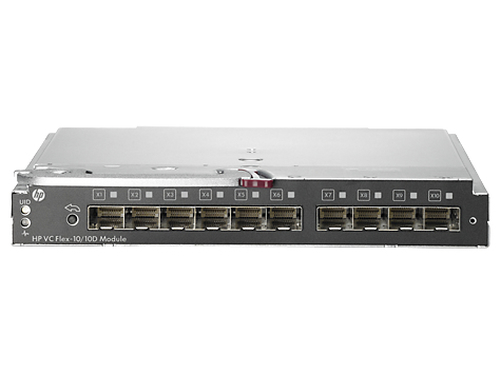

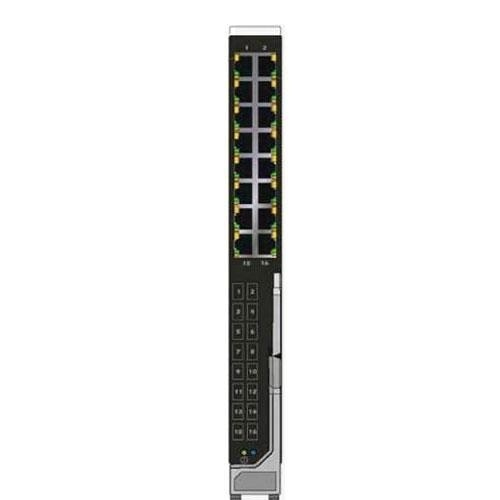

Dell 403-10291 network switch module Gigabit Ethernet vs HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem

5specifications compared
4differ
1identical
13known for one product only

Key differences

Ethernet interface type
- 403-10291 network switch module Gigabit Ethernet:Gigabit Ethernet
- Virtual Connect Flex-10/10D Module for c-Class BladeSystem:10 Gigabit
Weight
- 403-10291 network switch module Gigabit Ethernet:44.5 kg
- Virtual Connect Flex-10/10D Module for c-Class BladeSystem:2 kg

Side by side

Differences highlightedShow differences only

Comparison of 403-10291, Virtual Connect Flex-10/10D Module for c-Class BladeSystem
18 specifications	A Dell 403-10291 network switch module Gigabit Ethernet Model 403-10291 View product	B HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem View product
Network2 differ
Ethernet interface typeDiffers	Gigabit Ethernet	10 Gigabit
Ethernet LAN data ratesKnown for one	10,100,1000 Mbit/s	Unknown — not stated by the source
Copper ethernet cabling technologyKnown for one	1000BASE-T, 100BASE-T, 10BASE-T	Unknown — not stated by the source
Networking standardsDiffers	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ad
Full duplexKnown for one	Unknown — not stated by the source	Yes
Data transmissionidentical
Data transfer rateKnown for one	1 Gbit/s	Unknown — not stated by the source
Ports & interfacesidentical
Ethernet LAN (RJ-45) portsKnown for one	16	Unknown — not stated by the source
SFP+ module slots quantityKnown for one	Unknown — not stated by the source	10
Performance1 differ
CompatibilityDiffers	PowerEdge M1000E	BladeSystem c3000, BladeSystem c7000
Management platformKnown for one	Unknown — not stated by the source	SNMP 1, SNMP 2, CLI
Weight & dimensions1 differ
WidthKnown for one	447 mm	Unknown — not stated by the source
DepthKnown for one	754 mm	Unknown — not stated by the source
HeightKnown for one	440 mm	Unknown — not stated by the source
WeightDiffers	44.5 kg	2 kg
Dimensions (WxDxH)Known for one	Unknown — not stated by the source	270 x 352.6 x 120.7 mm
Ergonomicsidentical
Connectivity LEDs	Yes	Yes
Poweridentical
Power consumption (typical)Known for one	Unknown — not stated by the source	70 W
Other featuresidentical
SFP/SFP+ slots quantityKnown for one	Unknown — not stated by the source	10

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
