Product comparison · 2 network switch modules

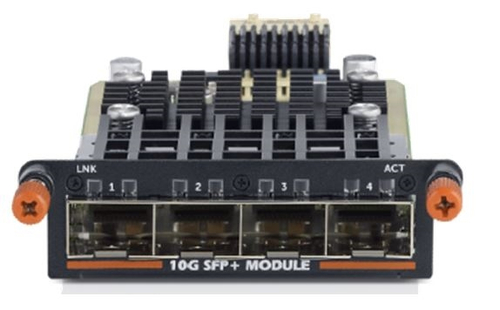

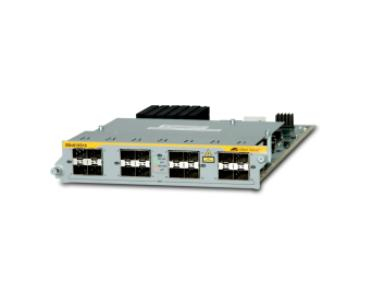

Allied Telesis AT-SBx81XS16 network switch module vs Dell 409-BBCY network switch module 10 Gigabit Ethernet

3specifications compared
2differ
1identical
30known for one product only

Key differences

Ethernet LAN data rates
- AT-SBx81XS16 network switch module:100,1000,10000 Mbit/s
- 409-BBCY network switch module 10 Gigabit Ethernet:10,100,1000 Mbit/s

Side by side

Differences highlightedShow differences only

Comparison of AT-SBx81XS16, 409-BBCY
33 specifications	A Allied Telesis AT-SBx81XS16 network switch module Model AT-SBx81XS16 View product	B Dell 409-BBCY network switch module 10 Gigabit Ethernet Model 409-BBCY View product
Network1 differ
Ethernet LAN data ratesDiffers	100,1000,10000 Mbit/s	10,100,1000 Mbit/s
Flow control supportKnown for one	Yes	Unknown — not stated by the source
Networking standardsKnown for one	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z	Unknown — not stated by the source
Jumbo frames supportKnown for one	Yes	Unknown — not stated by the source
Link aggregationKnown for one	Yes	Unknown — not stated by the source
Ethernet interface typeKnown for one	Unknown — not stated by the source	10 Gigabit Ethernet
Optical fiberidentical
Fiber optic connector	SFP+	SFP+
Ports & interfacesidentical
Fiber ports quantityKnown for one	16	Unknown — not stated by the source
SFP+ module slots quantityKnown for one	Unknown — not stated by the source	4
Performance1 differ
Quality of Service (QoS) supportKnown for one	Yes	Unknown — not stated by the source
Service levelKnown for one	3	Unknown — not stated by the source
Buffer size per portKnown for one	4 MB	Unknown — not stated by the source
Queues per portKnown for one	8	Unknown — not stated by the source
Access Control List (ACL)Known for one	Yes	Unknown — not stated by the source
Security algorithmsKnown for one	802.1x RADIUS, SSH-2	Unknown — not stated by the source
CompatibilityDiffers	Allied Telesis SwitchBlade x8100	Dell Networking N4032 - Dell Networking N4032F - Dell Networking N4064 - Dell Networking N4064F - PowerConnect 8100
Hot-Plug supportKnown for one	Unknown — not stated by the source	Yes
Poweridentical
Power consumption (typical)Known for one	52.2 W	Unknown — not stated by the source
Operational conditionsidentical
Operating altitudeKnown for one	0 - 3048 m	Unknown — not stated by the source
Operating relative humidity (H-H)Known for one	5 - 90%	Unknown — not stated by the source
Operating temperature (T-T)Known for one	0 - 40 °C	Unknown — not stated by the source
Storage relative humidity (H-H)Known for one	5 - 95%	Unknown — not stated by the source
Storage temperature (T-T)Known for one	-25 - 70 °C	Unknown — not stated by the source
Certificatesidentical
Electromagnetic compatibilityKnown for one	EN55022 class A, FCC class A, VCCI class A	Unknown — not stated by the source
SafetyKnown for one	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1	Unknown — not stated by the source
CertificationKnown for one	EN55024, EN61000-3 UL, cUL, TUV RoHS	Unknown — not stated by the source
Weight & dimensionsidentical
WidthKnown for one	207 mm	Unknown — not stated by the source
DepthKnown for one	313 mm	Unknown — not stated by the source
HeightKnown for one	41 mm	Unknown — not stated by the source
Dimensions (WxDxH)Known for one	207 x 313 x 41 mm	Unknown — not stated by the source
WeightKnown for one	1 kg	Unknown — not stated by the source
Logistics dataidentical
Country of originKnown for one	Indonesia	Unknown — not stated by the source
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	85176990

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
