Product comparison · 2 network switch modules

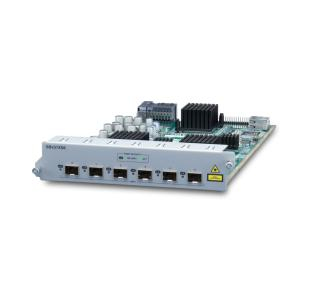

Allied Telesis AT-SBx31XS6 network switch module vs Allied Telesis AT-SBx81GP24 network switch module Gigabit Ethernet

19specifications compared
10differ
9identical
15known for one product only

Key differences

Ethernet LAN data rates
- AT-SBx31XS6 network switch module:10,100,1000,10000 Mbit/s
- AT-SBx81GP24 network switch module Gigabit Ethernet:10,100,1000 Mbit/s
Buffer size per port
- AT-SBx31XS6 network switch module:2 MB
- AT-SBx81GP24 network switch module Gigabit Ethernet:1.5 MB
Power consumption (typical)
- AT-SBx31XS6 network switch module:54.8 W
- AT-SBx81GP24 network switch module Gigabit Ethernet:34.4 W
Operating altitude
- AT-SBx31XS6 network switch module:0 - 3000 m
- AT-SBx81GP24 network switch module Gigabit Ethernet:0 - 3048 m
Dimensions (WxDxH)
- AT-SBx31XS6 network switch module:206.7 x 313.2 x 40.6 mm
- AT-SBx81GP24 network switch module Gigabit Ethernet:207 x 313 x 41 mm
Weight
- AT-SBx31XS6 network switch module:1.06 kg
- AT-SBx81GP24 network switch module Gigabit Ethernet:1.1 kg

Side by side

Differences highlightedShow differences only

Comparison of AT-SBx31XS6, AT-SBx81GP24
34 specifications	A Allied Telesis AT-SBx31XS6 network switch module Model AT-SBx31XS6 View product	B Allied Telesis AT-SBx81GP24 network switch module Gigabit Ethernet Model AT-SBx81GP24 View product
Network2 differ
Ethernet LAN data ratesDiffers	10,100,1000,10000 Mbit/s	10,100,1000 Mbit/s
Full duplexKnown for one	Yes	Unknown — not stated by the source
Flow control support	Yes	Yes
Auto MDIX IEEEKnown for one	Yes	Unknown — not stated by the source
Networking standardsDiffers	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Jumbo frames supportKnown for one	Yes	Unknown — not stated by the source
Link aggregationKnown for one	Yes	Unknown — not stated by the source
Ethernet interface typeKnown for one	Unknown — not stated by the source	Gigabit Ethernet
Copper ethernet cabling technologyKnown for one	Unknown — not stated by the source	10BASE-T, 100BASE-TX, 1000BASE-T
Optical fiberidentical
Fiber optic connectorKnown for one	SFP+	Unknown — not stated by the source
Data transmissionidentical
MAC address tableKnown for one	32000 entries	Unknown — not stated by the source
Number of VLANsKnown for one	4096	Unknown — not stated by the source
Ports & interfacesidentical
Fiber ports quantityKnown for one	6	Unknown — not stated by the source
Ethernet LAN (RJ-45) portsKnown for one	Unknown — not stated by the source	24
Performance2 differ
Quality of Service (QoS) support	Yes	Yes
Service level	3	3
Buffer size per portDiffers	2 MB	1.5 MB
Queues per port	8	8
Security algorithms	802.1x RADIUS, SSH-2	802.1x RADIUS, SSH-2
CompatibilityDiffers	Allied Telesis SwitchBlade x3112	Allied Telesis SwitchBlade x8100
Access Control List (ACL)Known for one	Unknown — not stated by the source	Yes
Power1 differ
Power consumption (typical)Differs	54.8 W	34.4 W
Power over Ethernet (PoE)Known for one	Unknown — not stated by the source	Yes
Operational conditions1 differ
Operating altitudeDiffers	0 - 3000 m	0 - 3048 m
Operating relative humidity (H-H)	5 - 90%	5 - 90%
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%	5 - 95%
Storage temperature (T-T)	-25 - 70 °C	-25 - 70 °C
Certificates2 differ
SafetyDiffers	CULUS, TUV, C-TICK, CE	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
CertificationDiffers	FCC Class A, EN55022 Class A, CISPR Class A, ICES 003 Class A EN60950-1 (TUV), UL60950-1 (CULUS), EN60825 EN55024 RoHS	EN55024, EN61000-3 UL, cUL, TUV RoHS
Electromagnetic compatibilityKnown for one	Unknown — not stated by the source	EN55022 class A, FCC class A, VCCI class A
Weight & dimensions2 differ
Dimensions (WxDxH)Differs	206.7 x 313.2 x 40.6 mm	207 x 313 x 41 mm
WeightDiffers	1.06 kg	1.1 kg
Logistics dataidentical
Country of originKnown for one	Unknown — not stated by the source	Indonesia

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
