Product comparison · 2 network media converters

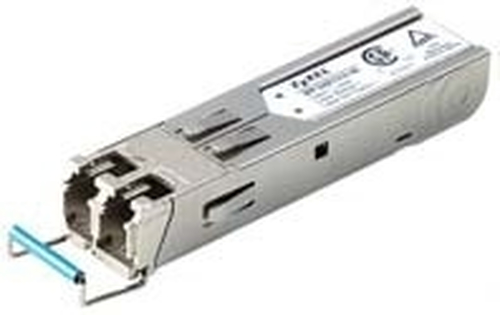

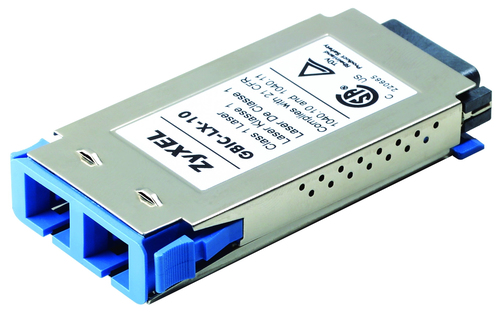

Zyxel 1000Base-LHX SFP Transceiver vs Zyxel GBIC-LX-10 1000Base-LX GBIC Transceiver

Key differences

Cabling technology
- 1000Base-LHX SFP Transceiver:1000Base-LHX
- GBIC-LX-10 1000Base-LX GBIC Transceiver:1000Base-LX
Maximum transfer distance
- 1000Base-LHX SFP Transceiver:40000 m
- GBIC-LX-10 1000Base-LX GBIC Transceiver:10000 m
Connector(s)
- 1000Base-LHX SFP Transceiver:LC
- GBIC-LX-10 1000Base-LX GBIC Transceiver:SC
Dimensions (WxDxH)
- 1000Base-LHX SFP Transceiver:56 x 13.4 x 12.46 mm
- GBIC-LX-10 1000Base-LX GBIC Transceiver:65 x 30 x 10 mm
Interface
- 1000Base-LHX SFP Transceiver:SFP
- GBIC-LX-10 1000Base-LX GBIC Transceiver:GBIC
Power requirements
- 1000Base-LHX SFP Transceiver:+3.3V
- GBIC-LX-10 1000Base-LX GBIC Transceiver:+5V; +3.3V
Fiber type
- 1000Base-LHX SFP Transceiver:SMF (9/10um)
- GBIC-LX-10 1000Base-LX GBIC Transceiver:62.5/50 µm

Differences highlightedShow differences only

Comparison of 1000Base-LHX SFP Transceiver, GBIC-LX-10 1000Base-LX GBIC Transceiver
15 specifications	A Zyxel 1000Base-LHX SFP Transceiver View product	B Zyxel GBIC-LX-10 1000Base-LX GBIC Transceiver View product
Network1 differ
Maximum data transfer rate	1000 Mbit/s	1000 Mbit/s
Cabling technologyDiffers	1000Base-LHX	1000Base-LX
Performance1 differ
Maximum transfer distanceDiffers	40000 m	10000 m
Wavelength	1310 nm	1310 nm
Featuresidentical
Compliance industry standards	IEEE 802.3z	IEEE 802.3z
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Certificatesidentical
Safety	Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11	Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11
Other features5 differ
Connector(s)Differs	LC	SC
Dimensions (WxDxH)Differs	56 x 13.4 x 12.46 mm	65 x 30 x 10 mm
Form factor	Plug-in	Plug-in
InterfaceDiffers	SFP	GBIC
Power requirementsDiffers	+3.3V	+5V; +3.3V
Fiber typeDiffers	SMF (9/10um)	62.5/50 µm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
