Product comparison · 2 network media converters

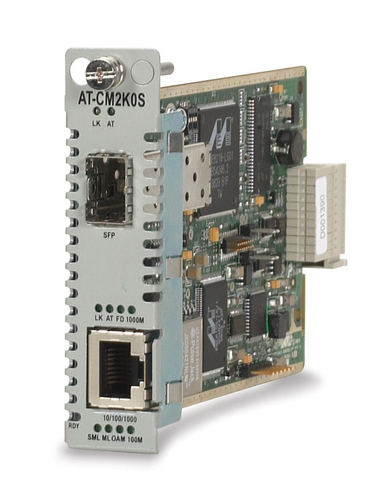

Allied Telesis 10/100/1000T to 1000X SFP Converteon Line Card vs D-Link DMC-920 network media converter 100 Mbit/s

5specifications compared
4differ
1identical
14known for one product only

Key differences

Power consumption (typical)
- 10/100/1000T to 1000X SFP Converteon Line Card:6.8 W
- DMC-920 network media converter 100 Mbit/s:7.2 W
Weight
- 10/100/1000T to 1000X SFP Converteon Line Card:540 g
- DMC-920 network media converter 100 Mbit/s:305 g
Storage temperature (T-T)
- 10/100/1000T to 1000X SFP Converteon Line Card:-25 - 70 °C
- DMC-920 network media converter 100 Mbit/s:-20 - 70 °C
Dimensions (WxDxH)
- 10/100/1000T to 1000X SFP Converteon Line Card:22 x 73 x 130 mm
- DMC-920 network media converter 100 Mbit/s:120 x 88 x 25 mm

Side by side

Differences highlightedShow differences only

Comparison of 10/100/1000T to 1000X SFP Converteon Line Card, DMC-920
19 specifications	A Allied Telesis 10/100/1000T to 1000X SFP Converteon Line Card View product	B D-Link DMC-920 network media converter 100 Mbit/s Model DMC-920 View product
Performanceidentical
Mean time between failures (MTBF)Known for one	880000 h	Unknown — not stated by the source
Featuresidentical
LED indicatorsKnown for one	Yes	Unknown — not stated by the source
Ports & interfacesidentical
Connectivity technologyKnown for one	Wired	Unknown — not stated by the source
Power1 differ
Power consumption (typical)Differs	6.8 W	7.2 W
Weight & dimensions1 differ
WeightDiffers	540 g	305 g
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)Differs	-25 - 70 °C	-20 - 70 °C
Operating relative humidity (H-H)Known for one	5 - 90%	Unknown — not stated by the source
Storage relative humidity (H-H)Known for one	5 - 95%	Unknown — not stated by the source
Operating altitudeKnown for one	0 - 3048 m	Unknown — not stated by the source
Certificatesidentical
SafetyKnown for one	UL60950-1 (cULUS), EN60950-1 (TUV)	Unknown — not stated by the source
CertificationKnown for one	EN55024	Unknown — not stated by the source
Other features1 differ
Connector(s)Known for one	RJ-45	Unknown — not stated by the source
Dimensions (WxDxH)Differs	22 x 73 x 130 mm	120 x 88 x 25 mm
InterfaceKnown for one	FO, Gigabit Ethernet	Unknown — not stated by the source
MAC address tableKnown for one	8000 entries	Unknown — not stated by the source
Electromagnetic emissionsKnown for one	FCC class A, EN55022 class A, VCCI class A, C-Tick, CE	Unknown — not stated by the source
Full duplexKnown for one	Unknown — not stated by the source	Yes
Networkidentical
Maximum data transfer rateKnown for one	Unknown — not stated by the source	100 Mbit/s

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
