Product comparison · 2 network extenders

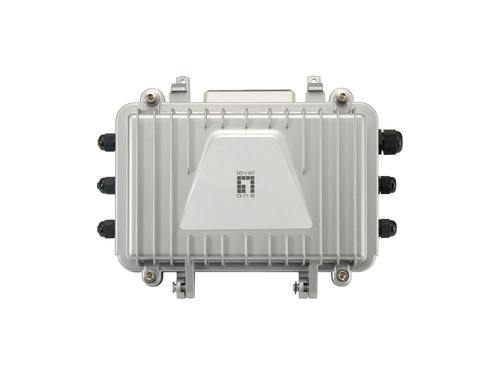

LevelOne PoE over Hybrid Cable Receiver, 1 PoE Output, Indoor/Outdoor vs LevelOne PoE over Hybrid Cable Receiver, 4 PoE Outputs, Indoor/Outdoor

38specifications compared
3differ
35identical
5known for one product only

Key differences

Ethernet LAN (RJ-45) ports
- PoE over Hybrid Cable Receiver, 1 PoE Output, Indoor/Outdoor:1
- PoE over Hybrid Cable Receiver, 4 PoE Outputs, Indoor/Outdoor:4
Power over Ethernet (PoE) ports quantity
- PoE over Hybrid Cable Receiver, 1 PoE Output, Indoor/Outdoor:1
- PoE over Hybrid Cable Receiver, 4 PoE Outputs, Indoor/Outdoor:4
Product colour
- PoE over Hybrid Cable Receiver, 1 PoE Output, Indoor/Outdoor:Black
- PoE over Hybrid Cable Receiver, 4 PoE Outputs, Indoor/Outdoor:Grey

Side by side

Differences highlightedShow differences only

Comparison of PFE-1011R, PFE-1014R
43 specifications	A LevelOne PoE over Hybrid Cable Receiver, 1 PoE Output, Indoor/Outdoor Model PFE-1011R View product	B LevelOne PoE over Hybrid Cable Receiver, 4 PoE Outputs, Indoor/Outdoor Model PFE-1014R View product
Performanceidentical
Type	Network receiver	Network receiver
Maximum transfer distance	2000 m	2000 m
Data transfer rate	100 Mbit/s	100 Mbit/s
Auto MDIX IEEE	Yes	Yes
Duplex system	Full, Half	Full, Half
Flow control supportKnown for one	Unknown — not stated by the source	Yes
International Protection (IP) code	IP66	IP66
MAC address table	1000 entries	1000 entries
Packet forwarding rate (10 Mbps)	14880 pps	14880 pps
Packet forwarding rate (100 Mbps)	148000 pps	148000 pps
Networkidentical
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ports & interfaces2 differ
Ethernet LAN (RJ-45) portsDiffers	1	4
Power over Ethernet (PoE) ports quantityDiffers	1	4
Fiber optic connector	LC	LC
Fiber ports quantity	1	1
Terminal block port	Yes	Yes
Design1 differ
Product colourDiffers	Black	Grey
Mounting type	Wall	Wall
LED indicators	LAN, PoE, Power	LAN, PoE, Power
Country of origin	Taiwan	Taiwan
Certification	CE/FCC	CE/FCC
Poweridentical
Power consumption (max)	60 W	60 W
Power consumption (typical)Known for one	Unknown — not stated by the source	20 W
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet (PoE) voltage rangeKnown for one	Unknown — not stated by the source	47 - 56 V
Output voltageKnown for one	56 V	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)	-40 - 60 °C	-40 - 60 °C
Storage temperature (T-T)	0 - 60 °C	0 - 60 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)	5 - 90%	5 - 90%
Weight & dimensionsidentical
Width	240 mm	240 mm
Depth	200 mm	200 mm
Height	72 mm	72 mm
Weight	1 kg	1 kg
Packaging contentidentical
Cables included	AC	AC
Quick start guide	Yes	Yes
Packaging dataidentical
Package type	Box	Box
Package width	250 mm	250 mm
Package depth	210 mm	210 mm
Package height	85 mm	85 mm
Package weight	200 g	200 g
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	85176990

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
