Product comparison · 2 network extenders

LevelOne PoE over Hybrid Cable Receiver, 4 PoE Outputs vs LevelOne Gigabit PoE Repeater, Cascadable, Indoor/Outdoor

26specifications compared
22differ
4identical
16known for one product only

Key differences

Type
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:Network receiver
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:Network repeater
Maximum transfer distance
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:2000 m
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:100 m
Data transfer rate
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:100 Mbit/s
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:1000 Mbit/s
Cabling technology
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:10/100Base-T(X)
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:4
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:3
Power over Ethernet (PoE) ports quantity
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:4
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:2
Product colour
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:Black
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:White
Mounting type
- PoE over Hybrid Cable Receiver, 4 PoE Outputs:Desk/Wall
- Gigabit PoE Repeater, Cascadable, Indoor/Outdoor:Wall

Side by side

Differences highlightedShow differences only

Comparison of PFE-1004R, POR-1220

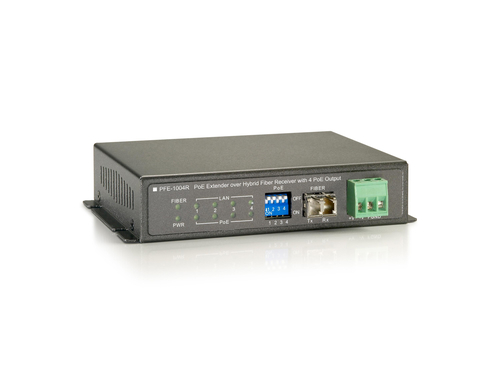

42 specifications	A LevelOne PoE over Hybrid Cable Receiver, 4 PoE Outputs Model PFE-1004R View product	B LevelOne Gigabit PoE Repeater, Cascadable, Indoor/Outdoor Model POR-1220 View product
Performance3 differ
TypeDiffers	Network receiver	Network repeater
Maximum transfer distanceDiffers	2000 m	100 m
Data transfer rateDiffers	100 Mbit/s	1000 Mbit/s
Auto MDIX IEEEKnown for one	Yes	Unknown — not stated by the source
Duplex systemKnown for one	Full, Half	Unknown — not stated by the source
International Protection (IP) codeKnown for one	IP66	Unknown — not stated by the source
MAC address tableKnown for one	1000 entries	Unknown — not stated by the source
Packet forwarding rate (10 Mbps)Known for one	14880 pps	Unknown — not stated by the source
Packet forwarding rate (100 Mbps)Known for one	148000 pps	Unknown — not stated by the source
Network2 differ
Cabling technologyDiffers	10/100Base-T(X)	10/100/1000Base-T(X)
Networking standardsDiffers	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ports & interfaces2 differ
Ethernet LAN (RJ-45) portsDiffers	4	3
Power over Ethernet (PoE) ports quantityDiffers	4	2
Fiber optic connectorKnown for one	LC	Unknown — not stated by the source
Fiber ports quantityKnown for one	1	Unknown — not stated by the source
Terminal block portKnown for one	Yes	Unknown — not stated by the source
Design3 differ
Product colourDiffers	Black	White
Mounting typeDiffers	Desk/Wall	Wall
LED indicatorsKnown for one	LAN, PoE, Power	Unknown — not stated by the source
Country of origin	Taiwan	Taiwan
CertificationDiffers	CE/FCC	FCC Part 15, CE, RoHS
Power1 differ
Power consumption (max)Differs	60 W	2.5 W
Output voltageKnown for one	56 V	Unknown — not stated by the source
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet (PoE) voltage rangeKnown for one	Unknown — not stated by the source	44 - 57 V
Operational conditions3 differ
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Storage temperature (T-T)Differs	0 - 60 °C	0 - 70 °C
Operating relative humidity (H-H)Differs	10 - 90%	5 - 95%
Storage relative humidity (H-H)Differs	5 - 90%	5 - 95%
Weight & dimensions4 differ
WidthDiffers	133 mm	200 mm
DepthDiffers	90 mm	110 mm
HeightDiffers	28 mm	240 mm
WeightDiffers	250 g	700 g
Packaging contentidentical
Quick start guide	Yes	Yes
Wall mounting kitKnown for one	Unknown — not stated by the source	Yes
Packaging data4 differ
Package typeKnown for one	Box	Unknown — not stated by the source
Package widthDiffers	222 mm	255 mm
Package depthDiffers	146 mm	110 mm
Package heightDiffers	78 mm	210 mm
Package weightDiffers	200 g	900 g
Certificatesidentical
Compliance certificatesKnown for one	Unknown — not stated by the source	RoHS
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	85176990

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
