Product comparison · 2 network extenders

LevelOne PoE over Hybrid Cable Receiver, 1 PoE Output vs LevelOne PoE over Hybrid Cable Transmitter

33specifications compared
2differ
31identical
13known for one product only

Key differences

LED indicators
- PoE over Hybrid Cable Receiver, 1 PoE Output:LAN, PoE, Power
- PoE over Hybrid Cable Transmitter:Alarm, LAN, PoE, Power

Side by side

Differences highlightedShow differences only

Comparison of PFE-1001R, PFE-1001T

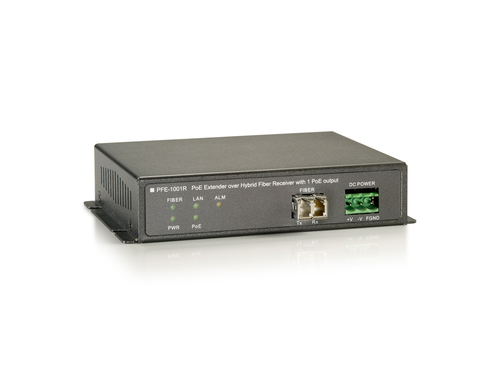

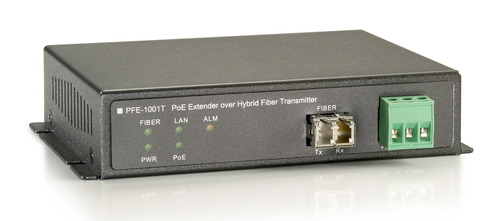

46 specifications	A LevelOne PoE over Hybrid Cable Receiver, 1 PoE Output Model PFE-1001R View product	B LevelOne PoE over Hybrid Cable Transmitter Model PFE-1001T View product
Performanceidentical
Type	Network receiver	Network receiver
Maximum transfer distance	2000 m	2000 m
Data transfer rate	100 Mbit/s	100 Mbit/s
Ethernet LAN data ratesKnown for one	Unknown — not stated by the source	10,100 Mbit/s
Auto MDIX IEEE	Yes	Yes
Duplex system	Full, Half	Full, Half
MAC address table	1000 entries	1000 entries
Packet forwarding rate (10 Mbps)	14880 pps	14880 pps
Packet forwarding rate (100 Mbps)	148000 pps	148000 pps
International Protection (IP) codeKnown for one	IP66	Unknown — not stated by the source
Network1 differ
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Networking standardsDiffers	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u	IEEE 802.3, IEEE 802.3u
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
DC-in jackKnown for one	Unknown — not stated by the source	Yes
Fiber optic connector	LC	LC
Terminal block port	Yes	Yes
Power over Ethernet (PoE) ports quantityKnown for one	1	Unknown — not stated by the source
Fiber ports quantityKnown for one	1	Unknown — not stated by the source
Design1 differ
Product colour	Black	Black
Mounting type	Desk/Wall	Desk/Wall
LED indicatorsDiffers	LAN, PoE, Power	Alarm, LAN, PoE, Power
Country of origin	Taiwan	Taiwan
Certification	CE/FCC	CE/FCC
Poweridentical
AC input voltageKnown for one	Unknown — not stated by the source	100-240 V
AC input frequencyKnown for one	Unknown — not stated by the source	50 - 60 Hz
Power consumption (typical)Known for one	Unknown — not stated by the source	65 W
Power over Ethernet (PoE)	Yes	Yes
Power consumption (max)Known for one	60 W	Unknown — not stated by the source
Output voltageKnown for one	56 V	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Storage temperature (T-T)	0 - 60 °C	0 - 60 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)	5 - 90%	5 - 90%
Weight & dimensionsidentical
Width	133 mm	133 mm
Depth	90 mm	90 mm
Height	28 mm	28 mm
Weight	250 g	250 g
Packaging contentidentical
AC adapter includedKnown for one	Unknown — not stated by the source	Yes
Cables includedKnown for one	Unknown — not stated by the source	AC
Quick start guide	Yes	Yes
Packaging dataidentical
Package type	Box	Box
Package width	222 mm	222 mm
Package depth	146 mm	146 mm
Package height	78 mm	78 mm
Package weight	200 g	200 g
Logistics dataidentical
Harmonized System (HS) codeKnown for one	85176990	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
