Product comparison · 2 network cards

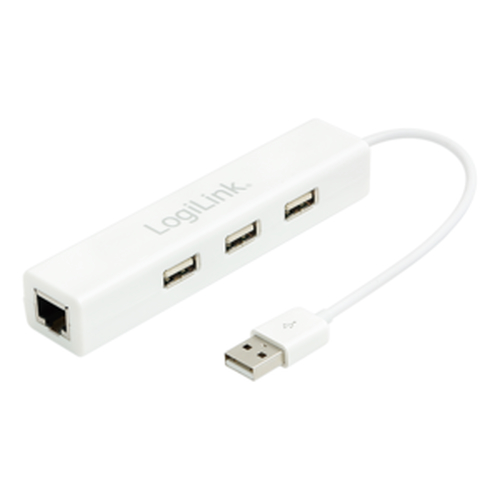

LogiLink UA0174A network card Ethernet 100 Mbit/s vs LogiLink WL0225 network card WLAN 433 Mbit/s

16specifications compared
12differ
4identical
26known for one product only

Key differences

Connectivity technology
- UA0174A network card Ethernet 100 Mbit/s:Wired
- WL0225 network card WLAN 433 Mbit/s:Wireless
Interface
- UA0174A network card Ethernet 100 Mbit/s:Ethernet
- WL0225 network card WLAN 433 Mbit/s:WLAN
Maximum data transfer rate
- UA0174A network card Ethernet 100 Mbit/s:100 Mbit/s
- WL0225 network card WLAN 433 Mbit/s:433 Mbit/s
Wi-Fi
- UA0174A network card Ethernet 100 Mbit/s:No
- WL0225 network card WLAN 433 Mbit/s:Yes
Product colour
- UA0174A network card Ethernet 100 Mbit/s:White
- WL0225 network card WLAN 433 Mbit/s:Black
Chipset
- UA0174A network card Ethernet 100 Mbit/s:AX88772C
- WL0225 network card WLAN 433 Mbit/s:MT7610
Package depth
- UA0174A network card Ethernet 100 Mbit/s:190 mm
- WL0225 network card WLAN 433 Mbit/s:20 mm
Package height
- UA0174A network card Ethernet 100 Mbit/s:10 mm
- WL0225 network card WLAN 433 Mbit/s:181 mm

Side by side

Differences highlightedShow differences only

Comparison of UA0174A, WL0225
42 specifications	A LogiLink UA0174A network card Ethernet 100 Mbit/s Model UA0174A View product	B LogiLink WL0225 network card WLAN 433 Mbit/s Model WL0225 View product
Ports & interfaces2 differ
Connectivity technologyDiffers	Wired	Wireless
Host interface	USB	USB
InterfaceDiffers	Ethernet	WLAN
Ethernet LAN (RJ-45) portsKnown for one	1	Unknown — not stated by the source
USB ports quantityKnown for one	3	Unknown — not stated by the source
USB versionKnown for one	2.0	Unknown — not stated by the source
Network3 differ
Maximum data transfer rateDiffers	100 Mbit/s	433 Mbit/s
Networking standardsDiffers	IEEE 802.3, IEEE 802.3u, IEEE 802.3x	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LANKnown for one	Yes	Unknown — not stated by the source
Ethernet LAN data ratesKnown for one	10,100 Mbit/s	Unknown — not stated by the source
Cabling technologyKnown for one	10/100BaseT(X)	Unknown — not stated by the source
Wi-FiDiffers	No	Yes
Full duplexKnown for one	Yes	Unknown — not stated by the source
Top Wi-Fi standardKnown for one	Unknown — not stated by the source	Wi-Fi 5 (802.11ac)
Wi-Fi standardsKnown for one	Unknown — not stated by the source	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supportedKnown for one	Unknown — not stated by the source	1,2,5.5,6,9,11,12,18,24,36,48,54,108,150,270,300,433 Mbit/s
Security algorithmsKnown for one	Unknown — not stated by the source	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2
BandwidthKnown for one	Unknown — not stated by the source	2.4 GHz
Design2 differ
Internal	No	No
Product colourDiffers	White	Black
ChipsetDiffers	AX88772C	MT7610
LED indicatorsKnown for one	Yes	Unknown — not stated by the source
Poweridentical
USB poweredKnown for one	Yes	Unknown — not stated by the source
System requirements2 differ
Windows operating systems supportedDiffers	Yes	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista
Mac operating systems supportedDiffers	Yes	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedKnown for one	Yes	Unknown — not stated by the source
Packaging data3 differ
AC adapter includedKnown for one	No	Unknown — not stated by the source
Quantity per packKnown for one	1 pc(s)	Unknown — not stated by the source
Package width	120 mm	120 mm
Package depthDiffers	190 mm	20 mm
Package heightDiffers	10 mm	181 mm
Package weightDiffers	80 g	46 g
Drivers includedKnown for one	Unknown — not stated by the source	Yes
Packaging contentidentical
Manual	Yes	Yes
Technical detailsidentical
Compliance certificatesKnown for one	RoHS	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) codeKnown for one	85176990	Unknown — not stated by the source
Other featuresidentical
Flow control supportKnown for one	Yes	Unknown — not stated by the source
Transmit power rangeKnown for one	Unknown — not stated by the source	14 - 18 dBmW
Weight & dimensionsidentical
WidthKnown for one	Unknown — not stated by the source	25 mm
DepthKnown for one	Unknown — not stated by the source	80 mm
HeightKnown for one	Unknown — not stated by the source	10 mm
WeightKnown for one	Unknown — not stated by the source	16 g

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
