Product comparison · 2 network cards

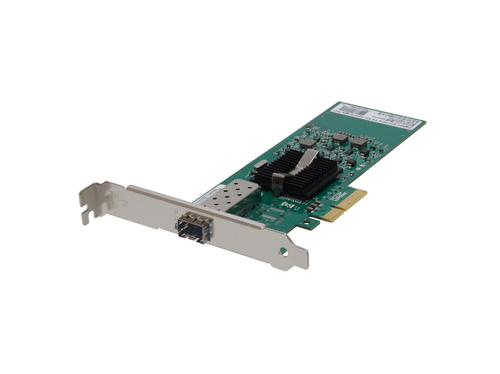

LevelOne Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP vs LevelOne Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP

33specifications compared
10differ
23identical
6known for one product only

Key differences

Fiber ports quantity
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:1
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:4
PCI version
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:2.0
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:2.1
Operating temperature (T-T)
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:0 - 45 °C
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:0 - 55 °C
Storage temperature (T-T)
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:-10 - 70 °C
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:-40 - 70 °C
Width
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:160 mm
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:150 mm
Depth
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:68 mm
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:69 mm
Weight
- Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP:80 g
- Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP:100 g

Side by side

Differences highlightedShow differences only

Comparison of GNC-0120, GNC-0124
39 specifications	A LevelOne Gigabit Fiber PCIe Network Card, PCIe 4X, 1 x SFP Model GNC-0120 View product	B LevelOne Gigabit Fiber PCIe Network Card, PCIe 4X, 4 x SFP Model GNC-0124 View product
Ports & interfaces2 differ
Connectivity technology	Wired	Wired
Host interface	PCI Express	PCI Express
Interface	Fiber	Fiber
Fiber optic connector	SFP	SFP
Fiber ports quantityDiffers	1	4
PCI versionDiffers	2.0	2.1
Network1 differ
Maximum data transfer rateKnown for one	Unknown — not stated by the source	1000 Mbit/s
Networking standardsDiffers	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad	IEEE 1588, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX	1000BASE‑LX, 1000BASE‑SX
Wake-on-LAN ready	Yes	Yes
Full duplexKnown for one	Unknown — not stated by the source	Yes
Jumbo frames support	Yes	Yes
Designidentical
Internal	Yes	Yes
Product colour	Aluminium	Aluminium
LED indicators	Activity, Link	Activity, Link
Country of origin	China	China
System requirements2 differ
Windows operating systems supportedDiffers	Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64,	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win
Other operating systems supportedKnown for one	Unknown — not stated by the source	DOS
Server operating systems supportedDiffers	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 45 °C	0 - 55 °C
Storage temperature (T-T)Differs	-10 - 70 °C	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Storage relative humidity (H-H)	5 - 95%	5 - 95%
Weight & dimensions3 differ
WidthDiffers	160 mm	150 mm
DepthDiffers	68 mm	69 mm
Height	17 mm	17 mm
WeightDiffers	80 g	100 g
Packaging dataidentical
Quantity per pack	1 pc(s)	1 pc(s)
Package width	145 mm	145 mm
Package depth	220 mm	220 mm
Package height	30 mm	30 mm
Package weight	62 g	62 g
Packaging contentidentical
Mounting brackets included	Yes	Yes
Manual	Yes	Yes
Other featuresidentical
Quick start guide	Yes	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes	Yes
PCI-SIG* SR-IOV CapableKnown for one	Unknown — not stated by the source	Yes
Power supplyKnown for one	2.2 W	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) codeKnown for one	85176990	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
