Product comparison · 2 network cards

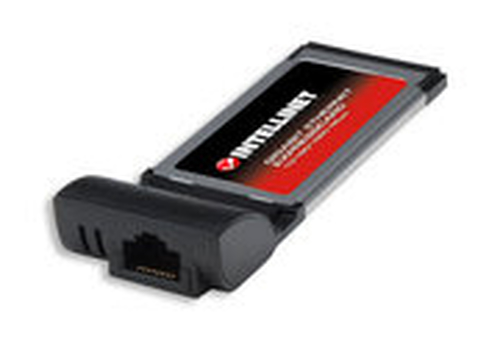

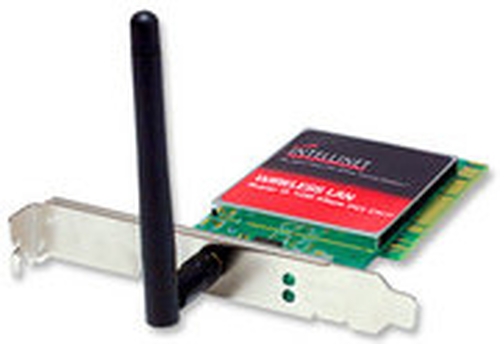

Intellinet Gigabit Ethernet ExpressCard vs Intellinet WLAN Super G PCI

11specifications compared
8differ
3identical
25known for one product only

Key differences

Connectivity technology
- Gigabit Ethernet ExpressCard:Wired
- WLAN Super G PCI:Wireless
Interface
- Gigabit Ethernet ExpressCard:USB
- WLAN Super G PCI:WLAN
Maximum data transfer rate
- Gigabit Ethernet ExpressCard:1000 Mbit/s
- WLAN Super G PCI:54 Mbit/s
Product colour
- Gigabit Ethernet ExpressCard:Black
- WLAN Super G PCI:Green, Silver
Operating temperature (T-T)
- Gigabit Ethernet ExpressCard:0 - 60 °C
- WLAN Super G PCI:0 - 40 °C
Storage temperature (T-T)
- Gigabit Ethernet ExpressCard:-20 - 90 °C
- WLAN Super G PCI:-20 - 65 °C

Side by side

Differences highlightedShow differences only

Comparison of Gigabit Ethernet ExpressCard, WLAN Super G PCI
36 specifications	A Intellinet Gigabit Ethernet ExpressCard View product	B Intellinet WLAN Super G PCI View product
Ports & interfaces2 differ
Connectivity technologyDiffers	Wired	Wireless
Host interfaceKnown for one	Unknown — not stated by the source	PCI
InterfaceDiffers	USB	WLAN
Ethernet LAN (RJ-45) portsKnown for one	1	Unknown — not stated by the source
Network2 differ
Maximum data transfer rateDiffers	1000 Mbit/s	54 Mbit/s
Networking standardsDiffers	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x	IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Wi-FiKnown for one	Unknown — not stated by the source	Yes
Wi-Fi bandKnown for one	Unknown — not stated by the source	Single-band (2.4 GHz)
Top Wi-Fi standardKnown for one	Unknown — not stated by the source	802.11g
Wi-Fi standardsKnown for one	Unknown — not stated by the source	802.11b, 802.11g
ModulationKnown for one	Unknown — not stated by the source	DBPSK, DQPSK, OFDM
Security algorithmsKnown for one	Unknown — not stated by the source	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA
Maximum indoor rangeKnown for one	Unknown — not stated by the source	100 m
Maximum outdoor rangeKnown for one	Unknown — not stated by the source	400 m
Ethernet LANKnown for one	Yes	Unknown — not stated by the source
Cabling technologyKnown for one	10/100/1000BaseT(X)	Unknown — not stated by the source
Design1 differ
Internal	Yes	Yes
Component forKnown for one	Unknown — not stated by the source	PC
Product colourDiffers	Black	Green, Silver
System requirements1 differ
Compatible operating systemsKnown for one	Unknown — not stated by the source	Windows 2000/Me/XP
Windows operating systems supportedDiffers	Yes	Windows 2000, Windows 2000 Professional, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 60 °C	0 - 40 °C
Storage temperature (T-T)Differs	-20 - 90 °C	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Other featuresidentical
GainKnown for one	Unknown — not stated by the source	1 dBi
Link/Act LED	Yes	Yes
Power LEDKnown for one	Unknown — not stated by the source	Yes
Supported data transfer ratesKnown for one	Unknown — not stated by the source	11 Mbit/s
Connector(s)Known for one	1	Unknown — not stated by the source
Data transfer rateKnown for one	1 Gbit/s	Unknown — not stated by the source
Operating temperature (T-T)Known for one	32 - 140 °F	Unknown — not stated by the source
Ports quantityKnown for one	1	Unknown — not stated by the source
Weight & dimensionsidentical
WidthKnown for one	34 mm	Unknown — not stated by the source
DepthKnown for one	108 mm	Unknown — not stated by the source
HeightKnown for one	15 mm	Unknown — not stated by the source
WeightKnown for one	25 g	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
