Product comparison · 2 network cards

Intellinet Extended Range Wireless G USB vs Intellinet MIMO Wireless Turbo G PCI Card

Add a product
  • 22specifications compared
  • 12differ
  • 10identical
  • 18known for one product only

Key differences

  • Host interface
    • USB
    • PCI
  • Interface
    • WLAN
    • RF Wireless
  • Frequency range
    • 2.412 - 2.484 GHz
    • 2.4 - 2.4835 GHz
  • Internal
    • No
    • Yes
  • Certification
    • FCC, CE
    • FCC, CE, C-Tick
  • Width
    • 116 mm
    • 130 mm
  • Depth
    • 70 mm
    • 121 mm
  • Height
    • 15 mm
    • 19 mm

Side by side

Differences highlightedShow differences only
40 specifications
A

Intellinet

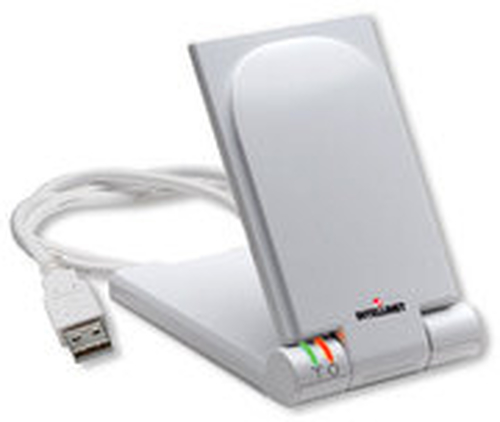

Extended Range Wireless G USBView product
B

Intellinet

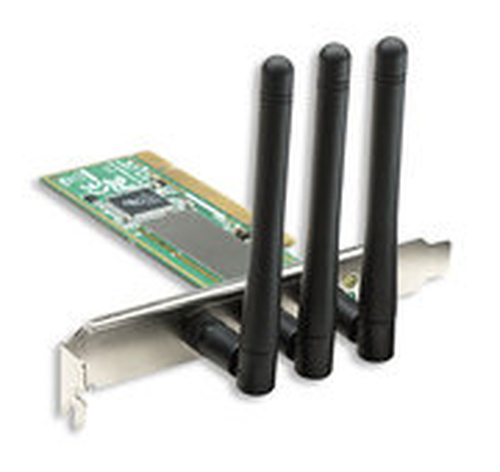

MIMO Wireless Turbo G PCI CardView product
Ports & interfaces2 differ
Connectivity technologyWirelessWireless
Host interfaceDiffersUSBPCI
InterfaceDiffersWLANRF Wireless
Network3 differ
Maximum data transfer rate54 Mbit/s54 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11gIEEE 802.11b, IEEE 802.11g
Wi-FiYesYes
Wi-Fi bandSingle-band (2.4 GHz)Single-band (2.4 GHz)
Frequency rangeDiffers2.412 - 2.484 GHz2.4 - 2.4835 GHz
Top Wi-Fi standard802.11g802.11g
Wi-Fi standards802.11b, 802.11g802.11b, 802.11g
WLAN data transfer rates supportedDiffers1,5.5,6,9,11,12,18,24,36,48,54 Mbit/s1,2,5.5,6,9,11,12,18,24,36,48,54 Mbit/s
Modulation16-QAM, 64-QAM, BPSK, OFDM, QPSK16-QAM, 64-QAM, BPSK, OFDM, QPSK
Security algorithmsDiffers128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-AES, WPA-TKIP128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-TKIP, WPA2
Maximum operating distanceKnown for one500 m
Maximum indoor rangeKnown for one100 m
Maximum outdoor rangeKnown for one500 m
Design2 differ
InternalDiffersNoYes
Component forKnown for onePC
Antenna connector typeKnown for oneRP-SMA
ChipsetKnown for oneRalink RT2600
LED indicatorsKnown for oneYes
Receiver sensitivityKnown for one54 Mbps OFDM, 10% PER, -79 dBm 11 Mbps CCK, 8% PER, -90 dBm 11 Mbps BPSK, 8% PER, -95 dBm
CertificationDiffersFCC, CEFCC, CE, C-Tick
Product colourKnown for oneWhite
System requirements1 differ
Compatible operating systemsDiffersWindows 98 Windows 2000 Windows ME Windows XPWindows 98SE Windows ME Windows 2000 Windows XP (32/64-bit) Mac OS Linux OS
Windows operating systems supportedKnown for oneYes
Mac operating systems supportedKnown for oneYes
Linux operating systems supportedKnown for oneYes
Operational conditionsidentical
Operating temperature (T-T)0 - 55 °C0 - 55 °C
Operating relative humidity (H-H)0 - 95%0 - 95%
Weight & dimensions4 differ
WidthDiffers116 mm130 mm
DepthDiffers70 mm121 mm
HeightDiffers15 mm19 mm
WeightDiffers87 g90 g
Other featuresidentical
Link/Act LEDKnown for oneYes
Operating temperature (T-T)Known for one32 - 131 °F
Wireless connectionKnown for oneYes
GainKnown for one6 dBi
Quick start guideKnown for oneYes
Poweridentical
USB poweredKnown for oneYes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
