Product comparison · 2 network antennas

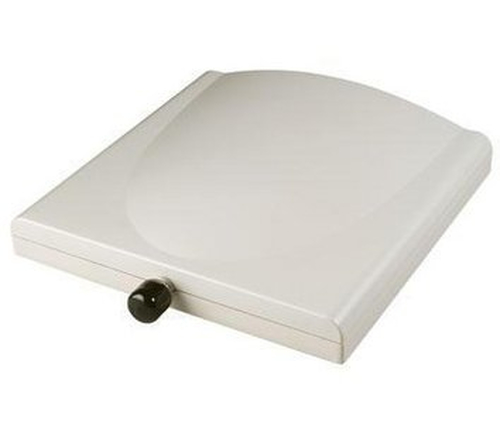

Zyxel EXT 105 vs Zyxel EXT 114

Key differences

Differences highlightedShow differences only

Comparison of EXT 105, EXT 114
16 specifications	A Zyxel EXT 105 View product	B Zyxel EXT 114 View product
Performance1 differ
Antenna gain level (max)Differs	5 dBi	14 dBi
Frequency band	2.4 - 2.5 GHz	2.4 - 2.5 GHz
Impedance	50 Ω	50 Ω
Features4 differ
Antenna typeDiffers	Omni-directional antenna	Directional antenna
Antenna connector typeDiffers	RP-SMA	N-type
Connector gender	Male	Male
Polarization	Vertical polarization	Vertical polarization
Voltage Standing Wave Ratio (VSWR)Differs	2	1.5
Product colourDiffers	Black	White
Cable lengthKnown for one	1 m	Unknown — not stated by the source
PurposeKnown for one	Indoor	Unknown — not stated by the source
Operational conditions1 differ
Operating temperature (T-T)Differs	-10 - 55 °C	-40 - 80 °C
Weight & dimensions2 differ
HeightDiffers	236 mm	200 mm
WeightDiffers	158 g	407 g
WidthKnown for one	Unknown — not stated by the source	200 mm
DepthKnown for one	Unknown — not stated by the source	50 mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
