Product comparison · 2 network antennas

TP-Link 2.4GHz 24dBi 2×2 MIMO Dish Antenna vs TP-Link 5GHz 19dBi 2x2 MIMO Sector Antenna

Add a product
  • 20specifications compared
  • 13differ
  • 7identical
  • 4known for one product only

Key differences

  • Antenna gain level (max)
    • 24 dBi
    • 19 dBi
  • Frequency band
    • 2.3 - 2.7 GHz
    • 5 - 6 GHz
  • Gain
    • 24 dBi
    • 19 dBi
  • Horizontal beam width
    • 6°
    • 120°
  • Vertical beam width
    • 6°
    • 120°
  • Compliance certificates
    • RoHS
    • RoHS, WEEE
  • Width
    • 650 mm
    • 700 mm
  • Depth
    • 650 mm
    • 133 mm

Side by side

Differences highlightedShow differences only
24 specifications
A

TP-Link

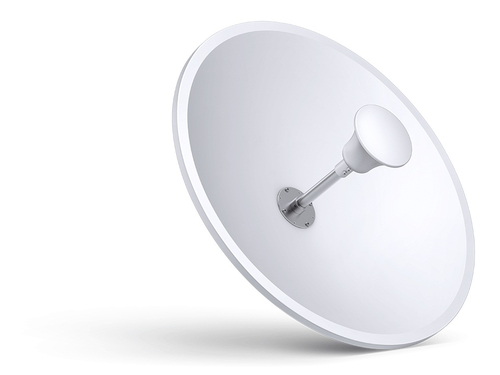

2.4GHz 24dBi 2×2 MIMO Dish Antenna

Model TL-ANT2424MD

View product
B

TP-Link

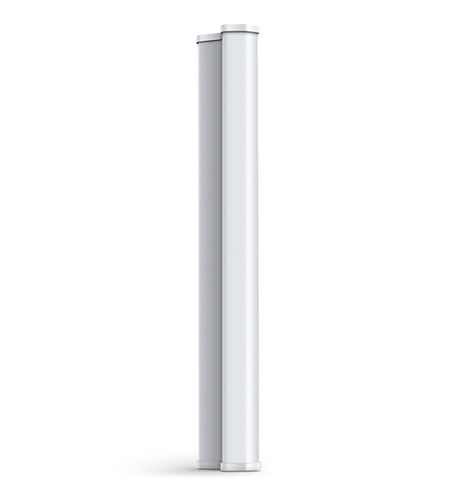

5GHz 19dBi 2x2 MIMO Sector Antenna

Model TL-ANT5819MS

View product
Performance5 differ
Antenna gain level (max)Differs24 dBi19 dBi
Frequency bandDiffers2.3 - 2.7 GHz5 - 6 GHz
GainDiffers24 dBi19 dBi
Impedance50 Ω50 Ω
Horizontal beam widthDiffers6°120°
Vertical beam widthDiffers6°120°
Features1 differ
Antenna typeKnown for oneDirectional antenna
Antenna connector typeRP-SMARP-SMA
PolarizationDiffersHorizontal/Vertical polarizationDual polarization
Voltage Standing Wave Ratio (VSWR)1.81.8
Product colourWhiteWhite
MountingPolePole
PurposeKnown for oneOutdoor
Certificates1 differ
Compliance certificatesDiffersRoHSRoHS, WEEE
CertificationWEEEWEEE
Weight & dimensions3 differ
WidthDiffers650 mm700 mm
DepthDiffers650 mm133 mm
HeightDiffers360 mm57 mm
Packaging data3 differ
Package widthDiffers790 mm1030 mm
Package depthDiffers710 mm185 mm
Package heightDiffers200 mm140 mm
Package weightKnown for one8.9 kg
Packaging contentidentical
Quantity per pack1 pc(s)1 pc(s)
Quick installation guideKnown for oneYes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
