Product comparison · 2 network antennas

TP-Link 2.4G 15dBi 2x2 MIMO Sector Antenna vs TP-Link 2.4GHz 24dBi 2×2 MIMO Dish Antenna

Add a product
  • 22specifications compared
  • 13differ
  • 9identical
  • 5known for one product only

Key differences

  • Antenna gain level (max)
    • 15 dBi
    • 24 dBi
  • Gain
    • 15 dBi
    • 24 dBi
  • Horizontal beam width
    • 120°
    • 6°
  • Vertical beam width
    • 120°
    • 6°
  • Antenna type
    • Sector antenna
    • Directional antenna
  • Width
    • 700 mm
    • 650 mm
  • Depth
    • 133 mm
    • 650 mm
  • Height
    • 57 mm
    • 360 mm

Side by side

Differences highlightedShow differences only
27 specifications
A

TP-Link

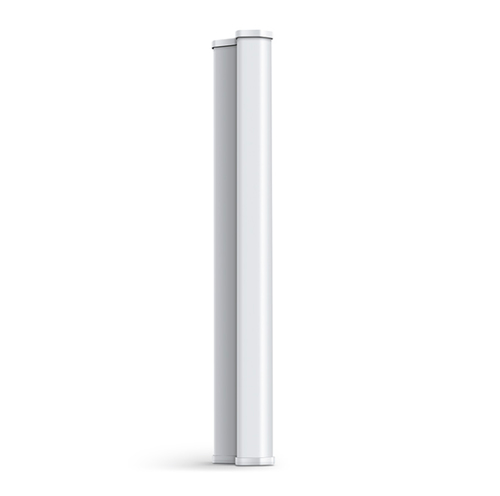

2.4G 15dBi 2x2 MIMO Sector Antenna

Model TL-ANT2415MS

View product
B

TP-Link

2.4GHz 24dBi 2×2 MIMO Dish Antenna

Model TL-ANT2424MD

View product
Performance4 differ
Antenna gain level (max)Differs15 dBi24 dBi
Frequency band2.3 - 2.7 GHz2.3 - 2.7 GHz
GainDiffers15 dBi24 dBi
Impedance50 Ω50 Ω
Horizontal beam widthDiffers120°6°
Vertical beam widthDiffers120°6°
Features2 differ
Antenna typeDiffersSector antennaDirectional antenna
Antenna connector typeRP-SMARP-SMA
PolarizationDiffersDual polarizationHorizontal/Vertical polarization
Voltage Standing Wave Ratio (VSWR)1.81.8
Product colourWhiteWhite
Survival wind speedKnown for one241 km/h
DowntiltKnown for one0°
Front to back ratioKnown for one25 dB
MountingPolePole
PurposeKnown for oneOutdoor
Certificatesidentical
Compliance certificatesRoHSRoHS
CertificationWEEEWEEE
Weight & dimensions3 differ
WidthDiffers700 mm650 mm
DepthDiffers133 mm650 mm
HeightDiffers57 mm360 mm
Packaging data4 differ
Package widthDiffers185 mm790 mm
Package depthDiffers140 mm710 mm
Package heightDiffers1030 mm200 mm
Package weightDiffers3.55 kg8.9 kg
Packaging contentidentical
Quantity per pack1 pc(s)1 pc(s)
Quick installation guideKnown for oneYes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
