Product comparison · 2 nas & storage servers

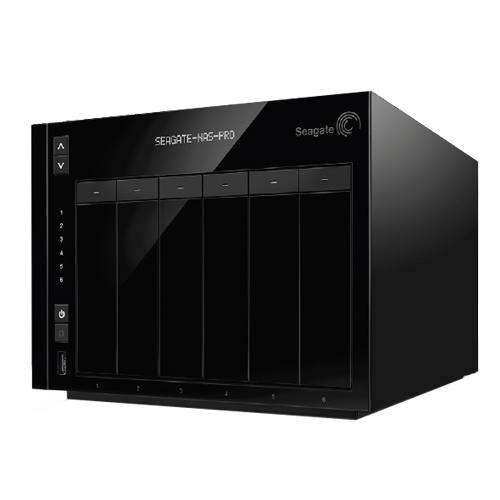

Seagate STDF12000200 NAS/storage server Mini Tower vs Seagate STDF200 NAS/storage server Mini Tower

56specifications compared
2differ
54identical
2known for one product only

Key differences

Total installed storage capacity
- STDF12000200 NAS/storage server Mini Tower:12 TB
- STDF200 NAS/storage server Mini Tower:0 TB
Number of storage drives installed
- STDF12000200 NAS/storage server Mini Tower:6
- STDF200 NAS/storage server Mini Tower:0

Side by side

Differences highlightedShow differences only

Comparison of STDF12000200, STDF200
58 specifications	A Seagate STDF12000200 NAS/storage server Mini Tower Model STDF12000200 View product	B Seagate STDF200 NAS/storage server Mini Tower Model STDF200 View product
Storage2 differ
Storage drives installed	Yes	Yes
Total installed storage capacityDiffers	12 TB	0 TB
Number of storage drives installedDiffers	6	0
Number of storage drives supported	6	6
Installed storage drive type	HDD	HDD
Supported storage drive types	HDD	HDD
Storage drive capacityKnown for one	2 TB	Unknown — not stated by the source
Storage drive interface	Serial ATA	Serial ATA
Storage drive size	2.5/3.5"	2.5/3.5"
RAID support	Yes	Yes
RAID levels	0, 1, 5, 6, 10, JBOD	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes	Yes
Supported file systems	ext2, ext3, ext4, FAT32, HFS+, NTFS	ext2, ext3, ext4, FAT32, HFS+, NTFS
Maximum supported storage capacityKnown for one	Unknown — not stated by the source	30 TB
Processoridentical
Processor frequency	1.7 GHz	1.7 GHz
Processor cores	2	2
Memoryidentical
Internal memory	2 GB	2 GB
Internal memory type	DDR3	DDR3
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
DHCP client	Yes	Yes
DHCP server	Yes	Yes
Jumbo frames support	Yes	Yes
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	2	2
USB 2.0 ports quantity	1	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2	2
Fiber ports quantity	0	0
Designidentical
Chassis type	Mini Tower	Mini Tower
Product colour	Black	Black
LED indicators	Yes	Yes
Built-in display	Yes	Yes
Display type	LCD	LCD
Cable lock slot	Yes	Yes
Cable lock slot type	Kensington	Kensington
Performanceidentical
Type	NAS	NAS
Device class	Home & Home Office	Home & Home Office
Backup function	Yes	Yes
On/off switch	Yes	Yes
Security algorithms	256-bit AES	256-bit AES
Softwareidentical
Operating system installed	Seagate NAS OS	Seagate NAS OS
Operating system version	4.0	4.0
Windows operating systems supported	Yes	Yes
Linux operating systems supported	Yes	Yes
Mac operating systems supported	Yes	Yes
Poweridentical
Power supply location	External	External
Power supply unit (PSU) capacity	150 W	150 W
Power consumption (typical)	85 W	85 W
Power consumption (sleep)	69 W	69 W
Power consumption (off)	0.5 W	0.5 W
AC input voltage	100-240 V	100-240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Weight & dimensionsidentical
Width	235 mm	235 mm
Depth	217 mm	217 mm
Height	172.5 mm	172.5 mm
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%	0 - 80%
Storage relative humidity (H-H)	0 - 95%	0 - 95%
Storage temperature (T-T)	-40 - 65 °C	-40 - 65 °C

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
