Product comparison · 2 nas & storage servers

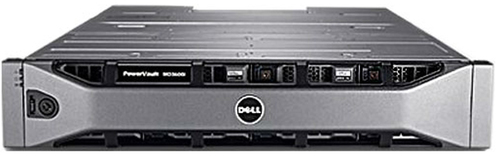

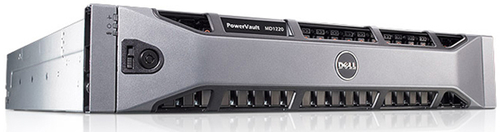

Dell PowerVault MD1220 Rack (2U) vs Dell PowerVault MD3600i Rack (2U)

18specifications compared
10differ
8identical
12known for one product only

Key differences

Total installed storage capacity
- PowerVault MD1220 Rack (2U):0.6 TB
- PowerVault MD3600i Rack (2U):1 TB
Number of storage drives supported
- PowerVault MD1220 Rack (2U):24
- PowerVault MD3600i Rack (2U):12
Storage drive capacity
- PowerVault MD1220 Rack (2U):300 GB
- PowerVault MD3600i Rack (2U):500 GB
Storage drive size
- PowerVault MD1220 Rack (2U):2.5"
- PowerVault MD3600i Rack (2U):3.5"
HDD speed
- PowerVault MD1220 Rack (2U):10000 RPM
- PowerVault MD3600i Rack (2U):7200 RPM
Width
- PowerVault MD1220 Rack (2U):450 mm
- PowerVault MD3600i Rack (2U):446 mm
Depth
- PowerVault MD1220 Rack (2U):550 mm
- PowerVault MD3600i Rack (2U):561 mm
Height
- PowerVault MD1220 Rack (2U):90 mm
- PowerVault MD3600i Rack (2U):86.8 mm

Side by side

Differences highlightedShow differences only

Comparison of MD1220, MD3600i
30 specifications	A Dell PowerVault MD1220 Rack (2U) Model MD1220 View product	B Dell PowerVault MD3600i Rack (2U) Model MD3600i View product
Storage5 differ
Total installed storage capacityDiffers	0.6 TB	1 TB
Number of storage drives installed	2	2
Number of storage drives supportedDiffers	24	12
Storage drive capacityDiffers	300 GB	500 GB
Storage drive interface	Serial Attached SCSI (SAS)	Serial Attached SCSI (SAS)
Storage drive sizeDiffers	2.5"	3.5"
HDD speedDiffers	10000 RPM	7200 RPM
RAID levelsKnown for one	Unknown — not stated by the source	0, 1, 5, 6, 10
Maximum supported storage capacityKnown for one	14.4 TB	Unknown — not stated by the source
Networkidentical
Ethernet LANKnown for one	Unknown — not stated by the source	Yes
Ethernet LAN data ratesKnown for one	Unknown — not stated by the source	10,100,1000 Mbit/s
Ports & interfacesidentical
Ethernet LAN (RJ-45) portsKnown for one	Unknown — not stated by the source	3
External mini-SAS portsKnown for one	Unknown — not stated by the source	1
PS/2 ports quantityKnown for one	Unknown — not stated by the source	1
Designidentical
Chassis type	Rack (2U)	Rack (2U)
Product colour	Silver	Silver
Poweridentical
Power supply unit (PSU) capacity	600 W	600 W
Number of power supply units	2	2
Weight & dimensions3 differ
WidthDiffers	450 mm	446 mm
DepthDiffers	550 mm	561 mm
HeightDiffers	90 mm	86.8 mm
WeightKnown for one	Unknown — not stated by the source	29.3 kg
Operational conditions1 differ
Operating temperature (T-T)	10 - 35 °C	10 - 35 °C
Operating relative humidity (H-H)Differs	8 - 85%	20 - 80%
Operating altitude	-16 - 3048 m	-16 - 3048 m
Non-operating altitudeKnown for one	-16 - 10600 m	Unknown — not stated by the source
Storage relative humidity (H-H)Known for one	5 - 95%	Unknown — not stated by the source
Storage temperature (T-T)Known for one	-40 - 65 °C	Unknown — not stated by the source
Other features1 differ
Networking featuresKnown for one	Unknown — not stated by the source	10 Gigabit Ethernet
Power requirementsDiffers	100 - 240 V, 50/60A	90 - 264 V, 47 / 63 Hz

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
