Product comparison · 2 nas & storage servers

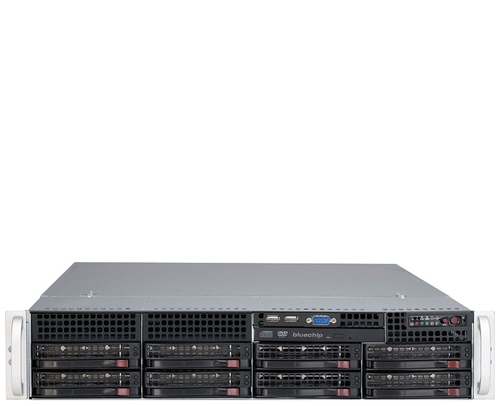

bluechip STORAGEline R42303s vs bluechip STORAGEline R51204s

73specifications compared
15differ
58identical
6known for one product only

Key differences

Total installed storage capacity
- STORAGEline R42303s:2 TB
- STORAGEline R51204s:0.6 TB
Storage drive capacity
- STORAGEline R42303s:1 TB
- STORAGEline R51204s:300 GB
Storage drive interface
- STORAGEline R42303s:Serial ATA III
- STORAGEline R51204s:Serial Attached SCSI (SAS)
Storage drive size
- STORAGEline R42303s:3.5"
- STORAGEline R51204s:2.5"
Storage drive sizes supported
- STORAGEline R42303s:2.5,3.5"
- STORAGEline R51204s:2.5"
HDD speed
- STORAGEline R42303s:7200 RPM
- STORAGEline R51204s:15000 RPM
RAID levels
- STORAGEline R42303s:0, 1, 5, 10, 50, 60, JBOD
- STORAGEline R51204s:0, 1, 5, 6, 10, 50, 60
Maximum RAM supported
- STORAGEline R42303s:1 TB
- STORAGEline R51204s:1.53 TB

Side by side

Differences highlightedShow differences only

Comparison of STORAGEline R42303s, STORAGEline R51204s
79 specifications	A bluechip STORAGEline R42303s View product	B bluechip STORAGEline R51204s View product
Storage8 differ
Storage drives installed	Yes	Yes
Total installed storage capacityDiffers	2 TB	0.6 TB
Number of storage drives installed	2	2
Number of storage drives supported	8	8
Installed storage drive type	HDD	HDD
Storage drive capacityDiffers	1 TB	300 GB
Storage drive interfaceDiffers	Serial ATA III	Serial Attached SCSI (SAS)
Supported storage drive interfacesDiffers	Serial ATA III	Serial ATA III, Serial Attached SCSI (SAS)
Storage drive sizeDiffers	3.5"	2.5"
Storage drive sizes supportedDiffers	2.5,3.5"	2.5"
HDD speedDiffers	7200 RPM	15000 RPM
RAID support	Yes	Yes
RAID levelsDiffers	0, 1, 5, 10, 50, 60, JBOD	0, 1, 5, 6, 10, 50, 60
Hot-swap drive bays	Yes	Yes
Processoridentical
Processor manufacturer	Intel	Intel
Processor family	Intel Xeon Bronze	Intel Xeon Bronze
Processor generation	2nd Generation Intel® Xeon® Scalable	2nd Generation Intel® Xeon® Scalable
Processor model	3204	3204
Processor frequency	1.9 GHz	1.9 GHz
Processor boost frequency	1.9 GHz	1.9 GHz
Processor cores	6	6
Processor threads	6	6
Processor cache	8.25 MB	8.25 MB
Motherboard chipset	Intel® C621	Intel® C621
PCI Express slots version	3.0	3.0
Processor codename	Cascade Lake	Cascade Lake
Processor lithography	14 nm	14 nm
Processor operating modes	64-bit	64-bit
Processor package size	76.0 x 56.5 mm	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)	LGA 3647 (Socket P)
Scalability	2S	2S
Tcase	77 °C	77 °C
Thermal Design Power (TDP)	85 W	85 W
On-board graphics card model	Not available	Not available
Maximum internal memory supported by processor	1 TB	1 TB
PCI Express configurationsKnown for one	Unknown — not stated by the source	2x16
Memory2 differ
Internal memory	16 GB	16 GB
Internal memory type	DDR4	DDR4
Memory clock speed	2666 MHz	2666 MHz
Maximum RAM supportedDiffers	1 TB	1.53 TB
Memory form factor	DIMM	DIMM
Memory slotsDiffers	8	12
Flash memory	32768 MB	32768 MB
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	1000 Mbit/s	1000 Mbit/s
Ports & interfaces1 differ
Ethernet LAN (RJ-45) ports	2	2
USB port	Yes	Yes
USB 2.0 ports quantityKnown for one	4	Unknown — not stated by the source
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers	2	4
Fiber ports quantity	0	0
VGA (D-Sub) ports quantity	1	1
Serial ports quantityKnown for one	2	Unknown — not stated by the source
PCI Express x4 (Gen 3.x) slotsKnown for one	1	Unknown — not stated by the source
PCI Express x8 (Gen 3.x) slotsKnown for one	6	Unknown — not stated by the source
Design1 differ
Chassis typeDiffers	Rack (2U)	Rack (1U)
Cooling type	Active	Active
Product colour	Black	Black
Performanceidentical
Type	Storage server	Storage server
Power1 differ
Power supply location	Built-in	Built-in
Power supply unit (PSU) capacityDiffers	600 W	750 W
Redundant power supply (RPS) supportKnown for one	Unknown — not stated by the source	Yes
Weight & dimensions2 differ
Width	437 mm	437 mm
DepthDiffers	647 mm	597 mm
HeightDiffers	89 mm	43 mm
Processor special featuresidentical
Embedded options available	No	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Intel 64	Yes	Yes
Intel TSX-NI	Yes	Yes
Intel Trusted Execution Technology	Yes	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No	No
Intel® Turbo Boost Technology	No	No
Maximum number of PCI Express lanes	48	48
Memory types supported by processor	DDR4-SDRAM	DDR4-SDRAM
Other featuresidentical
Processor ARK ID	193381	193381

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
