Product comparison · 2 monitors

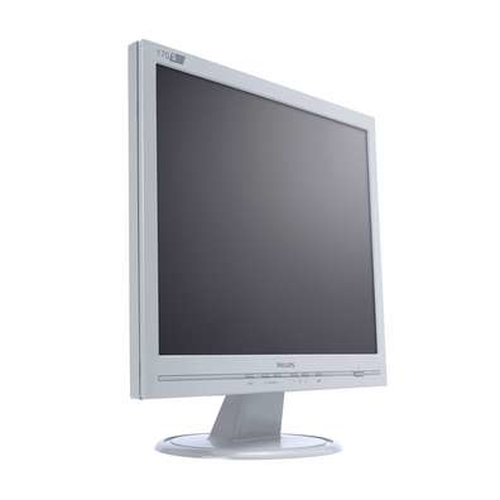

NEC MultiSync® LCD1570NX White vs Philips 17" LCD Monitor 170S5FG

26specifications compared
20differ
6identical
12known for one product only

Key differences

Display diagonal
- MultiSync® LCD1570NX White:38.1 cm (15")
- 17" LCD Monitor 170S5FG:43.2 cm (17")
Display resolution
- MultiSync® LCD1570NX White:1024 x 768 pixels
- 17" LCD Monitor 170S5FG:1280 x 1024 pixels
Viewing angle, horizontal
- MultiSync® LCD1570NX White:130°
- 17" LCD Monitor 170S5FG:160°
Viewing angle, vertical
- MultiSync® LCD1570NX White:160°
- 17" LCD Monitor 170S5FG:140°
Pixel pitch
- MultiSync® LCD1570NX White:0.297
- 17" LCD Monitor 170S5FG:0.264
Horizontal scan range
- MultiSync® LCD1570NX White:31.5 - 60 kHz
- 17" LCD Monitor 170S5FG:30 - 82 kHz
Vertical scan range
- MultiSync® LCD1570NX White:56 - 75 Hz
- 17" LCD Monitor 170S5FG:56 - 76 Hz
Panel mounting interface
- MultiSync® LCD1570NX White:75 x 75 mm
- 17" LCD Monitor 170S5FG:100 x 100 mm

Side by side

Differences highlightedShow differences only

Comparison of MultiSync® LCD1570NX White, 17" LCD Monitor 170S5FG
38 specifications	A NEC MultiSync® LCD1570NX White View product	B Philips 17" LCD Monitor 170S5FG View product
Display7 differ
Display diagonalDiffers	38.1 cm (15")	43.2 cm (17")
Display resolutionDiffers	1024 x 768 pixels	1280 x 1024 pixels
Touchscreen	No	No
Display brightness (typical)	250 cd/m²	250 cd/m²
Response time	16 ms	16 ms
Contrast ratio (typical)	450:1	450:1
Viewing angle, horizontalDiffers	130°	160°
Viewing angle, verticalDiffers	160°	140°
Display number of coloursKnown for one	16.78 million colours	Unknown — not stated by the source
Pixel pitchDiffers	0.297	0.264
Horizontal scan rangeDiffers	31.5 - 60 kHz	30 - 82 kHz
Vertical scan rangeDiffers	56 - 75 Hz	56 - 76 Hz
Surface treatmentKnown for one	Unknown — not stated by the source	Anti-glare polarizer
Designidentical
Product colour	White	White
Ports & interfaces1 differ
I/O portsDiffers	1 x DVI-D; 1 x mini D-sub 15 pin	VGA Port Power Port
Ergonomics3 differ
Panel mounting interfaceDiffers	75 x 75 mm	100 x 100 mm
Swivel angle rangeKnown for one	170 - 170°	Unknown — not stated by the source
Tilt angle rangeDiffers	-5 - 30°	-5 - 25°
Plug and Play	Yes	Yes
ErgonomicsDiffers	CE; GEEA Energy Label; Energy Star; FCC Class B; TÜV ERGONOMIE;	TÜV/GS, TÜV Ergo
Power2 differ
Power consumption (typical)Differs	20 W	30 W
Power consumption (standby)Differs	2 W	1 W
Operational conditions2 differ
Operating temperature (T-T)Differs	5 - 35 °C	5 - 40 °C
Operating relative humidity (H-H)Differs	10 - 80%	20 - 80%
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-5 - 60 °C
Weight & dimensions4 differ
Width (without stand)Differs	336 mm	375 mm
Depth (without stand)Differs	305 mm	200 mm
Height (without stand)Differs	183 mm	390 mm
Weight (without stand)Differs	3.8 kg	4.2 kg
Bezel width (side)Known for one	1.53 cm	Unknown — not stated by the source
Other features1 differ
Power requirementsKnown for one	100-120 V/220-240 V; 0.2 A	Unknown — not stated by the source
SafetyKnown for one	ISO 13406-2 (Pixel Failure Class II);PCT Gost; TCO03; UL/C-UL or CSA; MPR II/ MPR III	Unknown — not stated by the source
Bundled hardwareKnown for one	Power Cable; Signal Cable VGA-VGA	Unknown — not stated by the source
Supplied AC adapter typeDiffers	LCD, 1024 x 768 at 60 Hz	LCD
Minimum system requirementsKnown for one	Unknown — not stated by the source	Windows 98/ME/2000/XP
Display viewable area (HxV)Known for one	Unknown — not stated by the source	337.9 x 270.3 mm
Power managementKnown for one	Unknown — not stated by the source	E2000, EnergyStar, Nutek
CertificationKnown for one	Unknown — not stated by the source	TCO '99, TCO '03

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
