Product comparison · 2 modems

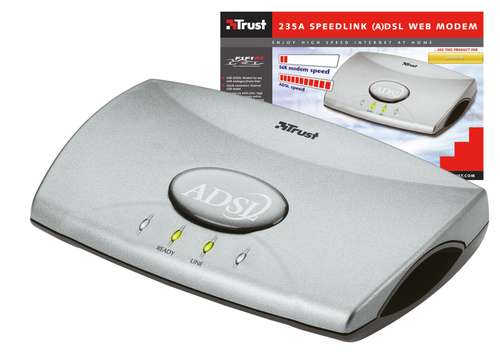

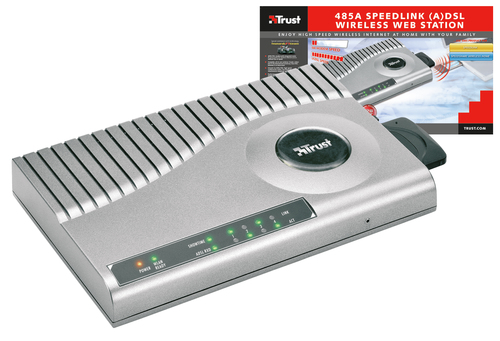

Trust 235A modem 8000 Kbit/s vs Trust 485A modem 8000 Kbit/s

12specifications compared
9differ
3identical
4known for one product only

Key differences

Mac compatibility
- 235A modem 8000 Kbit/s:No
- 485A modem 8000 Kbit/s:Yes
Depth
- 235A modem 8000 Kbit/s:120 mm
- 485A modem 8000 Kbit/s:155 mm
Height
- 235A modem 8000 Kbit/s:28 mm
- 485A modem 8000 Kbit/s:34 mm
Width
- 235A modem 8000 Kbit/s:85 mm
- 485A modem 8000 Kbit/s:265 mm

Side by side

Differences highlightedShow differences only

Comparison of 235A, 485A
16 specifications	A Trust 235A modem 8000 Kbit/s Model 235A View product	B Trust 485A modem 8000 Kbit/s Model 485A View product
Modem1 differ
Modem speed	8000 Kbit/s	8000 Kbit/s
InterfaceDiffers	USB	STP network connection (Windows + Mac), USB connection (Windows only), Compatible with 11Mbps universal IEEE 802.11b wireless data protocol.
Performanceidentical
Data link protocolsKnown for one	Protocols support: * RFC 1483; Routed IP over ATM / Ethernet over ATM * RFC 2364; PPP over ATM (PPPoA) * RFC 2516; PPP over Ethernet (PPPoE) * ATM AAL5 (Adaption Layer type 5)	Unknown — not stated by the source
Upstream data rate	1 Mbit/s	1 Mbit/s
Downstream data rate	8 Mbit/s	8 Mbit/s
Supported data transfer ratesKnown for one	Unknown — not stated by the source	Depends on ISP contract
Networking featuresKnown for one	Unknown — not stated by the source	4x 10/100Mb STP router network connections
Featuresidentical
CompatibilityKnown for one	PC	Unknown — not stated by the source
Ports & interfaces1 differ
I/O portsDiffers	USB & RJ11	4x 10/100Mb STP (RJ45), 1x USB 1.1, universal IEEE 802.11b wireless.
System requirements3 differ
Mac compatibilityDiffers	No	Yes
Minimum system requirementsDiffers	Intel Pentium-II 233 MMX CPU One free USB Port 32 MB of system memory 50 MB free HDD space CD-ROM drive Active (A)DSL subscription for ISDN line (annex A) (A)DSL account login information For correct phone functionality: splitter and microfilter	Intel Pentium-II 266 MMX CPU or Mac PPC STP network connection (Windows + Mac) USB connection (Windows only) 64 MB of system memory 10 MB free HDD space CD-ROM drive (Windows only) For Windows: Win 98SE, 2000, ME or XP (configuration through setup wizard) For Mac: OS 9.x, or OS 10.x (configuration t
Compatible operating systemsDiffers	Windows 98SE / 2000 / ME / XP	Win: 98SE, 2000, ME or XP (configuration through setup wizard) Mac: OS 9.x, or OS 10.x (configuration through internet browser)
Weight & dimensions3 differ
DepthDiffers	120 mm	155 mm
HeightDiffers	28 mm	34 mm
WidthDiffers	85 mm	265 mm
Technical details1 differ
Special featuresDiffers	Line specifications: * ANSI T1.413 issue 2 compatible * ITU-T G.992.1 (G.DMT) modulation * ITU-T G.992.2 (G.LITE) modulation * ITU Automode Encapsulation support: * LLC/SNAP * VC-MUX VPI and VCI Settings * VPI Value from 0 to 255 * VCI Value from 32 to 65535	ROUTER INFORMATION (LAN): 4x 10/100Mb STP router network connections 1x USB 1.1 connection (network card function, only for Windows) Supports DHCP client and server NAT (Network Address Translation) for best router functionality Firewall functionality provides security against unauthorized access an

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
