Product comparison · 2 modems

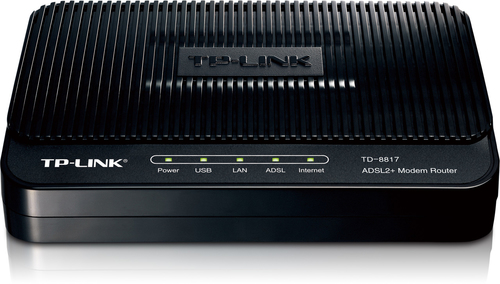

TP-Link ADSL2+ Modem Router vs TP-Link TD-8817 modem

15specifications compared
3differ
12identical
7known for one product only

Key differences

Compliance industry standards
- ADSL2+ Modem Router:IEEE 802.3, IEEE802.3u
- TD-8817 modem:IEEE 802.3, 802.3u
Operating temperature (T-T)
- ADSL2+ Modem Router:0 - 40 °C
- TD-8817 modem:0 - 55 °C
Operating relative humidity (H-H)
- ADSL2+ Modem Router:10 - 90%
- TD-8817 modem:10 - 95%

Side by side

Differences highlightedShow differences only

Comparison of ADSL2+ Modem Router, TD-8817
22 specifications	A TP-Link ADSL2+ Modem Router View product	B TP-Link TD-8817 modem Model TD-8817 View product
Modemidentical
InterfaceKnown for one	Unknown — not stated by the source	USB 2.0/Ethernet Port
Performanceidentical
Upstream data rate	3.5 Mbit/s	3.5 Mbit/s
Downstream data rate	24 Mbit/s	24 Mbit/s
MAC address filtering	Yes	Yes
Networking features	Fast Ethernet	Fast Ethernet
Supported protocols	ATM Forum UNI3.1/4.0 PVC - Up to 8 PVCs PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225)	ATM Forum UNI3.1/4.0 PVC - Up to 8 PVCs PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225)
Featuresidentical
LED indicatorsKnown for one	Unknown — not stated by the source	Yes
Connectivity LEDsKnown for one	Yes	Unknown — not stated by the source
Ports & interfacesidentical
DC-in jack	Yes	Yes
Ethernet LAN (RJ-45) ports	1	1
Modem (RJ-11) ports	1	1
System requirementsidentical
Compatible operating systemsKnown for one	Unknown — not stated by the source	Windows 98SE, NT, 2000, XP, Vista, 7 MAC OS NetWare UNIX Linux
Certificates1 differ
Compliance industry standardsDiffers	IEEE 802.3, IEEE802.3u	IEEE 802.3, 802.3u
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 40 °C	0 - 55 °C
Operating relative humidity (H-H)Differs	10 - 90%	10 - 95%
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Non-operating relative humidity (non-condensing)Known for one	Unknown — not stated by the source	5 - 95%
Weight & dimensionsidentical
Depth	108 mm	108 mm
Height	28 mm	28 mm
Width	165 mm	165 mm
Packaging contentidentical
Cables includedKnown for one	Unknown — not stated by the source	LAN (RJ-45), Phone (RJ-11)
Poweridentical
Power supply typeKnown for one	9VDC/0.6A PSU	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
