TP-Link ADSL2+ Modem Router vs TP-Link TD-8616 modem

Comparison of ADSL2+ Modem Router, TD-8616

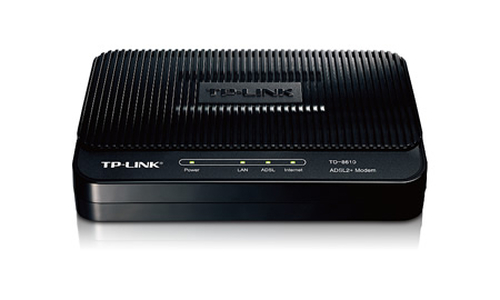

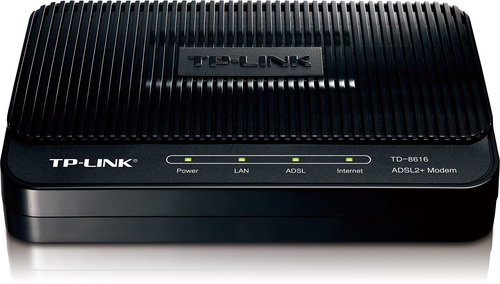

22 specifications	A TP-Link ADSL2+ Modem RouterView product	B TP-Link TD-8616 modem Model TD-8616 View product
Performanceidentical
Upstream data rate	3.5 Mbit/s	3.5 Mbit/s
Downstream data rate	24 Mbit/s	24 Mbit/s
MAC address filteringKnown for one	Yes	—Unknown — not stated by the source
Networking features	Fast Ethernet	Fast Ethernet
Supported protocolsKnown for one	ATM Forum UNI3.1/4.0 PVC - Up to 8 PVCs PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225)	—Unknown — not stated by the source
Featuresidentical
Connectivity LEDsKnown for one	Yes	—Unknown — not stated by the source
LED indicatorsKnown for one	—Unknown — not stated by the source	Activity, DSL, LAN
Ports & interfacesidentical
DC-in jackKnown for one	Yes	—Unknown — not stated by the source
Ethernet LAN (RJ-45) ports	1	1
Modem (RJ-11) ports	1	1
Poweridentical
Power supply typeKnown for one	9VDC/0.6A PSU	—Unknown — not stated by the source
Certificates1 differ
Compliance industry standardsDiffers	IEEE 802.3, IEEE802.3u	IEEE 802.3, 802.3u
Compliance certificatesKnown for one	—Unknown — not stated by the source	RoHS, Federal Communications Commission (FCC)
CertificationKnown for one	—Unknown — not stated by the source	FCC, RoHS
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Non-operating relative humidity (non-condensing)Known for one	—Unknown — not stated by the source	5 - 90%
Weight & dimensionsidentical
Depth	108 mm	108 mm
Height	28 mm	28 mm
Width	165 mm	165 mm
Technical detailsidentical
Technical featuresKnown for one	—Unknown — not stated by the source	ANSI T1.413 Issue 2 ITU-T G.992.1 (G.dmt) ITU-T G.992.2 (G.lite) ITU-T G.992.3 (G.dmt.bis) ITU-T G.994.1 (G.hs) ITU-T G.992.5

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
