ASUS F555LD-XX309H Intel® Core™ i5 i5-4210U Laptop vs ASUS F555LD-XX310H Intel® Core™ i5 i5-4210U Laptop

Comparison of F555LD-XX309H, F555LD-XX310H

160 specifications	A ASUS F555LD-XX309H Intel® Core™ i5 i5-4210U Laptop Model F555LD-XX309H View product	B ASUS F555LD-XX310H Intel® Core™ i5 i5-4210U Laptop Model F555LD-XX310H View product
Design1 differ
Product type	Laptop	Laptop

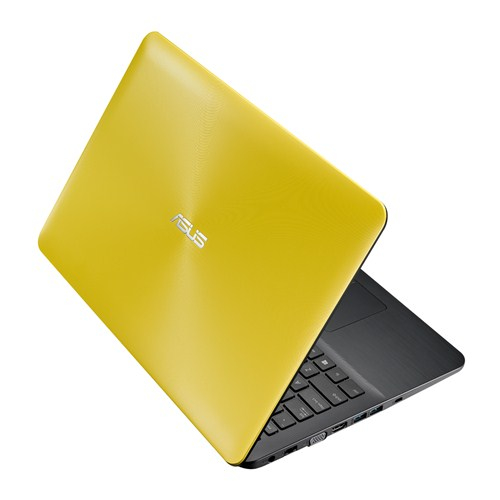

Product colourDiffers	Yellow	Brown
Form factor	Clamshell	Clamshell
Displayidentical
Display diagonal	39.6 cm (15.6")	39.6 cm (15.6")
Display resolution	1366 x 768 pixels	1366 x 768 pixels
Touchscreen	No	No
HD type	HD	HD
LED backlight	Yes	Yes
Native aspect ratio	16:9	16:9
Processoridentical
Processor manufacturer	Intel	Intel
Processor family	Intel® Core™ i5	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5	4th gen Intel® Core™ i5
Processor model	i5-4210U	i5-4210U
Processor cores	2	2
Processor threads	4	4
Processor boost frequency	2.7 GHz	2.7 GHz
Processor frequency	1.7 GHz	1.7 GHz
System bus rate	5 GT/s	5 GT/s
Processor cache	3 MB	3 MB
Processor cache type	Smart Cache	Smart Cache
Processor socket	BGA 1168	BGA 1168
Processor lithography	22 nm	22 nm
Processor operating modes	64-bit	64-bit
Processor series	Intel Core i5-4200 Mobile series	Intel Core i5-4200 Mobile series
Processor codename	Haswell	Haswell
Bus type	DMI2	DMI2
FSB Parity	No	No
Stepping	D0	D0
Thermal Design Power (TDP)	15 W	15 W
Tjunction	100 °C	100 °C
Maximum number of PCI Express lanes	12	12
PCI Express configurations	4x1, 2x4	4x1, 2x4
PCI Express slots version	2.0	2.0
ECC supported by processor	No	No
Memoryidentical
Internal memory	8 GB	8 GB
Internal memory type	DDR3-SDRAM	DDR3-SDRAM
Memory clock speed	1600 MHz	1600 MHz
Memory layout (slots x size)	2 x 4 GB	2 x 4 GB
Memory slots	2x SO-DIMM	2x SO-DIMM
Maximum internal memoryKnown for one	—Unknown — not stated by the source	8 GB
Storageidentical
Total storage capacity	1 TB	1 TB
Storage media	HDD	HDD
Number of HDDs installed	1	1
HDD capacity	1 TB	1 TB
HDD interface	SATA	SATA
HDD speed	5400 RPM	5400 RPM
Optical drive type	DVD Super Multi DL	DVD Super Multi DL
Card reader integrated	Yes	Yes
Graphicsidentical
On-board graphics card	Yes	Yes
Discrete graphics card	Yes	Yes
Discrete graphics card model	NVIDIA® GeForce® 820M	NVIDIA® GeForce® 820M
Discrete graphics card memory	2 GB	2 GB
Discrete graphics memory type	GDDR3	GDDR3
On-board graphics card family	Intel® HD Graphics	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB	1.74 GB
On-board graphics card base frequency	200 MHz	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz	1000 MHz
On-board graphics card DirectX version	12	12
On-board graphics card ID	0xA16	0xA16
Number of discrete graphics cards installed	1	1
Graphics card Open GL support	Yes	Yes
Audioidentical
Audio system	SonicMaster	SonicMaster
Speakers manufacturer	Altec Lansing	Altec Lansing
Built-in microphone	Yes	Yes
Cameraidentical
Front camera	Yes	Yes
Swivel webcam	No	No
Rear camera	No	No
Networkidentical
Wi-Fi	Yes	Yes
Wi-Fi standards	802.11g, 802.11b, Wi-Fi 4 (802.11n)	802.11g, 802.11b, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s	10,1000,100 Mbit/s
Bluetooth	No	No
Ports & interfacesidentical
USB 2.0 ports quantity	1	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2	2
Ethernet LAN (RJ-45) ports	1	1
HDMI ports quantity	1	1
DisplayPorts quantity	0	0
DVI port	No	No
VGA (D-Sub) ports quantity	1	1
Thunderbolt ports quantity	0	0
Headphone outputs	1	1
S/PDIF out port	No	No
Combo headphone/mic port	Yes	Yes
Docking connector	No	No
ExpressCard slot	No	No
CardBus PCMCIA slot type	No	No
SmartCard slot	No	No
Total number of SATA connectors	4	4
Number of SATA III connectors	4	4
Performanceidentical
GPS (satellite)	No	No
Keyboardidentical
Pointing device	Touchpad	Touchpad
Numeric keypad	Yes	Yes
Windows keys	Yes	Yes
Softwareidentical
Operating system installed	Windows 8.1	Windows 8.1
Operating system architecture	64-bit	64-bit
Processor special featuresidentical
Intel® Wireless Display (Intel® WiDi)	Yes	Yes
CPU configuration (max)	1	1
Embedded options available	No	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	No	No
Intel Demand Based Switching	No	No
Intel Dual Display Capable Technology	No	No
Intel Enhanced Halt State	Yes	Yes
Intel FDI Technology	No	No
Intel Fast Memory Access	No	No
Intel Flex Memory Access	No	No
Intel Identity Protection Technology version	1.00	1.00
Intel ME Firmware Version	9.5	9.5
Intel Rapid Storage Technology	Yes	Yes
Intel Secure Key Technology version	1.00	1.00
Intel Smart Connect Technology	Yes	Yes
Intel Smart Connect Technology version	1.00	1.00
Intel TSX-NI	No	No
Intel TSX-NI version	0.00	0.00
Intel Trusted Execution Technology	No	No
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No	No
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No	No
Intel® High Definition Audio (Intel® HD Audio)	Yes	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes	Yes
Intel® InTru™ 3D Technology	Yes	Yes
Intel® Insider™	Yes	Yes
Intel® Matrix Storage Technology (Intel® MST)	No	No
Intel® My WiFi Technology (Intel® MWT)	No	No
Intel® Quick Sync Video Technology	Yes	Yes
Intel® Secure Key	Yes	Yes
Intel® Smart Cache	Yes	Yes
Intel® Turbo Boost Technology	2.0	2.0
Intel® Virtualization Technology (Intel® VT)	VT-x	VT-x
Processor ARK ID	81016	81016
Processor code	SR1EF	SR1EF
Processor package size	40 x 24 x 1.5 mm	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes	Yes
UART	Yes	Yes
Conflict-Free processor	Yes	Yes
Batteryidentical
Battery technology	Lithium-Ion (Li-Ion)	Lithium-Ion (Li-Ion)
Number of battery cells	2	2
Poweridentical
AC adapter power	65 W	65 W
DC-in jack	Yes	Yes
Securityidentical
Cable lock slot	No	No
Fingerprint reader	No	No
Weight & dimensionsidentical
Weight	2.3 kg	2.3 kg
Width	382 mm	382 mm
Depth	256 mm	256 mm
Height	25.8 mm	25.8 mm
Packaging contentidentical
AC adapter included	Yes	Yes
Cables included	AC	AC
Power cord included	Yes	Yes
Other featuresidentical
3D	No	No
TV tuner integrated	No	No

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
