Product comparison · 2 kvm switches

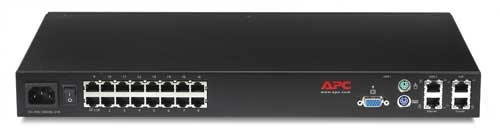

APC 16-Port IP KVM vs APC 16 Port Multi-Platform Analog KVM

Key differences

Storage temperature (T-T)
- 16-Port IP KVM:-40 - 85 °C
- 16 Port Multi-Platform Analog KVM:-20 - 50 °C
Operating relative humidity (H-H)
- 16-Port IP KVM:0 - 95%
- 16 Port Multi-Platform Analog KVM:0 - 85%
Weight
- 16-Port IP KVM:3.45 kg
- 16 Port Multi-Platform Analog KVM:4.55 kg
Package dimensions (WxDxH)
- 16-Port IP KVM:533 x 286 x 152 mm
- 16 Port Multi-Platform Analog KVM:508 x 330 x 127 mm
Package weight
- 16-Port IP KVM:4.05 kg
- 16 Port Multi-Platform Analog KVM:5 kg
Dimensions (WxDxH)
- 16-Port IP KVM:432 x 241 x 44 mm
- 16 Port Multi-Platform Analog KVM:432 x 210 x 44 mm

Differences highlightedShow differences only

Comparison of 16-Port IP KVM, 16 Port Multi-Platform Analog KVM
22 specifications	A APC 16-Port IP KVM View product	B APC 16 Port Multi-Platform Analog KVM View product
Ports & interfacesidentical
Keyboard port type	PS/2	PS/2
Mouse port type	PS/2	PS/2
Video port type	VGA	VGA
Number of computers controlledKnown for one	16	Unknown — not stated by the source
Performanceidentical
Maximum resolutionKnown for one	Unknown — not stated by the source	1920 x 1440 pixels
Designidentical
Rack capacity	1U	1U
Rack mounting	Yes	Yes
Product colour	Black	Black
CertificationKnown for one	Unknown — not stated by the source	AS/NZS 3548 (C-Tick) Class A,CE,FCC Part 15 Class A,ICES-003,UL 60950,VCCI
Cable lengthKnown for one	1.8 m	Unknown — not stated by the source
Operational conditions2 differ
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Storage temperature (T-T)Differs	-40 - 85 °C	-20 - 50 °C
Operating relative humidity (H-H)Differs	0 - 95%	0 - 85%
Storage relative humidity (H-H)Known for one	0 - 95%	Unknown — not stated by the source
Weight & dimensions1 differ
WeightDiffers	3.45 kg	4.55 kg
Packaging data2 differ
Package dimensions (WxDxH)Differs	533 x 286 x 152 mm	508 x 330 x 127 mm
Package weightDiffers	4.05 kg	5 kg
Other features1 differ
Connectivity technology	Wired	Wired
Dimensions (WxDxH)Differs	432 x 241 x 44 mm	432 x 210 x 44 mm
Ports quantity	16	16
I/O portsKnown for one	Unknown — not stated by the source	1 x mini-DIN (PS/2) F 1 x mini-DIN (PS/2) F 1 x 15-pin D-Sub (HD-15) F VGA/SVGA
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	85176200

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
