Product comparison · 2 kvm extenders

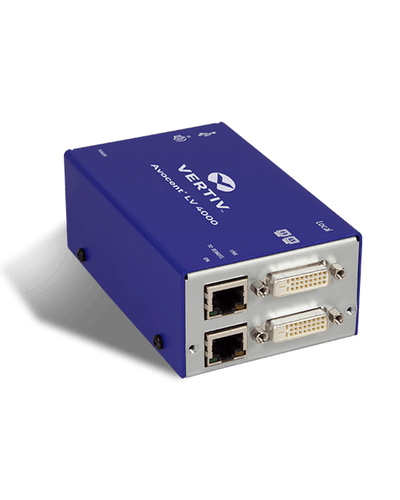

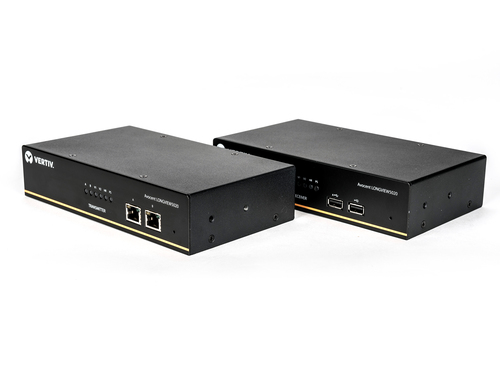

Vertiv Avocent LV4010P-001 KVM extender Transmitter & receiver vs Vertiv Avocent LV5020P KVM extender Transmitter & receiver

27specifications compared
16differ
11identical
19known for one product only

Key differences

Maximum transfer distance
- Avocent LV4010P-001 KVM extender Transmitter & receiver:50 m
- Avocent LV5020P KVM extender Transmitter & receiver:150 m
Rack mounting
- Avocent LV4010P-001 KVM extender Transmitter & receiver:No
- Avocent LV5020P KVM extender Transmitter & receiver:Yes
Maximum digital resolution
- Avocent LV4010P-001 KVM extender Transmitter & receiver:1920 x 1200 pixels
- Avocent LV5020P KVM extender Transmitter & receiver:3860 x 2160 pixels
Product colour
- Avocent LV4010P-001 KVM extender Transmitter & receiver:Blue
- Avocent LV5020P KVM extender Transmitter & receiver:Black
Transmitter local video port type
- Avocent LV4010P-001 KVM extender Transmitter & receiver:DVI-D
- Avocent LV5020P KVM extender Transmitter & receiver:DisplayPort
Receiver local video port type
- Avocent LV4010P-001 KVM extender Transmitter & receiver:DVI-D
- Avocent LV5020P KVM extender Transmitter & receiver:DisplayPort
AC input frequency
- Avocent LV4010P-001 KVM extender Transmitter & receiver:50 - 60 Hz
- Avocent LV5020P KVM extender Transmitter & receiver:50 Hz
Power consumption (receiver) (max)
- Avocent LV4010P-001 KVM extender Transmitter & receiver:12.5 W
- Avocent LV5020P KVM extender Transmitter & receiver:20 W

Side by side

Differences highlightedShow differences only

Comparison of LV4010P-001, LV5020P-202
46 specifications	A Vertiv Avocent LV4010P-001 KVM extender Transmitter & receiver Model LV4010P-001 View product	B Vertiv Avocent LV5020P KVM extender Transmitter & receiver Model LV5020P-202 View product
Features4 differ
Type	Transmitter & receiver	Transmitter & receiver
Connectivity technology	Wired	Wired
Maximum transfer distanceDiffers	50 m	150 m
Cable types supported	Cat5e, Cat6a, Cat7	Cat5e, Cat6a, Cat7
Rack mountingDiffers	No	Yes
Maximum digital resolutionDiffers	1920 x 1200 pixels	3860 x 2160 pixels
Product colourDiffers	Blue	Black
Material	Metal	Metal
Easy to installKnown for one	Unknown — not stated by the source	Yes
Plug and PlayKnown for one	Unknown — not stated by the source	Yes
LED indicatorsKnown for one	Unknown — not stated by the source	Yes
Certification	CE, FCC, UL	CE, FCC, UL
Audio supportKnown for one	Unknown — not stated by the source	Yes
Transmitter1 differ
Transmitter video port typeKnown for one	Unknown — not stated by the source	DisplayPort
Transmitter local video port	Yes	Yes
Transmitter local video port typeDiffers	DVI-D	DisplayPort
Number of displays supportedKnown for one	Unknown — not stated by the source	2
Transmitter local keyboard/mouse port type	USB	USB
RJ-45 ports quantity (transmitter)Known for one	Unknown — not stated by the source	2
Receiver1 differ
RJ-45 ports quantity (receiver)Known for one	Unknown — not stated by the source	2
Receiver local keyboard/mouse port type	USB	USB
Receiver local video port typeDiffers	DVI-D	DisplayPort
Power2 differ
AC input voltage	100-240 V	100-240 V
AC input frequencyDiffers	50 - 60 Hz	50 Hz
AC adapter output voltage	5 V	5 V
AC adapter output currentKnown for one	Unknown — not stated by the source	0.8 A
Power consumption (transmitter) (max)Known for one	Unknown — not stated by the source	20 W
Power consumption (receiver) (max)Differs	12.5 W	20 W
Weight & dimensions8 differ
Transmitter widthDiffers	12 cm	19.8 cm
Transmitter depthDiffers	7.5 cm	1.2 cm
Transmitter heightDiffers	2.6 cm	4.4 cm
Transmitter weightDiffers	320 g	750 g
Receiver widthDiffers	12 cm	19.8 cm
Receiver depthDiffers	7.5 cm	12 cm
Receiver heightDiffers	2.6 cm	4.4 cm
Receiver weightDiffers	320 g	750 g
Packaging contentidentical
AC adapter includedKnown for one	Unknown — not stated by the source	Yes
Cables includedKnown for one	Unknown — not stated by the source	AC, Audio (3.5mm), DisplayPort, USB
Quick installation guideKnown for one	Unknown — not stated by the source	Yes
Included power plug typesKnown for one	Unknown — not stated by the source	EU
Mounting bracket(s) includedKnown for one	Unknown — not stated by the source	No
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Technical detailsidentical
Maximum resolutionKnown for one	Unknown — not stated by the source	3840 x 2160 pixels
Video inKnown for one	Unknown — not stated by the source	DisplayPort
WeightKnown for one	320 g	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	84733080

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
