Product comparison · 2 internal solid state drives

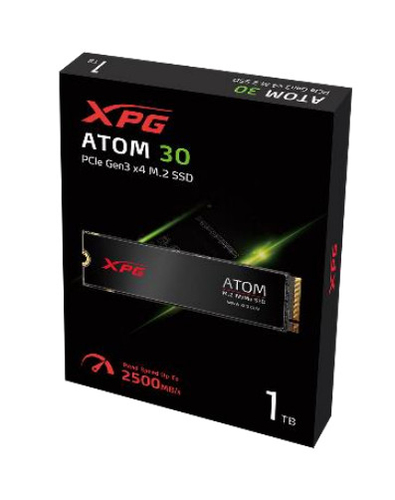

XPG AATO-30KIT-250G1TCI internal solid state drive vs XPG ATOM 30

Key differences

Interface
- AATO-30KIT-250G1TCI internal solid state drive:PCI Express 3.0
- ATOM 30:PCI Express 4.0
Width
- AATO-30KIT-250G1TCI internal solid state drive:220 mm
- ATOM 30:22 mm
Depth
- AATO-30KIT-250G1TCI internal solid state drive:800 mm
- ATOM 30:3.13 mm
Height
- AATO-30KIT-250G1TCI internal solid state drive:3.13 mm
- ATOM 30:80 mm

Differences highlightedShow differences only

Comparison of AATO-30KIT-250G1TCI, ATOM 30
21 specifications	A XPG AATO-30KIT-250G1TCI internal solid state drive Model AATO-30KIT-250G1TCI View product	B XPG ATOM 30 View product
Features1 differ
SSD capacity	1 TB	1 TB
SSD form factor	M.2	M.2
InterfaceDiffers	PCI Express 3.0	PCI Express 4.0
NVMe	Yes	Yes
NVMe version	1.3	1.3
Memory type	3D NAND	3D NAND
Component forKnown for one	Unknown — not stated by the source	PC
Security algorithmsKnown for one	Unknown — not stated by the source	256-bit AES
Read speed	2500 MB/s	2500 MB/s
Write speed	2000 MB/s	2000 MB/s
Random read (4KB)Known for one	Unknown — not stated by the source	180000 IOPS
Random write (4KB)Known for one	Unknown — not stated by the source	200000 IOPS
Mean time between failures (MTBF)	2000000 h	2000000 h
CertificationKnown for one	Unknown — not stated by the source	CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS
Weight & dimensions3 differ
WidthDiffers	220 mm	22 mm
DepthDiffers	800 mm	3.13 mm
HeightDiffers	3.13 mm	80 mm
Weight	9 g	9 g
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Logistics dataidentical
Quantity per packKnown for one	2 pc(s)	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
