Product comparison · 2 internal hard drives

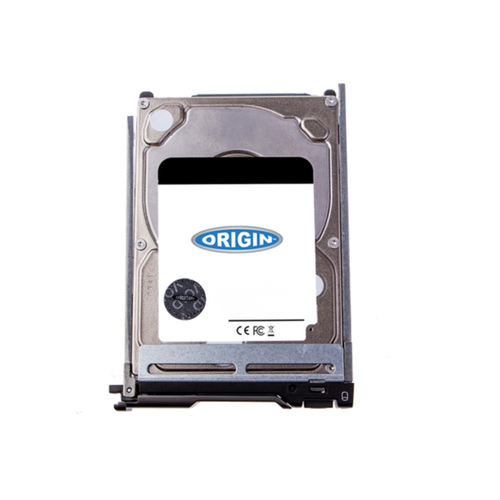

Origin Storage HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy vs Origin Storage 2TB 7.2K P/Edge C2100 Series

37specifications compared
14differ
23identical
6known for one product only

Key differences

HDD capacity
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:1.2 TB
- 2TB 7.2K P/Edge C2100 Series:2 TB
HDD speed
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:10000 RPM
- 2TB 7.2K P/Edge C2100 Series:7200 RPM
Interface
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:SAS
- 2TB 7.2K P/Edge C2100 Series:NL-SATA
Hot-swap
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:No
- 2TB 7.2K P/Edge C2100 Series:Yes
HDD interface transfer rate
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:12 Gbit/s
- 2TB 7.2K P/Edge C2100 Series:6 Gbit/s
HDD number of heads
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:6
- 2TB 7.2K P/Edge C2100 Series:10
Average latency
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:2.9 ms
- 2TB 7.2K P/Edge C2100 Series:4.16 ms
Power consumption (idle)
- HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy:4.26 W
- 2TB 7.2K P/Edge C2100 Series:4.12 W

Side by side

Differences highlightedShow differences only

Comparison of DELL-1200SAS/10-S15, DELL-2TBNLSA/7-S18
43 specifications	A Origin Storage HDD 1.2TB 2.5in SAS 10000RPM in Hot Swap Caddy Model DELL-1200SAS/10-S15 View product	B Origin Storage 2TB 7.2K P/Edge C2100 Series Model DELL-2TBNLSA/7-S18 View product
Features7 differ
HDD capacityDiffers	1.2 TB	2 TB
HDD speedDiffers	10000 RPM	7200 RPM
HDD size	2.5"	2.5"
InterfaceDiffers	SAS	NL-SATA
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swapDiffers	No	Yes
Storage drive buffer size	128 MB	128 MB
HDD interface transfer rateDiffers	12 Gbit/s	6 Gbit/s
HDD number of headsDiffers	6	10
Average latencyDiffers	2.9 ms	4.16 ms
SMART technologyKnown for one	Yes	Unknown — not stated by the source
Bytes per sector	512	512
Refurbished	No	No
Mean time between failures (MTBF)	2000000 h	2000000 h
HDD sustained transfer rateKnown for one	Unknown — not stated by the source	136 MiB/s
24/7 operationKnown for one	Unknown — not stated by the source	No
Power4 differ
Power consumption (typical)Known for one	7.25 W	Unknown — not stated by the source
Power consumption (idle)Differs	4.26 W	4.12 W
Power consumption (read)Differs	6.02 W	4.44 W
Power consumption (write)Differs	5.97 W	4.6 W
Operating voltage	5 V	5 V
Start-up currentDiffers	0.44 A	0.97 A
Operational conditions2 differ
Operating temperature (T-T)	5 - 55 °C	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Storage relative humidity (H-H)	5 - 95%	5 - 95%
Operating vibration	0.5 G	0.5 G
Non-operating vibration	3 G	3 G
Operating altitudeDiffers	-304.8 - 3048 m	304.8 - 12192 m
Non-operating altitude	-304.8 - 12192 m	-304.8 - 12192 m
Operating shockDiffers	40 G	25 G
Non-operating shock	400 G	400 G
Packaging contentidentical
Storage drive adapter included	No	No
Storage drive caddy includedKnown for one	Unknown — not stated by the source	Yes
Weight & dimensionsidentical
Width	70.1 mm	70.1 mm
Depth	100.5 mm	100.5 mm
Height	15 mm	15 mm
Weight	320 g	320 g
Logistics dataidentical
Harmonized System (HS) code	84717050	84717050
Other features1 differ
Compliance certificates	RoHS	RoHS
Compatible productsDiffers	PowerEdge M520/M620/M820	DELL-2TBNLSA/7-S18
Warranty periodKnown for one	5 year(s)	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
