Product comparison · 2 interface hubs

Manhattan USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R vs Manhattan USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable

20specifications compared
14differ
6identical
12known for one product only

Key differences

Ports quantity
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:7

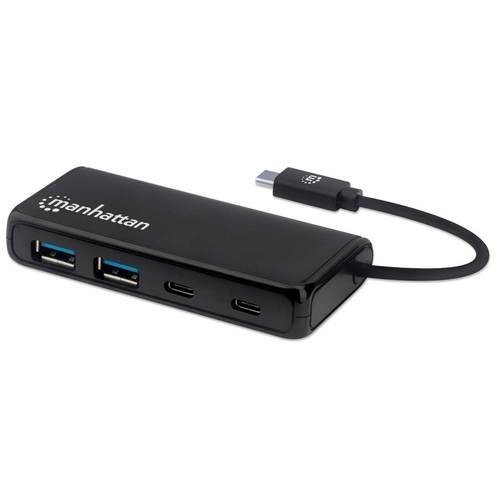

- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:7
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:2
Cable length
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:1 m
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:0.135 m
Certification
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:USB 3.0, FCC, CE, RoHS, WEEE
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:RoHS, CE, FCC, WEEE
Width
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:32 mm
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:45 mm
Depth
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:158 mm
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:90 mm
Height
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:80 mm
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:15 mm
Weight
- USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R:330 g
- USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable:39 g

Side by side

Differences highlightedShow differences only

Comparison of 164405, 164894
32 specifications	A Manhattan USB-A 7-Port Hub Industrial, 7x USB-A Ports, 5 Gbps (USB 3.2 Gen1 aka USB 3.0), 20 kV ESD Protection, A/C, Bus and Terminal-Block Power Options, DIN R Model 164405 View product	B Manhattan USB-C Dock/Hub, Ports (x4): USB-A (x2) and USB-C (x2), 5 Gbps (USB 3.2 Gen1 aka USB 3.0), External Power Supply Not Needed, Cable Model 164894 View product
Ports & interfaces4 differ
Ports quantityDiffers	7	4
Host interfaceDiffers	USB 3.2 Gen 1 (3.1 Gen 1) Type-B	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfacesDiffers	USB 3.2 Gen 1 (3.1 Gen 1) Type-A	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers	7	2
DC-in jackKnown for one	Yes	Unknown — not stated by the source
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantityKnown for one	Unknown — not stated by the source	2
Features3 differ
Data transfer rate	5000 Mbit/s	5000 Mbit/s
Housing materialDiffers	Metal	Acrylonitrile butadiene styrene (ABS)
Product colour	Black	Black
LED indicatorsKnown for one	Yes	Unknown — not stated by the source
Cable lengthDiffers	1 m	0.135 m
Plug and PlayKnown for one	Yes	Unknown — not stated by the source
CertificationDiffers	USB 3.0, FCC, CE, RoHS, WEEE	RoHS, CE, FCC, WEEE
AWG wire sizeKnown for one	Unknown — not stated by the source	24
Poweridentical
Power consumption (typical)Known for one	32 W	Unknown — not stated by the source
Input voltageKnown for one	9 - 40 V	Unknown — not stated by the source
Output currentKnown for one	Unknown — not stated by the source	1 A
System requirements2 differ
Windows operating systems supportedDiffers	Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP Home	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic
Mac operating systems supportedDiffers	Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, M	Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS
Linux operating systems supportedKnown for one	Unknown — not stated by the source	Yes
Weight & dimensions4 differ
WidthDiffers	32 mm	45 mm
DepthDiffers	158 mm	90 mm
HeightDiffers	80 mm	15 mm
WeightDiffers	330 g	39 g
Packaging dataidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging contentidentical
Cables includedKnown for one	USB	Unknown — not stated by the source
Quick installation guide	Yes	Yes
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C	-20 - 60 °C
Operating relative humidity (H-H)Differs	0 - 96%	5 - 90%
Logistics dataidentical
Harmonized System (HS) codeKnown for one	84719000	Unknown — not stated by the source
Technical detailsidentical
Compliance certificatesKnown for one	CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
