Product comparison · 2 interface cards/adapters

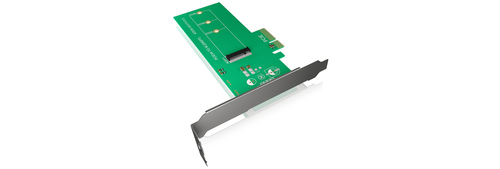

ICY BOX IB-CVB513 interface cards/adapter Internal SATA vs ICY BOX IB-CVB515 interface cards/adapter Internal mSATA

Key differences

Host interface
- IB-CVB513 interface cards/adapter Internal SATA:M.2
- IB-CVB515 interface cards/adapter Internal mSATA:SATA
Output interface
- IB-CVB513 interface cards/adapter Internal SATA:SATA
- IB-CVB515 interface cards/adapter Internal mSATA:mSATA
Width
- IB-CVB513 interface cards/adapter Internal SATA:137 mm
- IB-CVB515 interface cards/adapter Internal mSATA:105 mm
Depth
- IB-CVB513 interface cards/adapter Internal SATA:64 mm
- IB-CVB515 interface cards/adapter Internal mSATA:70 mm
Height
- IB-CVB513 interface cards/adapter Internal SATA:11 mm
- IB-CVB515 interface cards/adapter Internal mSATA:5 mm
Weight
- IB-CVB513 interface cards/adapter Internal SATA:113 g
- IB-CVB515 interface cards/adapter Internal mSATA:100 g

Differences highlightedShow differences only

Comparison of IB-CVB513, IB-CVB515
25 specifications	A ICY BOX IB-CVB513 interface cards/adapter Internal SATA Model IB-CVB513 View product	B ICY BOX IB-CVB515 interface cards/adapter Internal mSATA Model IB-CVB515 View product
Ports & interfaces2 differ
Host interfaceDiffers	M.2	SATA
Output interfaceDiffers	SATA	mSATA
SATA revision	3.0	3.0
Internal SATA ports quantity	1	1
Peripheral (Molex) power connectors (4-pin)Known for one	1	Unknown — not stated by the source
Internal mSATA ports quantityKnown for one	Unknown — not stated by the source	1
Designidentical
Internal	Yes	Yes
Product colour	Green	Green
Country of origin	China	China
Featuresidentical
ChipsetKnown for one	JMB572	Unknown — not stated by the source
Data transfer rate (max)Known for one	6 Gbit/s	Unknown — not stated by the source
System requirementsidentical
Windows operating systems supported	Yes	Yes
Mac operating systems supported	Yes	Yes
Weight & dimensions4 differ
WidthDiffers	137 mm	105 mm
DepthDiffers	64 mm	70 mm
HeightDiffers	11 mm	5 mm
WeightDiffers	113 g	100 g
Packaging dataidentical
Mounting brackets included	Yes	Yes
Manual	Yes	Yes
Package width	160 mm	160 mm
Package depth	125 mm	125 mm
Package height	25 mm	25 mm
Package weight	200 g	200 g
Logistics dataidentical
Harmonized System (HS) code	84733020	84733020
Other featuresidentical
Material	Plastic	Plastic

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
