Product comparison · 2 interface cards/adapters

Brainboxes UC-049 interface cards/adapter Internal Serial vs Brainboxes USB RS422/485 8 WAY HUB

Add a product
  • 18specifications compared
  • 17differ
  • 1identical
  • 23known for one product only

Key differences

  • Host interface
    • PCI
    • USB Type-B
  • Serial ports quantity
    • 4
    • 8
  • Serial interface type
    • RS-232
    • DB9
  • Internal
    • Yes
    • No
  • Product colour
    • Green
    • Black
  • FIFO (First In, First Out)
    • 128 B
    • 256 B
  • Width
    • 18 mm
    • 123 mm
  • Depth
    • 134 mm
    • 215 mm

Side by side

Differences highlightedShow differences only
41 specifications
A

Brainboxes

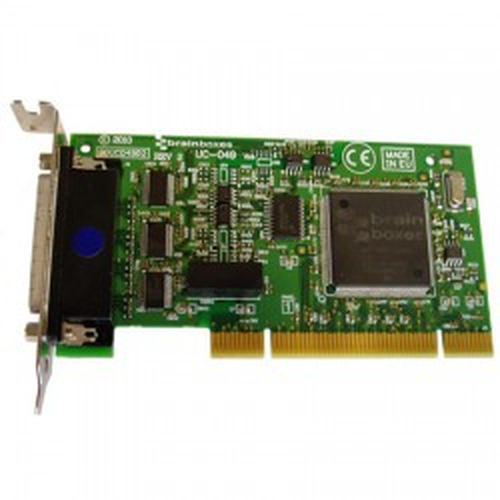

UC-049 interface cards/adapter Internal Serial

Model UC-049

View product
B

Brainboxes

USB RS422/485 8 WAY HUB

Model US-601

View product
Ports & interfaces3 differ
Host interfaceDiffersPCIUSB Type-B
Output interfaceSerialSerial
Host interface genderKnown for oneFemale
USB 2.0 ports quantityKnown for one1
Serial ports quantityDiffers48
Serial interface typeDiffersRS-232DB9
Expansion card form factorKnown for oneLow-profile
Expansion card standardKnown for onePCI 3.0
Connector(s)Known for oneDB9
Design2 differ
InternalDiffersYesNo
Product colourDiffersGreenBlack
Country of originKnown for oneUnited Kingdom
Features1 differ
Baud rateKnown for one921.6 Kbit/s
FIFO (First In, First Out)Differs128 B256 B
Data bitsKnown for one7, 8
Stop bitsKnown for one1, 2
Full duplexKnown for oneYes
Flow control supportKnown for oneYes
Parity bitKnown for oneEven, Mark, No, Odd, Space
Flow Control typeKnown for oneDTR/DSR, RTS/CTS, XON/XOFF
Export Control Classification Number (ECCN)Known for one4A994
System requirements2 differ
Windows operating systems supportedDiffersWindows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista BusinesWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris
Mac operating systems supportedKnown for oneYes
Linux operating systems supportedKnown for oneYes
Server operating systems supportedDiffersWindows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64Windows Server 2008, Windows Server 2008 x64
Technical details1 differ
Compliance certificatesDiffersRoHSFederal Communications Commission (FCC), CE, UKCA
Weight & dimensions4 differ
WidthDiffers18 mm123 mm
DepthDiffers134 mm215 mm
HeightDiffers80 mm56 mm
WeightDiffers72 g773 g
Packaging data4 differ
Cables includedKnown for oneUSB Type-A to USB Type-B
Package widthDiffers240 mm135 mm
Package depthDiffers170 mm300 mm
Package heightDiffers60 mm80 mm
Package weightDiffers630 g965 g
Logistics dataidentical
Harmonized System (HS) codeKnown for one84718
Other featuresidentical
Maximum operating distanceKnown for one1200 m
Compatible operating systemsKnown for oneWindows XP/Server 2003/Vista/Server 2008/7 Mac OS X Linux
Connectivity technologyKnown for oneWired
Dimensions (WxDxH)Known for one18 x 134 x 80 mm
Package dimensions (WxDxH)Known for one240 x 170 x 60 mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
