Product comparison · 2 interface cards/adapters

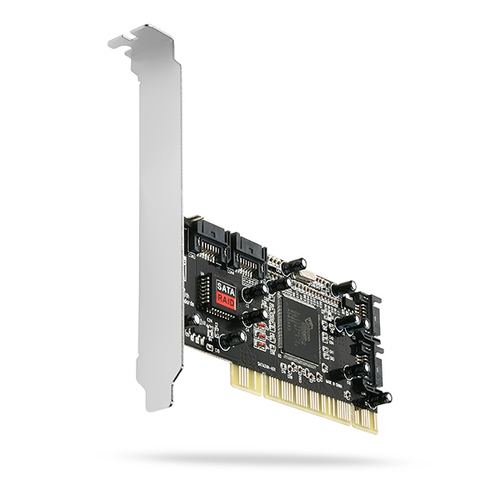

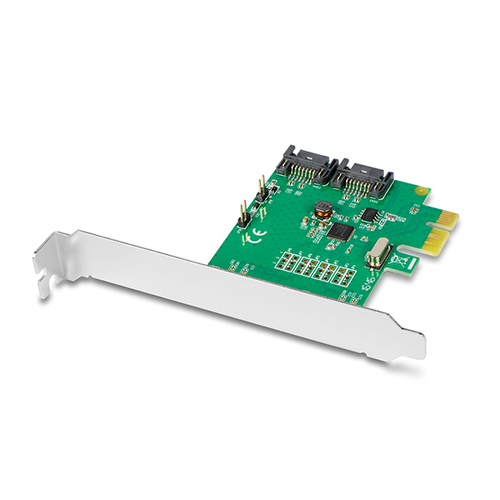

Axagon PCES-SA2 interface cards/adapter Internal SATA vs Axagon PCIS-50 interface cards/adapter Internal SATA

19specifications compared
6differ
13identical
9known for one product only

Key differences

Host interface
- PCES-SA2 interface cards/adapter Internal SATA:PCIe
- PCIS-50 interface cards/adapter Internal SATA:PCI
Expansion card form factor
- PCES-SA2 interface cards/adapter Internal SATA:Full-height / Half-length
- PCIS-50 interface cards/adapter Internal SATA:Full-height / Full-length
Expansion card standard
- PCES-SA2 interface cards/adapter Internal SATA:PCIe 2.0
- PCIS-50 interface cards/adapter Internal SATA:PCI 2.3
Internal SATA ports quantity
- PCES-SA2 interface cards/adapter Internal SATA:2
- PCIS-50 interface cards/adapter Internal SATA:4
Certification
- PCES-SA2 interface cards/adapter Internal SATA:CE, FCC
- PCIS-50 interface cards/adapter Internal SATA:CE

Side by side

Differences highlightedShow differences only

Comparison of PCES-SA2, PCIS-50
28 specifications	A Axagon PCES-SA2 interface cards/adapter Internal SATA Model PCES-SA2 View product	B Axagon PCIS-50 interface cards/adapter Internal SATA Model PCIS-50 View product
Ports & interfaces4 differ
Host interfaceDiffers	PCIe	PCI
Output interface	SATA	SATA
Expansion card form factorDiffers	Full-height / Half-length	Full-height / Full-length
Expansion card standardDiffers	PCIe 2.0	PCI 2.3
SATA revision	3.0	3.0
Internal SATA ports quantityDiffers	2	4
Port multiplierKnown for one	Yes	Unknown — not stated by the source
Design1 differ
Internal	Yes	Yes
Purpose	PC	PC
Hot-Plug support	Yes	Yes
Country of origin	China	China
CertificationDiffers	CE, FCC	CE
Featuresidentical
Data transfer rate (max)Known for one	Unknown — not stated by the source	1.5 Gbit/s
FIFO (First In, First Out)Known for one	Unknown — not stated by the source	256 B
RAID levelsKnown for one	Unknown — not stated by the source	0, 1, 5, 10
Plug and Play	Yes	Yes
BandwidthKnown for one	5 Gbit/s	Unknown — not stated by the source
TRIM supportKnown for one	Yes	Unknown — not stated by the source
Native Command Queuing (NCQ)Known for one	Yes	Unknown — not stated by the source
System requirements1 differ
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported	Yes	Yes
Server operating systems supportedDiffers	Windows Server 2003, Windows Server 2008, Windows Server 2012	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016
Technical detailsidentical
Compliance certificates	RoHS	RoHS
Warranty period	3 year(s)	3 year(s)
Packaging dataidentical
Cables includedKnown for one	Unknown — not stated by the source	SATA
Drivers includedKnown for one	Unknown — not stated by the source	Yes
Quick installation guide	Yes	Yes
Package type	Box	Box

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
