Product comparison · 2 hardware firewalls

D-Link DFL-160 hardware firewall 0.07 Gbit/s vs D-Link DFL - 1660 Network Security UTM Firewall

16specifications compared
9differ
7identical
31known for one product only

Key differences

Firewall throughput
- DFL-160 hardware firewall 0.07 Gbit/s:0.07 Gbit/s
- DFL - 1660 Network Security UTM Firewall:1.2 Gbit/s
VPN tunnels quantity
- DFL-160 hardware firewall 0.07 Gbit/s:30
- DFL - 1660 Network Security UTM Firewall:2500
Management protocols
- DFL-160 hardware firewall 0.07 Gbit/s:SNTP, UDP
- DFL - 1660 Network Security UTM Firewall:SNMP v1, v2c
USB 2.0 ports quantity
- DFL-160 hardware firewall 0.07 Gbit/s:1
- DFL - 1660 Network Security UTM Firewall:2
Operating temperature (T-T)
- DFL-160 hardware firewall 0.07 Gbit/s:0 - 50 °C
- DFL - 1660 Network Security UTM Firewall:0 - 40 °C
Dimensions (WxDxH)
- DFL-160 hardware firewall 0.07 Gbit/s:150 x 220 x 32.5 mm
- DFL - 1660 Network Security UTM Firewall:440 x 400 x 44 mm
Firewall throughput
- DFL-160 hardware firewall 0.07 Gbit/s:70 Mbit/s
- DFL - 1660 Network Security UTM Firewall:1200 Mbit/s

Side by side

Differences highlightedShow differences only

Comparison of DFL-160, DFL - 1660 Network Security UTM Firewall

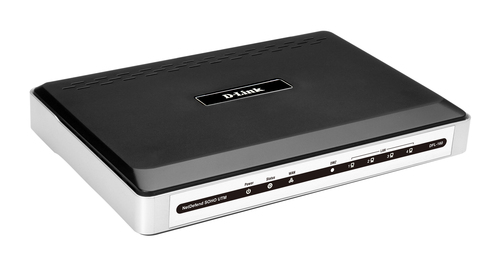

47 specifications	A D-Link DFL-160 hardware firewall 0.07 Gbit/s Model DFL-160 View product	B D-Link DFL - 1660 Network Security UTM Firewall View product
Data transmission1 differ
Maximum data transfer rateKnown for one	1 Gbit/s	Unknown — not stated by the source
Firewall throughputDiffers	0.07 Gbit/s	1.2 Gbit/s
VPN throughputKnown for one	Unknown — not stated by the source	0.35 Gbit/s
Performanceidentical
Built-in processorKnown for one	Yes	Unknown — not stated by the source
Internal memoryKnown for one	128 MB	Unknown — not stated by the source
Processor familyKnown for one	Intel IXP435	Unknown — not stated by the source
Processor frequencyKnown for one	400 MHz	Unknown — not stated by the source
Concurrent connectionsKnown for one	Unknown — not stated by the source	600000
Mean time between failures (MTBF)Known for one	Unknown — not stated by the source	400000 h
Network1 differ
VPN tunnels quantityDiffers	30	2500
Local user databaseKnown for one	250	Unknown — not stated by the source
DHCP client	Yes	Yes
DHCP server	Yes	Yes
Multicast support	Yes	Yes
Port forwardingKnown for one	Yes	Unknown — not stated by the source
Security2 differ
Firewall securityDiffers	NAT, PAT	DES/ 3DES/ AES/ Twofish/ Blowfish/ CAST-128;
VPN supportDiffers	ESP, SSVPN, Remote Access VPN, DES/3DES/AES/Twofish/Blowfish/CAST-128/NULL, IKE, PPTP/L2TP/IPSec	PPTP/L2TP Server; Hub & Spoke; IPSec NAT Traversal;
Protocols1 differ
Management protocolsDiffers	SNTP, UDP	SNMP v1, v2c
Supported network protocolsKnown for one	HTTP, FTP, SMTP, POP3	Unknown — not stated by the source
Routing protocolsKnown for one	Unknown — not stated by the source	OSPF
Management featuresidentical
LED indicatorsKnown for one	Yes	Unknown — not stated by the source
Management platformKnown for one	D-Link NTP	Unknown — not stated by the source
Web-based management	Yes	Yes
Connectivity LEDsKnown for one	4	Unknown — not stated by the source
Logging and monitoringKnown for one	Yes	Unknown — not stated by the source
Ports & interfaces1 differ
Connectivity technology	Wired	Wired
USB 2.0 ports quantityDiffers	1	2
Ethernet LAN (RJ-45) portsKnown for one	4	Unknown — not stated by the source
Ethernet DMZ ports quantityKnown for one	1	Unknown — not stated by the source
RS-232 ports	1	1
Storageidentical
Flash memoryKnown for one	128 MB	Unknown — not stated by the source
Poweridentical
Peak powerKnown for one	20 W	Unknown — not stated by the source
Operational conditions1 differ
Operating temperature (T-T)Differs	0 - 50 °C	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-20 - 70 °C
Weight & dimensions1 differ
Dimensions (WxDxH)Differs	150 x 220 x 32.5 mm	440 x 400 x 44 mm
WeightKnown for one	480 g	Unknown — not stated by the source
Other features1 differ
Authentication methodKnown for one	MD5, SHA-1, XAUTH	Unknown — not stated by the source
Firewall throughputDiffers	70 Mbit/s	1200 Mbit/s
Maximum data transfer rateKnown for one	1000 Mbit/s	Unknown — not stated by the source
Technical featuresKnown for one	3DES/AES: 25 Mbps; IDP/Antivirus: 15 Mbps; PPTP @ MPPE; IGMP 3; D-Link DDNS, DynDNS.org; ALG: HTTP, FTP, POP3, SMTP, TFTP; ZIP, GZIP.	Unknown — not stated by the source
InterfaceKnown for one	Unknown — not stated by the source	Gigabit
SafetyKnown for one	Unknown — not stated by the source	cUL, CB
Power supply typeKnown for one	Unknown — not stated by the source	80 PLUS
VPN throughputKnown for one	Unknown — not stated by the source	350 Mbit/s
I/O portsKnown for one	Unknown — not stated by the source	6 x Gigabit
Certificatesidentical
CertificationKnown for one	Unknown — not stated by the source	FCC Class A CE Class A C-Tick VCCI

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
