Product comparison · 2 gpus

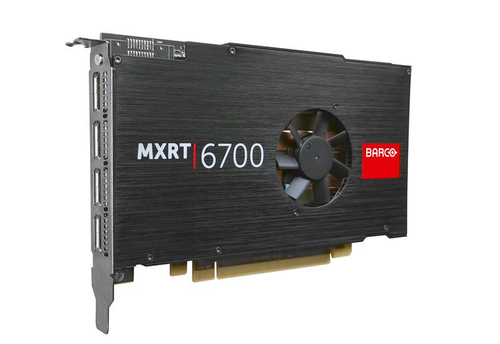

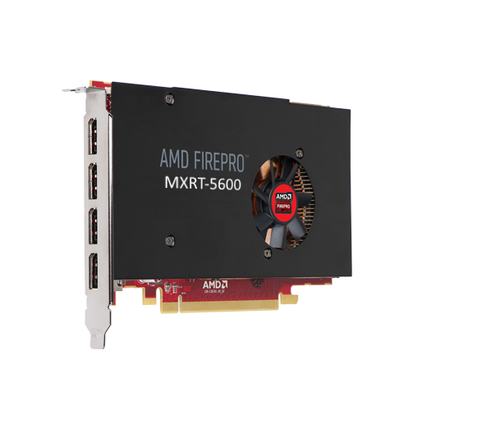

Barco MXRT-5600 AMD FirePro TM vs Barco MXRT-6700 AMD

22specifications compared
12differ
10identical
10known for one product only

Key differences

Discrete graphics card memory
- MXRT-5600 AMD FirePro TM:4 GB
- MXRT-6700 AMD:8 GB
Memory bus
- MXRT-5600 AMD FirePro TM:128 bit
- MXRT-6700 AMD:32 bit
Memory bandwidth (max)
- MXRT-5600 AMD FirePro TM:96 GB/s
- MXRT-6700 AMD:160 GB/s
DisplayPort version
- MXRT-5600 AMD FirePro TM:1.2
- MXRT-6700 AMD:1.4
DirectX version
- MXRT-5600 AMD FirePro TM:11.2
- MXRT-6700 AMD:12.0
Shader model version
- MXRT-5600 AMD FirePro TM:5.0
- MXRT-6700 AMD:5.1
OpenGL version
- MXRT-5600 AMD FirePro TM:4.4
- MXRT-6700 AMD:4.5
Product colour
- MXRT-5600 AMD FirePro TM:Black, Red
- MXRT-6700 AMD:Black

Side by side

Differences highlightedShow differences only

Comparison of MXRT-5600, MXRT-6700
32 specifications	A Barco MXRT-5600 AMD FirePro TM Model MXRT-5600 View product	B Barco MXRT-6700 AMD Model MXRT-6700 View product
Processoridentical
Graphics processor family	AMD	AMD
Graphics processorKnown for one	FirePro TM	Unknown — not stated by the source
Memory3 differ
Discrete graphics card memoryDiffers	4 GB	8 GB
Graphics card memory type	GDDR5	GDDR5
Memory busDiffers	128 bit	32 bit
Memory bandwidth (max)Differs	96 GB/s	160 GB/s
Ports & interfaces1 differ
Interface type	PCI Express x16 3.0	PCI Express x16 3.0
HDMI ports quantity	0	0
DVI-D ports quantity	0	0
DVI-I ports quantity	0	0
DisplayPorts quantity	4	4
DisplayPort versionDiffers	1.2	1.4
VGA (D-Sub) ports quantity	0	0
Performance3 differ
TV tuner integratedKnown for one	No	Unknown — not stated by the source
DirectX versionDiffers	11.2	12.0
Shader model versionDiffers	5.0	5.1
OpenGL versionDiffers	4.4	4.5
OpenCL versionKnown for one	2.0	Unknown — not stated by the source
Dual Link DVIKnown for one	No	Unknown — not stated by the source
Design2 differ
Cooling typeKnown for one	Active	Unknown — not stated by the source
Number of slotsKnown for one	4	Unknown — not stated by the source
Product colourDiffers	Black, Red	Black
CertificationDiffers	FCC Part 15 Class B, EN 55022 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 22/24, IEC60950-1, VCCI, CSA C22.2, EU RoHS directive (2011/65/EC), Certificate of Information & Communication Equipment (Republic of Korea), CAN ICES-3(B)/NMB-3(B)	FCC Part 15 Class B, CE EN 55032 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 32/24, IEC609050-1, VCCI, CSA C22.2
Poweridentical
Power consumption (typical)	75 W	75 W
Operational conditionsidentical
Operating temperature (T-T)Known for one	0 - 45 °C	Unknown — not stated by the source
System requirements1 differ
Windows operating systems supportedDiffers	Yes	Windows 10, Windows 7
Weight & dimensions2 differ
LengthDiffers	184.2 mm	173 mm
HeightDiffers	111 mm	112 mm
Packaging contentidentical
Interface adapters includedKnown for one	DVI-I female - DisplayPort male	Unknown — not stated by the source
ManualKnown for one	Unknown — not stated by the source	Yes
Technical detailsidentical
Compliance certificates	RoHS	RoHS
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	84733020

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
