Product comparison · 2 gateways/controllers

Zyxel UAG2100 gateway/controller vs Zyxel UAG5100 gateway/controller

Add a product
  • 11specifications compared
  • 6differ
  • 5identical
  • 13known for one product only

Key differences

  • Power consumption (typical)
    • 28 W
    • 25 W
  • Weight
    • 1.46 kg
    • 2.36 kg
  • Package weight
    • 2.3 kg
    • 3.7 kg
  • Operating temperature (T-T)
    • 0 - 40 °C
    • 0 - 45 °C
  • Storage temperature (T-T)
    • -30 - 70 °C
    • -40 - 70 °C
  • Certification
    • FCC, CE EMC, C-Tick, BSMI
    • FCC, CE EMC, C-Tick

Side by side

Differences highlightedShow differences only
24 specifications
A

Zyxel

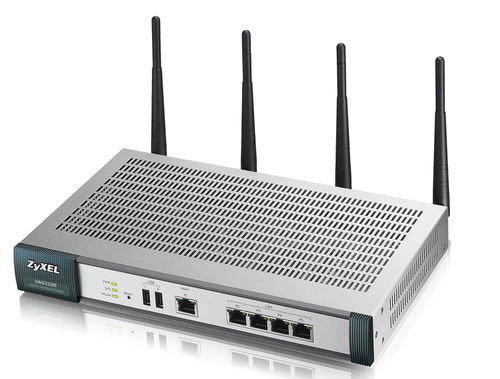

UAG2100 gateway/controller

Model UAG2100

View product
B

Zyxel

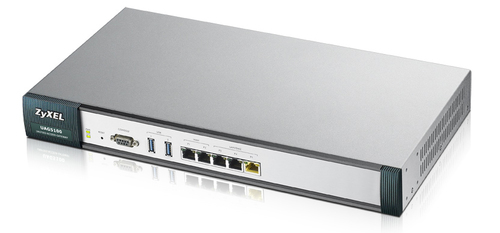

UAG5100 gateway/controller

Model UAG5100

View product
Designidentical
LED indicatorsYesYes
Featuresidentical
Short Message Service (SMS)Known for oneYes
Antenna typeKnown for oneExternal
Networkidentical
Networking standardsKnown for oneIEEE 802.3at
Wi-FiKnown for oneYes
WLAN data transfer rates supportedKnown for one150 Mbit/s
Frequency bandKnown for one2.4 & 5
Cabling technologyKnown for one10/100/1000Base-T(X)
Ports & interfacesidentical
USB 2.0 ports quantityKnown for one2
Ethernet LAN (RJ-45) ports55
Power1 differ
Power requirementsKnown for one100-240, 50/60
Power consumption (typical)Differs28 W25 W
Power over Ethernet (PoE)Known for oneYes
Input currentKnown for one3 A
Weight & dimensions1 differ
WeightDiffers1.46 kg2.36 kg
Dimensions (WxDxH)Known for one382 x 205 x 44 mm
Packaging data1 differ
Package weightDiffers2.3 kg3.7 kg
Operational conditions2 differ
Operating temperature (T-T)Differs0 - 40 °C0 - 45 °C
Storage temperature (T-T)Differs-30 - 70 °C-40 - 70 °C
Operating relative humidity (H-H)10 - 90%10 - 90%
Storage relative humidity (H-H)10 - 90%10 - 90%
Technical detailsidentical
Package dimensions (WxDxH)Known for one444 x 295 x 152 mm
Certificates1 differ
CertificationDiffersFCC, CE EMC, C-Tick, BSMIFCC, CE EMC, C-Tick
SafetyLVD (EN60950-1), BSMILVD (EN60950-1), BSMI

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
