Product comparison · 2 gateways/controllers

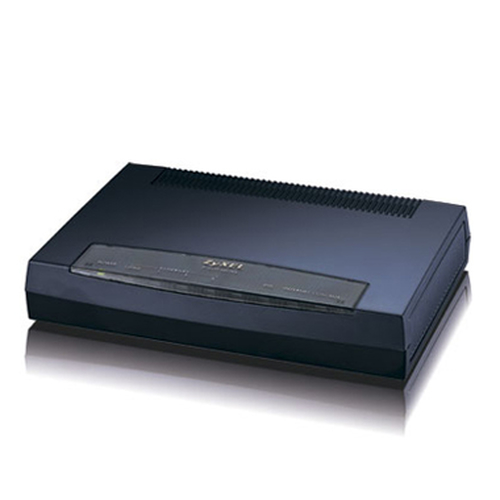

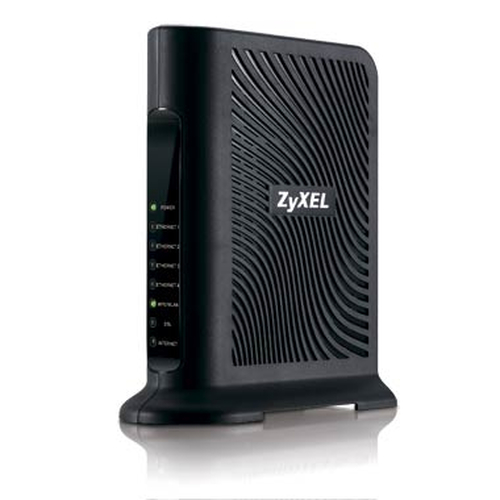

Zyxel P-660HN-T1A gateway/controller vs Zyxel P-662H gateway/controller

14specifications compared
6differ
8identical
16known for one product only

Key differences

LED indicators
- P-660HN-T1A gateway/controller:Yes
- P-662H gateway/controller:Power
Antenna gain level (max)
- P-660HN-T1A gateway/controller:3.5 dBi
- P-662H gateway/controller:5 dBi
Weight
- P-660HN-T1A gateway/controller:200 g
- P-662H gateway/controller:360 g
Dimensions (WxDxH)
- P-660HN-T1A gateway/controller:133 x 61 x 163 mm
- P-662H gateway/controller:180 x 128 x 36 mm
Storage relative humidity (H-H)
- P-660HN-T1A gateway/controller:20 - 90%
- P-662H gateway/controller:10 - 90%
Certification
- P-660HN-T1A gateway/controller:CE, FCC
- P-662H gateway/controller:FCC, CE

Side by side

Differences highlightedShow differences only

Comparison of P-660HN-T1A, P-662H
30 specifications	A Zyxel P-660HN-T1A gateway/controller Model P-660HN-T1A View product	B Zyxel P-662H gateway/controller Model P-662H View product
Design1 differ
LED indicatorsDiffers	Yes	Power
Features1 differ
Antenna gain level (max)Differs	3.5 dBi	5 dBi
Protocolsidentical
Routing protocols	RIP-1, RIP-2	RIP-1, RIP-2
Supported protocolsKnown for one	Unknown — not stated by the source	SUA/Multi-NAT Internet Sharing Multimedia Support DHCP Server/Relay/Client DNS Proxy Dynamic DNS UPnP Support
Networkidentical
Wi-Fi	Yes	Yes
WLAN data transfer rates supportedKnown for one	150 Mbit/s	Unknown — not stated by the source
Frequency bandKnown for one	2.4 GHz	Unknown — not stated by the source
Wireless connectionKnown for one	Unknown — not stated by the source	Yes
VPN supportKnown for one	Unknown — not stated by the source	20 IPSec VPN tunnels AES NETBIOS pass-through for IPSec IPSec VPN keep-alive IPSec NAT Traversal IPSec PKI
Securityidentical
Security algorithmsKnown for one	128-bit WEP, 64-bit WEP, EAP-MD5, EAP-TLS, EAP-TTLS, WPA, WPA2	Unknown — not stated by the source
Firewall securityKnown for one	Yes	Unknown — not stated by the source
MAC address filteringKnown for one	Unknown — not stated by the source	Yes
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	4	4
USB 2.0 ports quantityKnown for one	Unknown — not stated by the source	0
Management featuresidentical
Management platformKnown for one	CLI	Unknown — not stated by the source
Poweridentical
Input voltage	12 V	12 V
Input current	1 A	1 A
Weight & dimensions2 differ
WeightDiffers	200 g	360 g
Dimensions (WxDxH)Differs	133 x 61 x 163 mm	180 x 128 x 36 mm
Packaging dataidentical
Package weightKnown for one	500 g	Unknown — not stated by the source
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%	20 - 85%
Storage relative humidity (H-H)Differs	20 - 90%	10 - 90%
Technical detailsidentical
Package dimensions (WxDxH)Known for one	240 x 178 x 73 mm	Unknown — not stated by the source
User Guide on CD-ROMKnown for one	Unknown — not stated by the source	Yes
Certificates1 differ
CertificationDiffers	CE, FCC	FCC, CE
SafetyKnown for one	CE, CSA	Unknown — not stated by the source
Packaging contentidentical
ManualKnown for one	Unknown — not stated by the source	Yes
Quick start guideKnown for one	Unknown — not stated by the source	Yes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
