Product comparison · 2 gateways/controllers

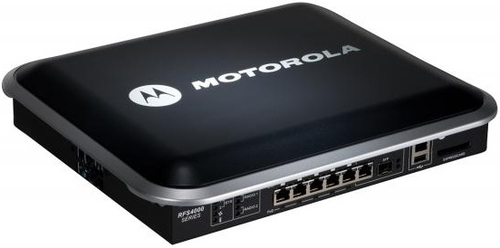

Zebra NX-7530 gateway/controller 10, 100, 1000 Mbit/s vs Zebra RFS 4000

9specifications compared
5differ
4identical
18known for one product only

Key differences

Power consumption (typical)
- NX-7530 gateway/controller 10, 100, 1000 Mbit/s:110 W
- RFS 4000:150 W
Weight
- NX-7530 gateway/controller 10, 100, 1000 Mbit/s:21 kg
- RFS 4000:2.15 kg
Dimensions (WxDxH)
- NX-7530 gateway/controller 10, 100, 1000 Mbit/s:430 x 532 x 42 mm
- RFS 4000:304.8 x 254 x 44.5 mm
Storage temperature (T-T)
- NX-7530 gateway/controller 10, 100, 1000 Mbit/s:-20 - 75 °C
- RFS 4000:-40 - 70 °C
Storage relative humidity (H-H)
- NX-7530 gateway/controller 10, 100, 1000 Mbit/s:5 - 95%
- RFS 4000:5 - 85%

Side by side

Differences highlightedShow differences only

Comparison of NX-7530, RFS 4000
27 specifications	A Zebra NX-7530 gateway/controller 10, 100, 1000 Mbit/s Model NX-7530 View product	B Zebra RFS 4000 View product
Designidentical
Rack capacityKnown for one	Unknown — not stated by the source	2U
Mounting typeKnown for one	Unknown — not stated by the source	Rack mounting
LED indicatorsKnown for one	Unknown — not stated by the source	Power
Protocolsidentical
Management protocolsKnown for one	Unknown — not stated by the source	SNMP v1/v2/v3
Supported network protocolsKnown for one	Unknown — not stated by the source	HTTP, HTTPS, SSL, SNTP, SSH
Networkidentical
Wi-FiKnown for one	Unknown — not stated by the source	Yes
WLAN data transfer rates supportedKnown for one	Unknown — not stated by the source	1,2,5.5,6,9,11,12,18,24,36,48,54,300 Mbit/s
Cabling technologyKnown for one	Unknown — not stated by the source	10/100/1000Base-T(X)
Data transfer rateKnown for one	Unknown — not stated by the source	1 Gbit/s
Ethernet LAN data ratesKnown for one	10,100,1000 Mbit/s	Unknown — not stated by the source
Securityidentical
Security algorithmsKnown for one	Unknown — not stated by the source	WEP, WPA-TKIP, WPA2-TKIP
Ports & interfacesidentical
USB 2.0 ports quantityKnown for one	Unknown — not stated by the source	1
Ethernet LAN (RJ-45) portsKnown for one	Unknown — not stated by the source	6
Power1 differ
Power consumption (typical)Differs	110 W	150 W
Input voltage	100 - 240 V	100 - 240 V
Input frequency	50/60 Hz	50/60 Hz
Input currentKnown for one	Unknown — not stated by the source	2.2 A
Power supplyKnown for one	300 W	Unknown — not stated by the source
Weight & dimensions2 differ
WeightDiffers	21 kg	2.15 kg
Dimensions (WxDxH)Differs	430 x 532 x 42 mm	304.8 x 254 x 44.5 mm
Operational conditions2 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)Differs	-20 - 75 °C	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85%	5 - 85%
Storage relative humidity (H-H)Differs	5 - 95%	5 - 85%
Operating altitudeKnown for one	Unknown — not stated by the source	0 - 3000 m
Performanceidentical
Internal memoryKnown for one	16 MB	Unknown — not stated by the source
Logistics dataidentical
Harmonized System (HS) codeKnown for one	85176990	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
