Product comparison · 2 gateways/controllers

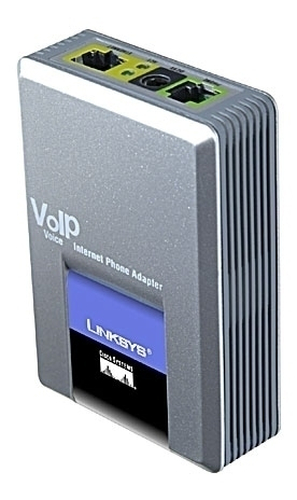

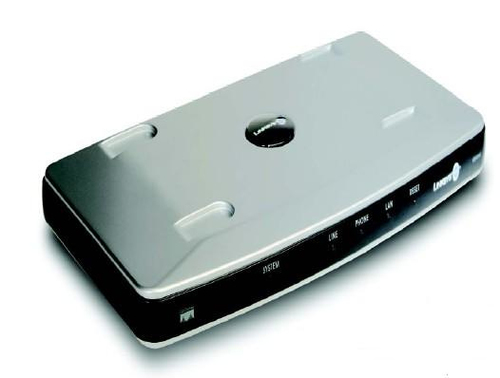

Linksys Phone Adapter + FXS Port vs Linksys VGA2000 gateway/controller

8specifications compared
8differ
0identical
14known for one product only

Key differences

Voice codecs
- Phone Adapter + FXS Port:G.711, G.723.1, G.726
- VGA2000 gateway/controller:G.729
Power requirements
- Phone Adapter + FXS Port:100-240, 50/60
- VGA2000 gateway/controller:48V DC
Weight
- Phone Adapter + FXS Port:76.5 g
- VGA2000 gateway/controller:500 g
Dimensions (WxDxH)
- Phone Adapter + FXS Port:94 x 63 x 28 mm
- VGA2000 gateway/controller:305 x 165 x 35 mm
Operating temperature (T-T)
- Phone Adapter + FXS Port:5 - 45 °C
- VGA2000 gateway/controller:0 - 40 °C
Storage temperature (T-T)
- Phone Adapter + FXS Port:-25 - 85 °C
- VGA2000 gateway/controller:-40 - 70 °C
Operating relative humidity (H-H)
- Phone Adapter + FXS Port:10 - 90%
- VGA2000 gateway/controller:20 - 95%

Side by side

Differences highlightedShow differences only

Comparison of Phone Adapter + FXS Port, VGA2000
22 specifications	A Linksys Phone Adapter + FXS Port View product	B Linksys VGA2000 gateway/controller Model VGA2000 View product
Designidentical
LED indicatorsKnown for one	Unknown — not stated by the source	Yes
Features1 differ
Voice codecsDiffers	G.711, G.723.1, G.726	G.729
Networkidentical
Networking standardsKnown for one	Unknown — not stated by the source	IEEE 802.3, IEEE 802.3af, IEEE 802.1p
Cabling technologyKnown for one	Unknown — not stated by the source	10/100Base-T(X)
Supported data transfer ratesKnown for one	Unknown — not stated by the source	10/100 Mbps
Ports & interfacesidentical
InterfaceKnown for one	Unknown — not stated by the source	RJ-11
Ethernet LAN (RJ-45) portsKnown for one	Unknown — not stated by the source	1
I/O portsKnown for one	1x Phone (FXS) 1x LAN 1x Power	Unknown — not stated by the source
Power1 differ
Power requirementsDiffers	100-240, 50/60	48V DC
Power over Ethernet (PoE)Known for one	Unknown — not stated by the source	Yes
Power consumption (typical)Known for one	5 W	Unknown — not stated by the source
Weight & dimensions2 differ
WeightDiffers	76.5 g	500 g
Dimensions (WxDxH)Differs	94 x 63 x 28 mm	305 x 165 x 35 mm
Operational conditions3 differ
Operating temperature (T-T)Differs	5 - 45 °C	0 - 40 °C
Storage temperature (T-T)Differs	-25 - 85 °C	-40 - 70 °C
Operating relative humidity (H-H)Differs	10 - 90%	20 - 95%
Storage relative humidity (H-H)Known for one	Unknown — not stated by the source	5 - 90%
Certificates1 differ
CertificationDiffers	FCC Part 15 Class B, CE, A-Tick, C-Tick	UL, CSA, CE
Protocolsidentical
Management protocolsKnown for one	HTTP, HTTPS, TFTP	Unknown — not stated by the source
Supported network protocolsKnown for one	IPv4, ARP, DHCP, ICMP, TCP, UDP, RTP, RTCP, SIPv2	Unknown — not stated by the source
Securityidentical
Security algorithmsKnown for one	256-bit AES	Unknown — not stated by the source
Logging and monitoringKnown for one	SysLog	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
