Product comparison · 2 gateways/controllers

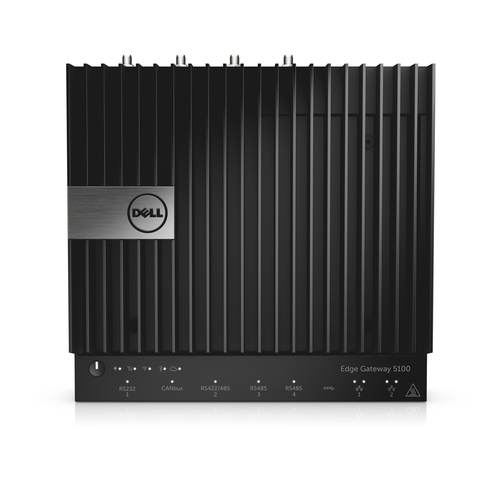

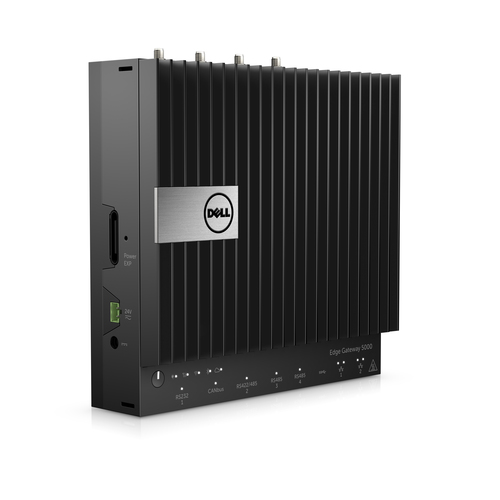

Dell Edge Gateway 5000 vs Dell Edge Gateway 5100

Key differences

Weight
- Edge Gateway 5000:3 kg
- Edge Gateway 5100:3.2 kg
Dimensions (WxDxH)
- Edge Gateway 5000:229 x 64 x 216 mm
- Edge Gateway 5100:229 x 74 x 216 mm

Differences highlightedShow differences only

Comparison of Edge Gateway 5000, Edge Gateway 5100
17 specifications	A Dell Edge Gateway 5000 View product	B Dell Edge Gateway 5100 View product
Performanceidentical
Built-in processor	Yes	Yes
Processor frequency	1330 MHz	1330 MHz
Number of processors installed	1	1
Internal memory	2048 MB	2048 MB
Internal memory type	DDR3L	DDR3L
Flash memory	32768 MB	32768 MB
Networkidentical
Wi-Fi	Yes	Yes
Ports & interfacesidentical
Number of HDMI outputs	1	1
USB 2.0 ports quantity	2	2
Ethernet LAN (RJ-45) ports	2	2
Poweridentical
Input voltageKnown for one	24 V	Unknown — not stated by the source
Input currentKnown for one	4 A	Unknown — not stated by the source
Softwareidentical
Bundled software	Ubuntu Core 16	Ubuntu Core 16
Weight & dimensions2 differ
WeightDiffers	3 kg	3.2 kg
Dimensions (WxDxH)Differs	229 x 64 x 216 mm	229 x 74 x 216 mm
Operational conditionsidentical
Operating temperature (T-T)	0 - 50 °C	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
