Product comparison · 2 gateways/controllers

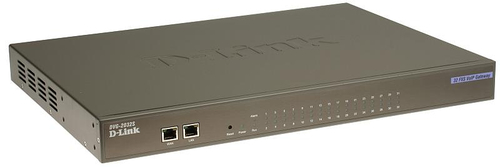

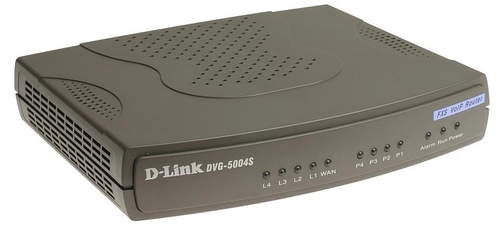

D-Link DVG-2032S gateway/controller vs D-Link DVG-5004S gateway/controller

Key differences

Ethernet LAN (RJ-45) ports
- DVG-2032S gateway/controller:2
- DVG-5004S gateway/controller:5
I/O ports
- DVG-2032S gateway/controller:32 x FXS(RJ-21)
- DVG-5004S gateway/controller:4 x FXS(RJ-11)
Power requirements
- DVG-2032S gateway/controller:90 - 260V, 50/60Hz
- DVG-5004S gateway/controller:100-240, 50/60
Input voltage
- DVG-2032S gateway/controller:90 - 260 V
- DVG-5004S gateway/controller:100 - 240 V
Weight
- DVG-2032S gateway/controller:4.1 kg
- DVG-5004S gateway/controller:430 g
Dimensions (WxDxH)
- DVG-2032S gateway/controller:442 x 330 x 43 mm
- DVG-5004S gateway/controller:202 x 172 x 35 mm

Differences highlightedShow differences only

Comparison of DVG-2032S, DVG-5004S
23 specifications	A D-Link DVG-2032S gateway/controller Model DVG-2032S View product	B D-Link DVG-5004S gateway/controller Model DVG-5004S View product
Designidentical
Mounting typeKnown for one	Rack mounting	Unknown — not stated by the source
LED indicators	Power	Power
Featuresidentical
Voice codecs	G.711, G.723.1, G.726, G.729A	G.711, G.723.1, G.726, G.729A
Protocols1 differ
Supported network protocolsDiffers	DHCP, PPPoE, PPTP, Telnet	DDNS, DHCP, PPPoE, PPTP, UPnP, DMZ, Telnet
Networkidentical
Networking standards	IEEE 802.3, IEEE 802.3u	IEEE 802.3, IEEE 802.3u
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Data transfer rate	0.1 Gbit/s	0.1 Gbit/s
Supported data transfer rates	10Mbit/s	10Mbit/s
Ports & interfaces2 differ
Ethernet LAN (RJ-45) portsDiffers	2	5
I/O portsDiffers	32 x FXS(RJ-21)	4 x FXS(RJ-11)
Power2 differ
Power requirementsDiffers	90 - 260V, 50/60Hz	100-240, 50/60
Input voltageDiffers	90 - 260 V	100 - 240 V
Input frequency	50/60 Hz	50/60 Hz
Weight & dimensions2 differ
Size (imperial)Known for one	48.3 cm (19")	Unknown — not stated by the source
WeightDiffers	4.1 kg	430 g
Dimensions (WxDxH)Differs	442 x 330 x 43 mm	202 x 172 x 35 mm
Packaging contentidentical
Manual	Yes	Yes
Operational conditionsidentical
Operating temperature (T-T)	0 - 45 °C	0 - 45 °C
Storage temperature (T-T)	-25 - 75 °C	-25 - 75 °C
Relative humidity	0 - 95%	0 - 95%
Certificatesidentical
Certification	FCC, CE	FCC, CE
Safety	UL	UL
Securityidentical
MAC address filteringKnown for one	Unknown — not stated by the source	Yes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
