Product comparison · 2 gateways/controllers

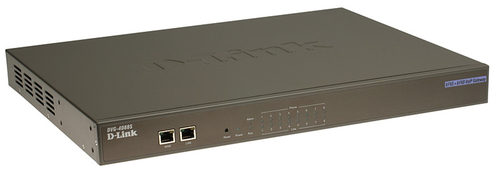

D-Link DVG-1104TH gateway/controller vs D-Link DVG-4088S gateway/controller

16specifications compared
10differ
6identical
7known for one product only

Key differences

LED indicators
- DVG-1104TH gateway/controller:LAN, Link, Power, WAN, Yes
- DVG-4088S gateway/controller:Power
Ethernet LAN (RJ-45) ports
- DVG-1104TH gateway/controller:1
- DVG-4088S gateway/controller:2
Dimensions (WxDxH)
- DVG-1104TH gateway/controller:217 x 221 x 42 mm
- DVG-4088S gateway/controller:442 x 330 x 43 mm
Operating temperature (T-T)
- DVG-1104TH gateway/controller:0 - 50 °C
- DVG-4088S gateway/controller:0 - 45 °C
Storage temperature (T-T)
- DVG-1104TH gateway/controller:-30 - 60 °C
- DVG-4088S gateway/controller:-10 - 55 °C
Relative humidity
- DVG-1104TH gateway/controller:5 - 95%
- DVG-4088S gateway/controller:0 - 90%
Safety
- DVG-1104TH gateway/controller:UL, TUV/GS, LVD
- DVG-4088S gateway/controller:UL, CUL, EN

Side by side

Differences highlightedShow differences only

Comparison of DVG-1104TH, DVG-4088S
23 specifications	A D-Link DVG-1104TH gateway/controller Model DVG-1104TH View product	B D-Link DVG-4088S gateway/controller Model DVG-4088S View product
Design1 differ
LED indicatorsDiffers	LAN, Link, Power, WAN, Yes	Power
Features1 differ
Voice codecsDiffers	G.711, G.723.1, G.729, G.729A	G.711, G.723.1, G.726, G.729A
Protocols1 differ
Supported network protocolsDiffers	DHCP, TFTP, DTMF/FSK, QoS/ToS	DHCP, PPPoE, PPTP, Telnet
Networkidentical
Networking standards	IEEE 802.3, IEEE 802.3u	IEEE 802.3, IEEE 802.3u
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Data transfer rate	0.1 Gbit/s	0.1 Gbit/s
Supported data transfer rates	10Mbit/s	10Mbit/s
Ports & interfaces2 differ
Ethernet LAN (RJ-45) portsDiffers	1	2
I/O portsDiffers	4 x FXO 1 x RS-232	8 x FXS(RJ-21) 8 x FXO(RJ-21)
Poweridentical
Power requirementsKnown for one	Unknown — not stated by the source	90 - 260V, 50/60Hz
Input voltageKnown for one	Unknown — not stated by the source	90 - 260 V
Input frequencyKnown for one	Unknown — not stated by the source	50/60 Hz
Weight & dimensions1 differ
WeightKnown for one	Unknown — not stated by the source	4.1 kg
Dimensions (WxDxH)Differs	217 x 221 x 42 mm	442 x 330 x 43 mm
Packaging contentidentical
Manual	Yes	Yes
Operational conditions3 differ
Operating temperature (T-T)Differs	0 - 50 °C	0 - 45 °C
Storage temperature (T-T)Differs	-30 - 60 °C	-10 - 55 °C
Relative humidityDiffers	5 - 95%	0 - 90%
Certificates1 differ
Certification	FCC, CE	FCC, CE
SafetyDiffers	UL, TUV/GS, LVD	UL, CUL, EN
Performanceidentical
Built-in processorKnown for one	NS-GX-30	Unknown — not stated by the source
Internal memoryKnown for one	32 MB	Unknown — not stated by the source
Flash memoryKnown for one	16 MB	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
