Product comparison · 2 gateways/controllers

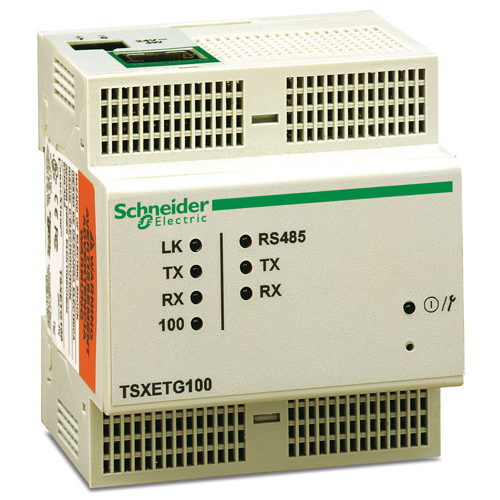

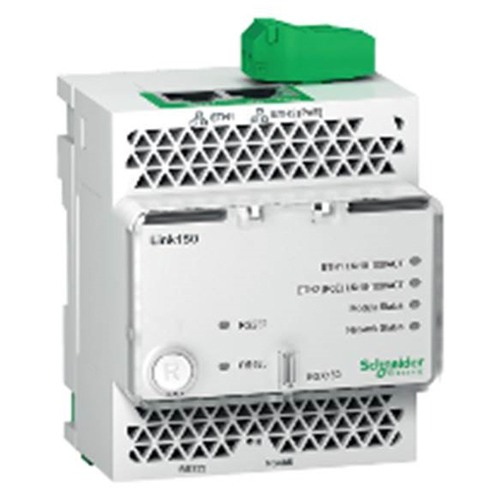

APC Link150 gateway/controller 10, 100 Mbit/s vs APC TSXETG100POE gateway/controller

6specifications compared
3differ
3identical
24known for one product only

Key differences

Supported network protocols
- Link150 gateway/controller 10, 100 Mbit/s:TCP/IP
- TSXETG100POE gateway/controller:Modbus, TCP/IP
Weight
- Link150 gateway/controller 10, 100 Mbit/s:175 g
- TSXETG100POE gateway/controller:230 g
Operating temperature (T-T)
- Link150 gateway/controller 10, 100 Mbit/s:-25 - 70 °C
- TSXETG100POE gateway/controller:0 - 55 °C

Side by side

Differences highlightedShow differences only

Comparison of Link150, TSXETG100POE
30 specifications	A APC Link150 gateway/controller 10, 100 Mbit/s Model Link150 View product	B APC TSXETG100POE gateway/controller Model TSXETG100POE View product
Designidentical
Product colourKnown for one	Grey	Unknown — not stated by the source
LED indicators	Yes	Yes
International Protection (IP) codeKnown for one	IP20, IP40	Unknown — not stated by the source
Performanceidentical
Control display unitKnown for one	No	Unknown — not stated by the source
Protocols1 differ
Management protocolsKnown for one	SMNP	Unknown — not stated by the source
Supported network protocolsDiffers	TCP/IP	Modbus, TCP/IP
Networkidentical
Ethernet LAN data ratesKnown for one	10,100 Mbit/s	Unknown — not stated by the source
Networking standardsKnown for one	IEEE 802.3, IEEE 802.3af, IEEE 802.3u	Unknown — not stated by the source
Wi-FiKnown for one	No	Unknown — not stated by the source
Cabling technologyKnown for one	Unknown — not stated by the source	10/100Base-T(X)
Securityidentical
Security algorithmsKnown for one	128-bit SSL	Unknown — not stated by the source
Ports & interfacesidentical
Ethernet LAN (RJ-45) portsKnown for one	2	Unknown — not stated by the source
Serial interface typeKnown for one	RS-232, RS-485	Unknown — not stated by the source
Management featuresidentical
Web-based managementKnown for one	Yes	Unknown — not stated by the source
Poweridentical
Power consumption (typical)Known for one	15 W	Unknown — not stated by the source
DC input voltageKnown for one	48 V	Unknown — not stated by the source
Power over Ethernet (PoE)Known for one	Yes	Unknown — not stated by the source
Weight & dimensions1 differ
DepthKnown for one	105 mm	Unknown — not stated by the source
HeightKnown for one	71 mm	Unknown — not stated by the source
WidthKnown for one	72 mm	Unknown — not stated by the source
WeightDiffers	175 g	230 g
Dimensions (WxDxH)Known for one	Unknown — not stated by the source	305 x 254 x 152 mm
Operational conditions1 differ
Operating temperature (T-T)Differs	-25 - 70 °C	0 - 55 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Storage relative humidity (H-H)Known for one	Unknown — not stated by the source	5 - 95%
Operating altitudeKnown for one	Unknown — not stated by the source	0 - 3000 m
Certificatesidentical
CertificationKnown for one	CUL us FCC Class A China RoHS CUL UL RCM CE AS/NZS 60950-1 IEC 60950-1 UL 61010-1 IEC 61000-6-2 CSA C22.2 No 60950-1 UL 60950-1 UL 61010-2-201	Unknown — not stated by the source
Packaging dataidentical
Package weightKnown for one	Unknown — not stated by the source	450 g
Technical detailsidentical
Package dimensions (WxDxH)Known for one	Unknown — not stated by the source	305 x 254 x 152 mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
