Product comparison · 2 gateways/controllers

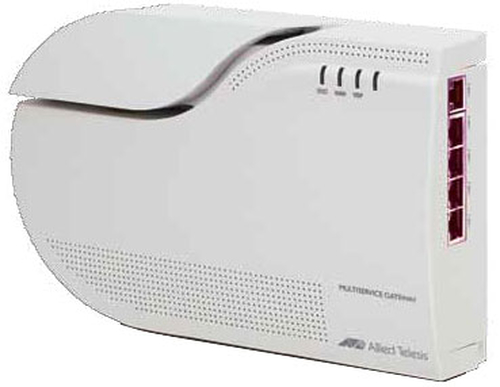

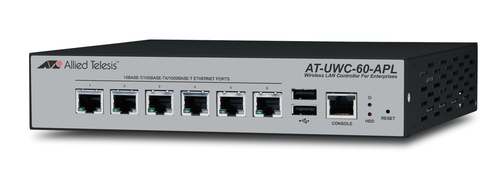

Allied Telesis AT-IMG1525 gateway/controller vs Allied Telesis UWC-60-APL gateway/controller

12specifications compared
9differ
3identical
18known for one product only

Key differences

Management protocols
- AT-IMG1525 gateway/controller:SNMP v1/v2, IGMP
- UWC-60-APL gateway/controller:SNMP v1, v2c, v3
Ethernet LAN (RJ-45) ports
- AT-IMG1525 gateway/controller:5
- UWC-60-APL gateway/controller:6
Power consumption (typical)
- AT-IMG1525 gateway/controller:18 W
- UWC-60-APL gateway/controller:35 W
Weight
- AT-IMG1525 gateway/controller:400 g
- UWC-60-APL gateway/controller:1.5 kg
Dimensions (WxDxH)
- AT-IMG1525 gateway/controller:240 x 150 x 45 mm
- UWC-60-APL gateway/controller:210 x 210 x 42 mm
Storage temperature (T-T)
- AT-IMG1525 gateway/controller:-20 - 70 °C
- UWC-60-APL gateway/controller:-10 - 70 °C

Side by side

Differences highlightedShow differences only

Comparison of AT-IMG1525, UWC-60-APL
30 specifications	A Allied Telesis AT-IMG1525 gateway/controller Model AT-IMG1525 View product	B Allied Telesis UWC-60-APL gateway/controller Model UWC-60-APL View product
Design1 differ
Mounting typeKnown for one	Unknown — not stated by the source	Rack mounting
LED indicatorsDiffers	Activity, LAN, Link, Power, WLAN	Yes
Protocols1 differ
Management protocolsDiffers	SNMP v1/v2, IGMP	SNMP v1, v2c, v3
DHCP clientKnown for one	Unknown — not stated by the source	Yes
Routing protocolsKnown for one	RIP-1, RIP-2	Unknown — not stated by the source
Supported network protocolsKnown for one	PPPoE	Unknown — not stated by the source
Network1 differ
Networking standardsDiffers	IEEE 802.1q, IEEE 802.3ah	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technologyKnown for one	10/100/1000Base-T(X)	Unknown — not stated by the source
Securityidentical
Security algorithmsKnown for one	Unknown — not stated by the source	EAP, EAP-AKA, EAP-FAST, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
DoS attack preventionKnown for one	Unknown — not stated by the source	Yes
MAC address filteringKnown for one	Yes	Unknown — not stated by the source
Authentication methodKnown for one	PAP/CHAP	Unknown — not stated by the source
Firewall securityKnown for one	Yes	Unknown — not stated by the source
Ports & interfaces1 differ
USB 2.0 ports quantity	2	2
Ethernet LAN (RJ-45) portsDiffers	5	6
WAN connectionKnown for one	Unknown — not stated by the source	Ethernet (RJ-45)
InterfaceKnown for one	2 x VoIP FXS RJ-11	Unknown — not stated by the source
Management featuresidentical
Quality of Service (QoS) supportKnown for one	Unknown — not stated by the source	Yes
Power1 differ
Power consumption (typical)Differs	18 W	35 W
Input voltage	100 - 240 V	100 - 240 V
Input frequencyKnown for one	Unknown — not stated by the source	47 - 63 Hz
Weight & dimensions2 differ
WeightDiffers	400 g	1.5 kg
Dimensions (WxDxH)Differs	240 x 150 x 45 mm	210 x 210 x 42 mm
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)Differs	-20 - 70 °C	-10 - 70 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	20 - 90%
Storage relative humidity (H-H)Known for one	Unknown — not stated by the source	20 - 90%
Certificates1 differ
CertificationDiffers	IEC, UL, CAN/CSA, EMC	CCC CE cULus EAC FCC IC KC RCM T U V-T
SafetyKnown for one	Unknown — not stated by the source	CSA C22.2 No. 60950-1-07, IEC 60950-1, EN 60950-1
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	85176990

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
