Product comparison · 2 data projectors

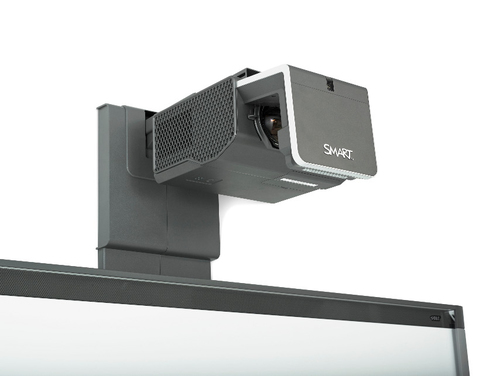

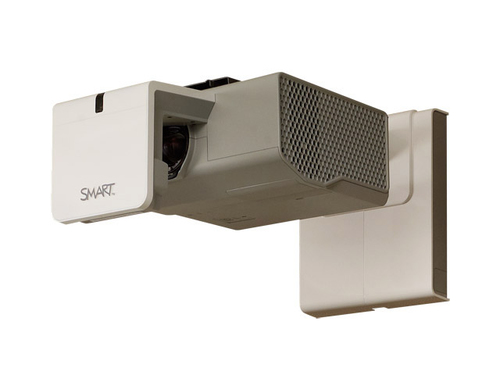

SMART Technologies LightRaise 40wi vs SMART Technologies UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White

45specifications compared
11differ
34identical
27known for one product only

Key differences

Projector native resolution
- LightRaise 40wi:WXGA (1280x800)
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:XGA (1024x768)
Native aspect ratio
- LightRaise 40wi:16:10
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:4:3
Supported aspect ratios
- LightRaise 40wi:4:3, 16:9, 16:10
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:4:3, 5:4, 16:9, 16:10
VGA (D-Sub) ports quantity
- LightRaise 40wi:3
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:2
Component video (YPbPr/YCbCr) in
- LightRaise 40wi:0
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:1
Audio (L/R) in
- LightRaise 40wi:2
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:1
Product colour
- LightRaise 40wi:Grey
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:Black, White
Power source
- LightRaise 40wi:AC/Battery
- UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White:AC

Side by side

Differences highlightedShow differences only

Comparison of LightRaise 40wi, UF75
72 specifications	A SMART Technologies LightRaise 40wi View product	B SMART Technologies UF75 data projector Short throw projector 2500 ANSI lumens DLP XGA (1024x768) 3D Black, White Model UF75 View product
Projector3 differ
Projector brightness	2500 ANSI lumens	2500 ANSI lumens
Projection technology	DLP	DLP
Projector native resolutionDiffers	WXGA (1280x800)	XGA (1024x768)
Contrast ratio (typical)	2900:1	2900:1
Native aspect ratioDiffers	16:10	4:3
Supported aspect ratiosDiffers	4:3, 16:9, 16:10	4:3, 5:4, 16:9, 16:10
Digital gamma correction	Yes	Yes
Keystone correction, verticalKnown for one	-40 - 40°	Unknown — not stated by the source
Light sourceidentical
Light source type	Lamp	Lamp
Service life of light source	2500 h	2500 h
Service life of light source (economic mode)	4000 h	4000 h
Lamp power	230 W	230 W
Lamp power (economic mode)	190 W	190 W
Lamps quantityKnown for one	1 lamp(s)	Unknown — not stated by the source
Lens systemidentical
Throw ratioKnown for one	0.3:1	Unknown — not stated by the source
Videoidentical
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HD	No	No
HD-ReadyKnown for one	Yes	Unknown — not stated by the source
3D Ready	Yes	Yes
Supported graphics resolutionsKnown for one	1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 320 x 288 (QVGA), 640 x 480 (VGA), 800 x 600 (SVGA)	Unknown — not stated by the source
Supported video modesKnown for one	1080i, 720p	Unknown — not stated by the source
3DKnown for one	Unknown — not stated by the source	Yes
Ports & interfaces3 differ
VGA (D-Sub) ports quantityDiffers	3	2
HDMI ports quantity	1	1
Component video (YPbPr/YCbCr) inDiffers	0	1
Composite video in	1	1
DVI port	No	No
S-Video inputs quantity	1	1
Audio (L/R) inDiffers	2	1
Headphone outputs	1	1
Serial interface typeKnown for one	RS-232	Unknown — not stated by the source
USB 2.0 ports quantityKnown for one	Unknown — not stated by the source	1
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN (RJ-45) ports	1	1
Wi-Fi	No	No
Storageidentical
Card reader integrated	No	No
Featuresidentical
Noise level	36 dB	36 dB
Noise level (economic mode)Known for one	31 dB	Unknown — not stated by the source
HDCP	Yes	Yes
Preset modesKnown for one	sRGB	Unknown — not stated by the source
CertificationKnown for one	EIP, WEEE CB (TUV), CCC, CE, C-Tick, FCC, GOST-R, KC, PSB, PSE, TUV-GS, UL, VCCI	Unknown — not stated by the source
Multimediaidentical
Built-in speaker(s)Known for one	Yes	Unknown — not stated by the source
Number of built-in speakersKnown for one	1	Unknown — not stated by the source
RMS rated powerKnown for one	10 W	Unknown — not stated by the source
Design1 differ
Product type	Short throw projector	Short throw projector
Market positioning	Short throw	Short throw
Product colourDiffers	Grey	Black, White
PlacementKnown for one	Ceiling	Unknown — not stated by the source
Power1 differ
Power sourceDiffers	AC/Battery	AC
Power consumption (typical)Known for one	290 W	Unknown — not stated by the source
Power consumption (standby)Known for one	1 W	Unknown — not stated by the source
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Battery life (max)Known for one	20 h	Unknown — not stated by the source
Charging timeKnown for one	2.5 h	Unknown — not stated by the source
Batteryidentical
Battery technologyKnown for one	Lithium-Ion (Li-Ion)	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)	5 - 35 °C	5 - 35 °C
Storage temperature (T-T)Known for one	-20 - 50 °C	Unknown — not stated by the source
Operating altitudeKnown for one	0 - 1800 m	Unknown — not stated by the source
Weight & dimensions3 differ
Weight	7.7 kg	7.7 kg
Width	356 mm	356 mm
DepthDiffers	686 mm	711 mm
HeightDiffers	320 mm	394 mm
Package width	508 mm	508 mm
Package depth	610 mm	610 mm
Package height	394 mm	394 mm
Package weightDiffers	15.9 kg	14.5 kg
Packaging contentidentical
Remote control included	Yes	Yes
Technical detailsidentical
Compliance certificatesKnown for one	RoHS	Unknown — not stated by the source
Other featuresidentical
Colour temperatureKnown for one	6500 K	Unknown — not stated by the source
RS-232 portsKnown for one	1	Unknown — not stated by the source
Displayidentical
Built-in displayKnown for one	Unknown — not stated by the source	No

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
