Product comparison · 2 data projectors

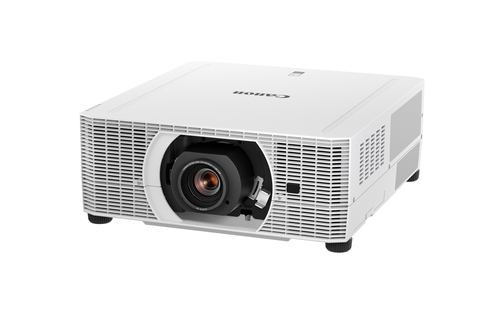

Canon XEED WUX6600Z Large venue projector 6600 ANSI lumens LCOS WUXGA (1920x1200) White vs Canon XEED WUX6700 Large venue projector 6700 ANSI lumens LCOS WUXGA (1920x1200) White

Add a product
  • 74specifications compared
  • 9differ
  • 65identical
  • 11known for one product only

Key differences

  • Projector brightness
    • 6600 ANSI lumens
    • 6700 ANSI lumens
  • Contrast ratio (typical)
    • 4000:1
    • 2000:1
  • Heat dissipation
    • 1790 BTU/h
    • 1694 BTU/h
  • Light source type
    • Laser
    • Lamp
  • Noise level
    • 36 dB
    • 37 dB
  • Noise level (economic mode)
    • 32 dB
    • 29 dB
  • Power consumption (typical)
    • 525 W
    • 497 W
  • Weight
    • 17 kg
    • 13 kg

Side by side

Differences highlightedShow differences only
85 specifications
A

Canon

XEED WUX6600Z Large venue projector 6600 ANSI lumens LCOS WUXGA (1920x1200) White

Model WUX6600Z

View product
B

Canon

XEED WUX6700 Large venue projector 6700 ANSI lumens LCOS WUXGA (1920x1200) White

Model WUX6700

View product
Projector3 differ
Projector brightnessDiffers6600 ANSI lumens6700 ANSI lumens
Projection technologyLCOSLCOS
Projector native resolutionWUXGA (1920x1200)WUXGA (1920x1200)
Contrast ratio (typical)Differs4000:12000:1
Native aspect ratio16:1016:10
Screen size compatibility1016 - 15240 mm (40 - 600")1016 - 15240 mm (40 - 600")
Projection distance0.44 - 89 m0.44 - 89 m
Projector brightness (economic mode)Known for one4620 ANSI lumens
Uniformity90%90%
Horizontal scan range15.625 - 75 kHz15.625 - 75 kHz
Vertical scan range24 - 60 Hz24 - 60 Hz
Keystone correction, horizontal-20 - 20°-20 - 20°
Keystone correction, vertical-20 - 20°-20 - 20°
Matrix size1.8 cm (0.71")1.8 cm (0.71")
Matrix type3-panel (p-Si TFT active)3-panel (p-Si TFT active)
Heat dissipationDiffers1790 BTU/h1694 BTU/h
Light source1 differ
Light source typeDiffersLaserLamp
Service life of light sourceKnown for one3000 h
Service life of light source (economic mode)Known for one4000 h
Lamp powerKnown for one430 W
Lamps quantityKnown for one1 lamp(s)
Lens systemidentical
FocusAutoAuto
Focal length range23 - 34.5 mm23 - 34.5 mm
Aperture range (F-F)1.89 - 2.651.89 - 2.65
Zoom capabilityKnown for oneYes
Zoom typeKnown for oneAuto
Digital zoom12x12x
Optical zoom1.5x1.5x
Throw ratio1.49 - 2.24:11.49 - 2.24:1
Horizontal lens shift range-10 - 10%-10 - 10%
Vertical lens shift range-15 - 55%-15 - 55%
Videoidentical
Full HDYesYes
3DNoNo
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video colour modesCinema, Dynamic, Photo, Presentation, sRGBCinema, Dynamic, Photo, Presentation, sRGB
Ports & interfacesidentical
VGA (D-Sub) ports quantity11
HDMI ports quantity11
HDMI connector typeFull-sizeFull-size
Component video (YPbPr/YCbCr) in00
Composite video in00
DVI portYesYes
DisplayPorts quantity11
S-Video inputs quantity00
HDBaseT portKnown for oneYes
USB 2.0 ports quantity11
Audio (L/R) in00
Serial interface typeRS-232RS-232
PC Audio inYesYes
PC Audio outYesYes
AC (power) inYesYes
Networkidentical
Ethernet LANYesYes
Ethernet LAN (RJ-45) ports11
Ethernet LAN data ratesKnown for one10,100,1000 Mbit/s
Wi-FiYesYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)802.11b, 802.11g, Wi-Fi 4 (802.11n)
Smart TVKnown for oneNo
Storageidentical
Card reader integratedNoNo
Features2 differ
Noise levelDiffers36 dB37 dB
Noise level (economic mode)Differs32 dB29 dB
Multimediaidentical
Built-in speaker(s)YesYes
Number of built-in speakers11
RMS rated power1 W1 W
Image formats supportedJPEGJPEG
Designidentical
Product typeLarge venue projectorLarge venue projector
Product colourWhiteWhite
PlacementDesktop, CeilingDesktop, Ceiling
Displayidentical
Built-in displayNoNo
Power1 differ
Power sourceACAC
Power consumption (typical)Differs525 W497 W
Power consumption (standby)2 W2 W
Power consumption (PowerSave)394 W394 W
AC input voltage100 - 240 V100 - 240 V
AC input frequency50 - 60 Hz50 - 60 Hz
Operational conditionsidentical
Operating temperature (T-T)0 - 40 °C0 - 40 °C
Storage temperature (T-T)-20 - 60 °C-20 - 60 °C
Operating relative humidity (H-H)20 - 85%20 - 85%
Weight & dimensions2 differ
WeightDiffers17 kg13 kg
Width480 mm480 mm
DepthDiffers545 mm515 mm
Height196 mm196 mm
Packaging contentidentical
Remote control includedYesYes
Remote control typeIRIR
Logistics dataidentical
Harmonized System (HS) codeKnown for one85286200
Other featuresidentical
RS-232 ports11

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
