Product comparison · 2 data projectors

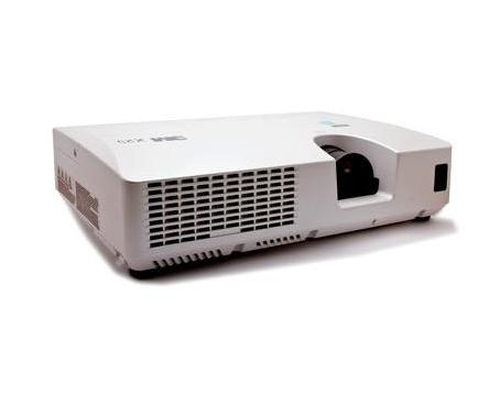

3M MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White vs 3M X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White

35specifications compared
23differ
12identical
62known for one product only

Key differences

Projector brightness
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:300 ANSI lumens
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:2700 ANSI lumens
Projector native resolution
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:WXGA (1280x800)
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:XGA (1024x768)
Screen size compatibility
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:431.8 - 2540 mm (17 - 100")
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:762 - 7620 mm (30 - 300")
Light source type
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:LED
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:Lamp
Service life of light source
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:20000 h
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:3000 h
VGA (D-Sub) ports quantity
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:0
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:3
Component video (YPbPr/YCbCr) in
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:0
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:1
Composite video in
- MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White:0
- X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White:1

Side by side

Differences highlightedShow differences only

Comparison of MP410, X21i
97 specifications	A 3M MP410 Standard throw projector 300 ANSI lumens WXGA (1280x800) Grey, White Model MP410 View product	B 3M X21i Standard throw projector 2700 ANSI lumens LCD XGA (1024x768) White Model X21i View product
Projector3 differ
Projector brightnessDiffers	300 ANSI lumens	2700 ANSI lumens
Projection technologyKnown for one	Unknown — not stated by the source	LCD
Projector native resolutionDiffers	WXGA (1280x800)	XGA (1024x768)
Contrast ratio (typical)Known for one	Unknown — not stated by the source	2000:1
Native aspect ratioKnown for one	Unknown — not stated by the source	4:3
Supported aspect ratiosKnown for one	Unknown — not stated by the source	4:3, 14:9, 16:9
Screen size compatibilityDiffers	431.8 - 2540 mm (17 - 100")	762 - 7620 mm (30 - 300")
Number of coloursKnown for one	Unknown — not stated by the source	16.78 million colours
Horizontal scan rangeKnown for one	Unknown — not stated by the source	31.5 - 106 kHz
Vertical scan rangeKnown for one	Unknown — not stated by the source	56 - 120 Hz
Keystone correction, verticalKnown for one	Unknown — not stated by the source	-30 - 30°
Matrix sizeKnown for one	Unknown — not stated by the source	1.6 cm (0.63")
Matrix typeKnown for one	Unknown — not stated by the source	3-panel (p-Si TFT active)
Light source2 differ
Light source typeDiffers	LED	Lamp
Service life of light sourceDiffers	20000 h	3000 h
Service life of light source (economic mode)Known for one	Unknown — not stated by the source	5000 h
Lamp typeKnown for one	Unknown — not stated by the source	UHP
Lamp powerKnown for one	Unknown — not stated by the source	215 W
Lamp power (economic mode)Known for one	Unknown — not stated by the source	140 W
Lens systemidentical
Focal length rangeKnown for one	Unknown — not stated by the source	19 - 23 mm
Aperture range (F-F)Known for one	Unknown — not stated by the source	1.67 - 1.91
Zoom ratioKnown for one	Unknown — not stated by the source	1.2:1
Throw ratioKnown for one	Unknown — not stated by the source	1.5 - 1.8:1
Video1 differ
Analog signal format systemKnown for one	Unknown — not stated by the source	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HD	No	No
3D	No	No
Supported graphics resolutionsDiffers	1280 x 800 (WXGA), 1920 x 1080 (HD 1080)	1024 x 768 (XGA), 1600 x 1200 (UXGA)
Supported video modesKnown for one	Unknown — not stated by the source	1080i, 480i, 480p, 576i, 720p
Ports & interfaces6 differ
VGA (D-Sub) ports quantityDiffers	0	3
HDMI ports quantity	1	1
Component video (YPbPr/YCbCr) inDiffers	0	1
Composite video inDiffers	0	1
DVI port	No	No
DisplayPorts quantityKnown for one	Unknown — not stated by the source	0
S-Video inputs quantityDiffers	0	1
USB 2.0 ports quantityDiffers	1	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityKnown for one	Unknown — not stated by the source	0
Audio (L/R) in	0	0
Audio (L/R) outKnown for one	Unknown — not stated by the source	0
Headphone outputsKnown for one	Unknown — not stated by the source	0
Microphone inKnown for one	Unknown — not stated by the source	No
Serial interface typeKnown for one	Unknown — not stated by the source	RS-232
PC Audio in	Yes	Yes
PC Audio outKnown for one	Unknown — not stated by the source	Yes
AUX inKnown for one	Unknown — not stated by the source	No
USB connector typeDiffers	USB Type-A	USB Type-A, USB Type-B
Composite video outKnown for one	Unknown — not stated by the source	0
BNC input portsKnown for one	Unknown — not stated by the source	0
AV outputKnown for one	Unknown — not stated by the source	No
CardBus PCMCIA slot typeKnown for one	Unknown — not stated by the source	No
Digital audio optical outKnown for one	Unknown — not stated by the source	0
Progressive scan outputKnown for one	Unknown — not stated by the source	No
AC (power) inKnown for one	Unknown — not stated by the source	Yes
Network2 differ
Ethernet LANDiffers	No	Yes
Ethernet LAN (RJ-45) portsDiffers	0	1
Wi-FiKnown for one	Unknown — not stated by the source	No
BluetoothKnown for one	Unknown — not stated by the source	No
Storage1 differ
Card reader integratedDiffers	Yes	No
Compatible memory cardsKnown for one	microSDHC	Unknown — not stated by the source
Maximum memory card sizeKnown for one	32 GB	Unknown — not stated by the source
Internal storage capacityKnown for one	1 GB	Unknown — not stated by the source
Featuresidentical
Noise levelKnown for one	Unknown — not stated by the source	37 dB
Noise level (economic mode)Known for one	Unknown — not stated by the source	30 dB
CertificationKnown for one	Unknown — not stated by the source	cUL, FCC-15 B, CE
Multimediaidentical
Built-in speaker(s)	Yes	Yes
Number of built-in speakers	1	1
RMS rated power	1 W	1 W
Video formats supportedKnown for one	AVI, DIVX, MKV, MOV, MP4, WMV	Unknown — not stated by the source
Image formats supportedKnown for one	BMP, JPG	Unknown — not stated by the source
Audio formats supportedKnown for one	MP1, MP2, MP3, WMA	Unknown — not stated by the source
Design1 differ
Product type	Standard throw projector	Standard throw projector
Product colourDiffers	Grey, White	White
PlacementKnown for one	Unknown — not stated by the source	Desktop, Ceiling
Market positioningKnown for one	Portable	Unknown — not stated by the source
Cable lock slotKnown for one	Yes	Unknown — not stated by the source
Cable lock slot typeKnown for one	Kensington	Unknown — not stated by the source
Displayidentical
Built-in display	No	No
Power1 differ
Power sourceDiffers	DC	AC
Power consumption (typical)Known for one	Unknown — not stated by the source	320 W
Power consumption (standby)Known for one	Unknown — not stated by the source	0.4 W
AC input voltageKnown for one	Unknown — not stated by the source	220 - 240 V
AC input frequencyKnown for one	Unknown — not stated by the source	50 - 60 Hz
Auto power offKnown for one	Unknown — not stated by the source	Yes
Operational conditionsidentical
Operating temperature (T-T)Known for one	Unknown — not stated by the source	5 - 35 °C
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-20 - 60 °C
Operating altitudeKnown for one	Unknown — not stated by the source	0 - 1600 m
Weight & dimensions4 differ
WeightDiffers	375 g	2.2 kg
WidthDiffers	106 mm	306 mm
DepthDiffers	105 mm	221 mm
HeightDiffers	39 mm	77 mm
Packaging content1 differ
Remote control includedDiffers	No	Yes
Cables included	AC, VGA	AC, VGA
ManualKnown for one	Yes	Unknown — not stated by the source
Quick start guideKnown for one	Yes	Unknown — not stated by the source
Other features1 differ
RS-232 portsDiffers	0	1
Aspect ratioKnown for one	16:9	Unknown — not stated by the source
Connectivity technologyKnown for one	Wired	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
