Product comparison · 2 computer cooling systems

StarTech.com 1U Low Profile vs StarTech.com 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black

22specifications compared
16differ
6identical
11known for one product only

Key differences

Fan diameter
- 1U Low Profile:7 cm
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:9.2 cm
Supported processor sockets
- 1U Low Profile:LGA 775 (Socket T)
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:Socket 754, Socket 939
Rotational speed (max)
- 1U Low Profile:4500 RPM
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:2600 RPM
Noise level (high speed)
- 1U Low Profile:39 dB
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:28 dB
Width
- 1U Low Profile:95 mm
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:92 mm
Depth
- 1U Low Profile:95 mm
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:105 mm
Height
- 1U Low Profile:24 mm
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:55 mm
Weight
- 1U Low Profile:493 g
- 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black:290 g

Side by side

Differences highlightedShow differences only

Comparison of FAN7751U, FANK8AM2

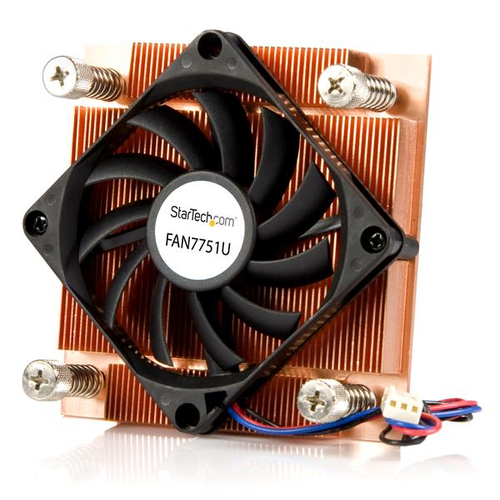

33 specifications	A StarTech.com 1U Low Profile Model FAN7751U View product	B StarTech.com 92x25mm AMD Ball Bearing CPU Cooler Fan w/ TX3 Connector - Processor cooler - ( Socket 940, Socket 939, Socket AM2 ) - aluminum - black Model FANK8AM2 View product
Performance4 differ
Suitable location	Processor	Processor
Type	Cooler	Cooler
Fan diameterDiffers	7 cm	9.2 cm
Supported processor socketsDiffers	LGA 775 (Socket T)	Socket 754, Socket 939
Rotational speed (max)Differs	4500 RPM	2600 RPM
Noise level (high speed)Differs	39 dB	28 dB
Maximum airflowKnown for one	30.79 cfm	Unknown — not stated by the source
Mean time between failures (MTBF)Known for one	50000 h	Unknown — not stated by the source
Compatible processor seriesKnown for one	Unknown — not stated by the source	AMD Athlon, AMD Sempron
Designidentical
Product colour	Black	Black
Number of fans	1 fan(s)	1 fan(s)
CertificationKnown for one	CE, RoSH	Unknown — not stated by the source
MaterialKnown for one	Unknown — not stated by the source	Aluminium
Poweridentical
Voltage	12 V	12 V
Weight & dimensions9 differ
WidthDiffers	95 mm	92 mm
DepthDiffers	95 mm	105 mm
HeightDiffers	24 mm	55 mm
WeightDiffers	493 g	290 g
Fan dimensions (W x D x H)Differs	70 x 70 x 10 mm	92 x 92 x 25 mm
Package widthDiffers	120 mm	80 mm
Package depthDiffers	220 mm	124 mm
Package heightDiffers	80 mm	224 mm
Package weightDiffers	600 g	360 g
Technical detailsidentical
Compliance certificates	RoHS	RoHS
Other features3 differ
Heatsink dimensions (W x D x H)Known for one	91 x 91 x 14 mm	Unknown — not stated by the source
Connector(s)Known for one	1 - TX3 F	Unknown — not stated by the source
Dimensions (WxDxH)Differs	95 x 95 x 24 mm	92 x 105 x 55 mm
Power requirementsDiffers	12V	12 V
Rotational speedDiffers	4500 RPM	2600 RPM
AirflowKnown for one	30.79	Unknown — not stated by the source
Heat sink dimensionsKnown for one	91 x 91 x 14 mm	Unknown — not stated by the source
Product lifeKnown for one	50000 h	Unknown — not stated by the source
Electrical input connectionKnown for one	Unknown — not stated by the source	TX3

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
