Product comparison · 2 av receivers

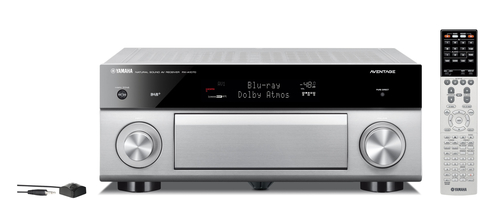

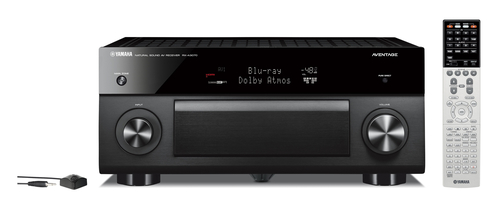

Yamaha RX-A1070 AV receiver 7.2 channels Surround 3D Silver vs Yamaha RX-A3070 AV receiver

44specifications compared
9differ
35identical
24known for one product only

Key differences

Audio output channels
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:7.2 channels
- RX-A3070 AV receiver:9.2 channels
Dynamic power per channel (4 Ohm)
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:210 W
- RX-A3070 AV receiver:295 W
Dynamic power per channel (8 Ohm)
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:135 W
- RX-A3070 AV receiver:175 W
Pre-out channels
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:7.2
- RX-A3070 AV receiver:11.2
Audio (L/R) in
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:9
- RX-A3070 AV receiver:10
Product colour
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:Silver
- RX-A3070 AV receiver:Black
Depth
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:439 mm
- RX-A3070 AV receiver:473 mm
Height
- RX-A1070 AV receiver 7.2 channels Surround 3D Silver:182 mm
- RX-A3070 AV receiver:190.5 mm

Side by side

Differences highlightedShow differences only

Comparison of RX-A1070, RX-A3070
68 specifications	A Yamaha RX-A1070 AV receiver 7.2 channels Surround 3D Silver Model RX-A1070 View product	B Yamaha RX-A3070 AV receiver Model RX-A3070 View product
Audio4 differ
Audio output channelsDiffers	7.2 channels	9.2 channels
Receiver type	Surround	Surround
Power output per channel (1KHz@8 Ohm)Known for one	120 W	Unknown — not stated by the source
Dynamic power per channel (4 Ohm)Differs	210 W	295 W
Dynamic power per channel (8 Ohm)Differs	135 W	175 W
Total Harmonic Distortion (THD)Known for one	10%	Unknown — not stated by the source
Pre-out channelsDiffers	7.2	11.2
Pre-out connectivity	Yes	Yes
Signal-to-Noise Ratio (SNR)Known for one	120 dB	Unknown — not stated by the source
Power output per channel (20-20KHz@8 Ohm)Known for one	Unknown — not stated by the source	150 W
Inputs1 differ
HDMI in	8	8
Component video (YPbPr/YCbCr) in	2	2
Composite video in	4	4
Audio (L/R) inDiffers	9	10
Digital audio optical in	3	3
Digital audio coaxial in	3	3
Remote (IR) inputKnown for one	1	Unknown — not stated by the source
Ethernet LAN (RJ-45) portsKnown for one	1	Unknown — not stated by the source
USB ports quantity	1	1
Outputsidentical
Number of HDMI outputs	2	2
Remote (IR) outputKnown for one	1	Unknown — not stated by the source
Headphone outputs	1	1
Component video (YPbPr/YCbCr) outKnown for one	Unknown — not stated by the source	0
Composite video outKnown for one	Unknown — not stated by the source	0
Audio (L/R) outKnown for one	Unknown — not stated by the source	0
Digital audio optical outKnown for one	Unknown — not stated by the source	0
Digital audio coaxial outKnown for one	Unknown — not stated by the source	0
Ports & interfacesidentical
12V trigger	Yes	Yes
12V trigger ports quantity	2	2
Phono inputs (RCA)	1	1
RS-232 portsKnown for one	Unknown — not stated by the source	1
File formatsidentical
Audio formats supportedKnown for one	AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA	Unknown — not stated by the source
Networkidentical
Ethernet LAN	Yes	Yes
Wi-Fi	Yes	Yes
Bluetooth	Yes	Yes
Radioidentical
Supported radio bands	AM, FM	AM, FM
Internet radioKnown for one	Yes	Unknown — not stated by the source
Internet radio services supportedKnown for one	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal	Unknown — not stated by the source
Optical driveidentical
Optical drive included	No	No
Videoidentical
3DKnown for one	Yes	Unknown — not stated by the source
Video upscalingKnown for one	Unknown — not stated by the source	Yes
Technical details1 differ
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Deep colour support	Yes	Yes
x.v.Color support	Yes	Yes
Audio Return Channel (ARC)	Yes	Yes
DSP programs quantity	24	24
Digital Signal Processing (DSP)	Yes	Yes
AirPlay	Yes	Yes
Audio Lip synchronizationKnown for one	Yes	Unknown — not stated by the source
Audio amplifier	Yes	Yes
Auto standby	Yes	Yes
Bi-amping	Yes	Yes
Digital Living Network Alliance (DLNA) certifiedKnown for one	Yes	Unknown — not stated by the source
ECO mode	Yes	Yes
HDCP	Yes	Yes
HDCP version	2.2	2.2
On Screen Display (OSD)	Yes	Yes
Product colourDiffers	Silver	Black
RS-232 interfaceKnown for one	Yes	Unknown — not stated by the source
Remote control included	Yes	Yes
Multi-Zone capabilityKnown for one	Unknown — not stated by the source	Yes
Multi-Zone quantityKnown for one	Unknown — not stated by the source	4
Graphical user interface (GUI)Known for one	Unknown — not stated by the source	Yes
Poweridentical
Power consumption (standby)	0.1 W	0.1 W
Weight & dimensions3 differ
Width	435 mm	435 mm
DepthDiffers	439 mm	473 mm
HeightDiffers	182 mm	190.5 mm
WeightDiffers	14.9 kg	18.1 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
